ABB 07DC92 GJR5252400R0101 Digital I/O Module Fast Shipping!

Frequently Asked Questions (FAQ)

How many I/O channels does the 07DC92 module support?
The module supports 32 configurable digital channels, which can function individually as inputs, outputs, or re-readable outputs.

Can each I/O group be isolated from the others?
Yes, the module provides electrical isolation between the four I/O groups and also from the rest of the unit and the CS31 system bus.

What is the rated output current per channel?
Each output channel is rated for 500 mA. The total maximum current per group is 4 A.

How is addressing configured on the 07DC92 module?
Addressing is configured using a DIL switch located under a sliding cover on the right side of the housing.

What happens if there is a short circuit on an output?
The module automatically limits the current, disables the output, and indicates the fault with a flashing LED. After the issue is corrected, the output is re-enabled automatically.

Is it necessary to supply voltage to the UPx terminals if all channels are used as inputs?
No, if all channels in a group are configured as inputs, supplying voltage to UPx is not required.

How is diagnostic information accessed on the module?
Diagnostic information can be accessed using the test button on the front panel. LEDs indicate error type and location.

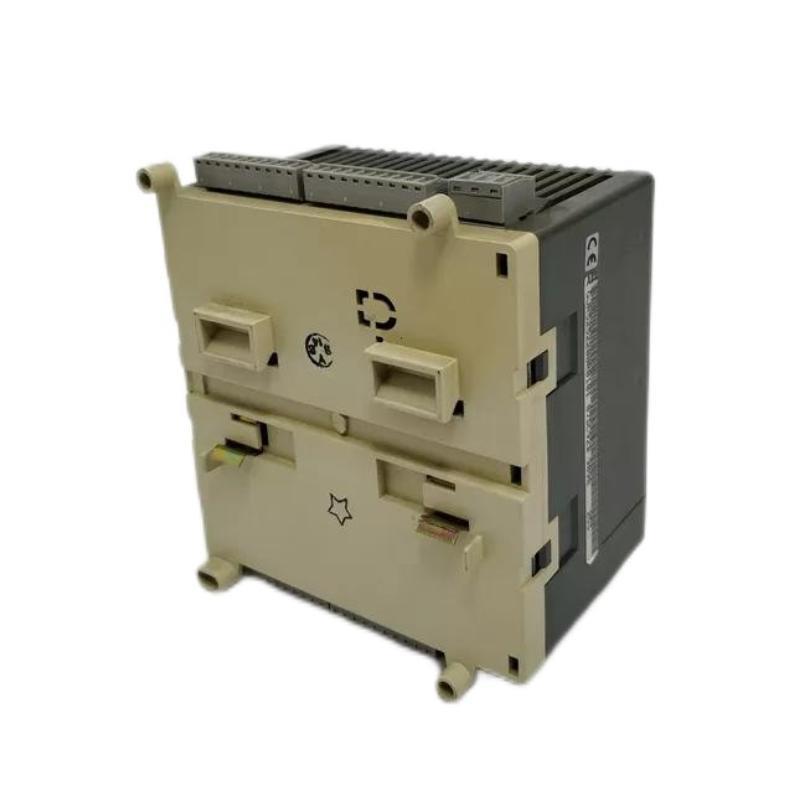

What mounting options are available for the 07DC92 module?
The module can be mounted either on a DIN rail (15 mm height) or using 4 M4 screws.
