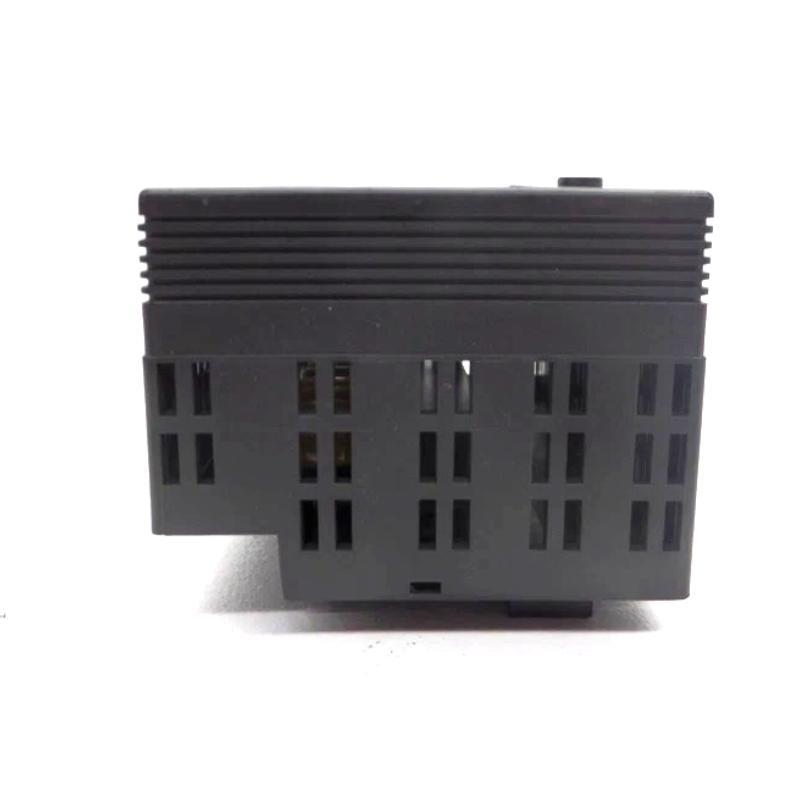

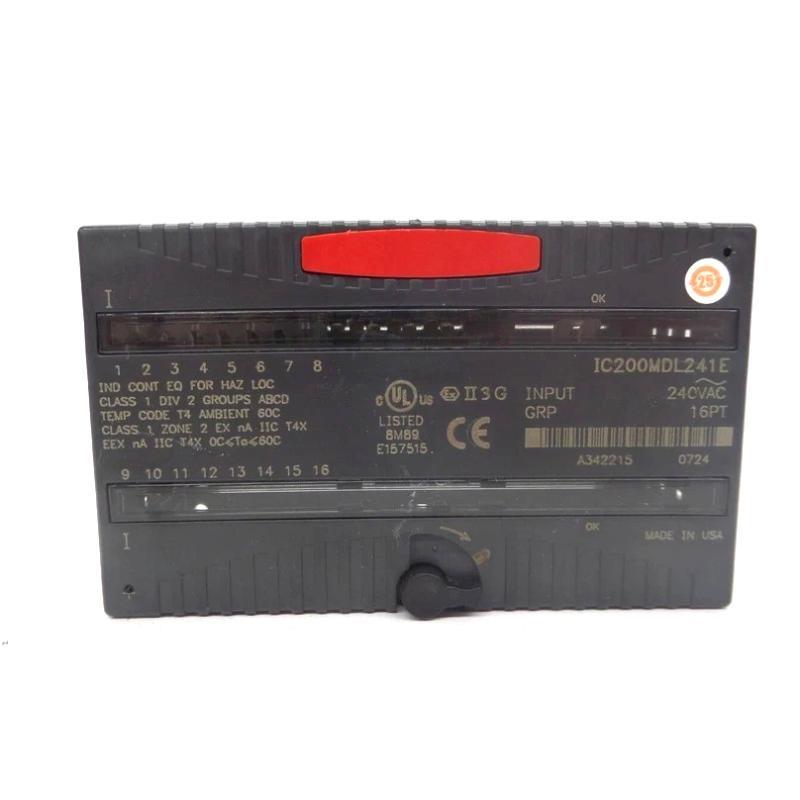

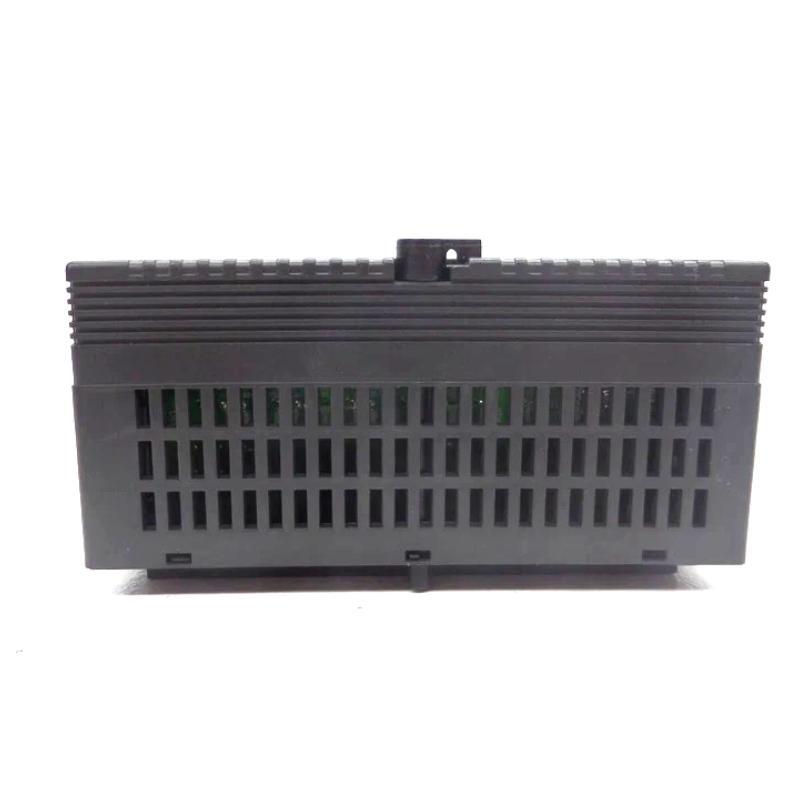

GE IC200MDL241E VersaMax AC Discrete Input Module Fast Shipping!

Frequently Asked Questions (FAQ)

What is the voltage input range of the IC200MDL241E module?
The module supports an input range from 0 to 264 VAC, with a nominal input of 240 VAC.

How many input points are available on this module?
The IC200MDL241E provides 16 discrete input points, arranged in 2 isolated groups of 8.

Is this module hot-swappable during operation?
Yes, the IC200MDL241E supports hot swap, allowing the module to be replaced without shutting down the system.

What kind of logic does this module use for its inputs?
It uses positive logic (sourcing-type), meaning current flows from the input device to the module.

What is the isolation rating between input logic and ground?
It provides 250 VAC continuous isolation and is tested to 1500 VAC for 1 minute between logic and frame ground.

What are the recommended operating temperatures?
The module operates in ambient temperatures from 0°C to 60°C, without the need for thermal derating.

Are LED indicators included for status monitoring?
Yes, each input point has a green LED for on/off status, and an additional OK LED indicates backplane power.

Is external power needed for the module’s operation?
No, the IC200MDL241E receives its power from the backplane, eliminating the need for an external supply.
