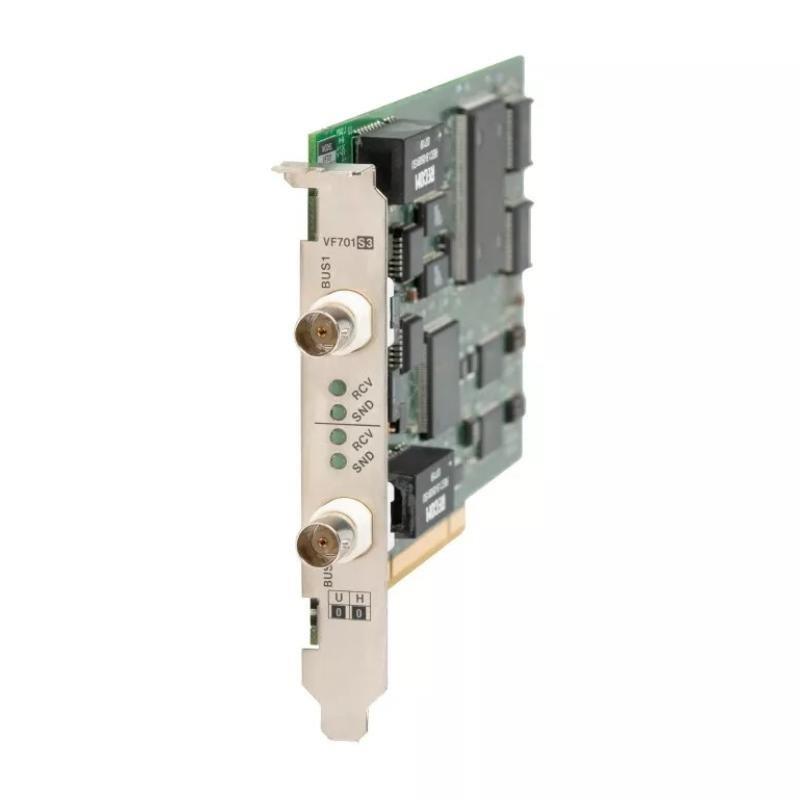

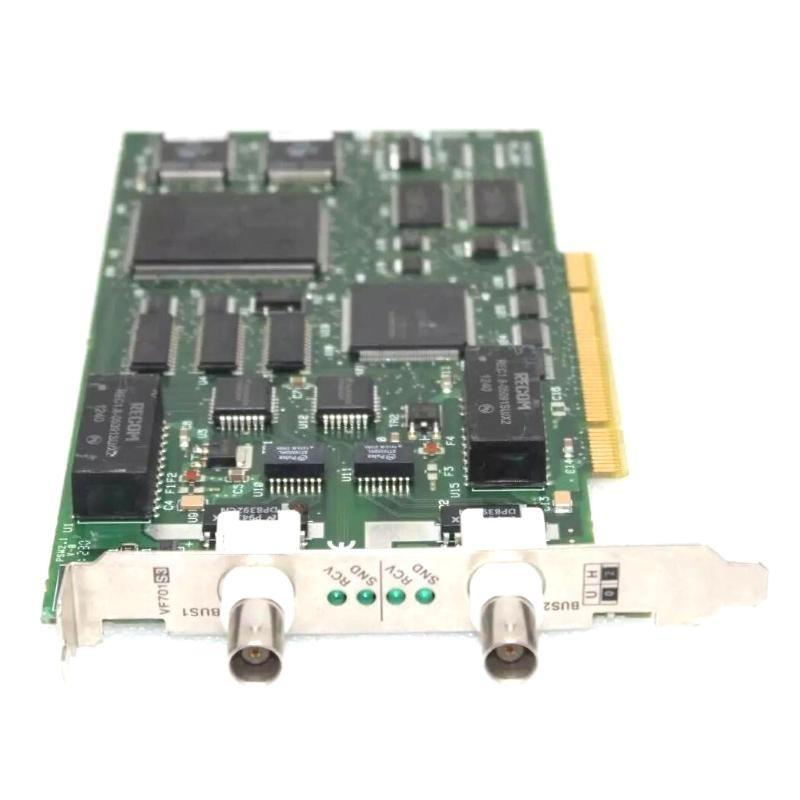

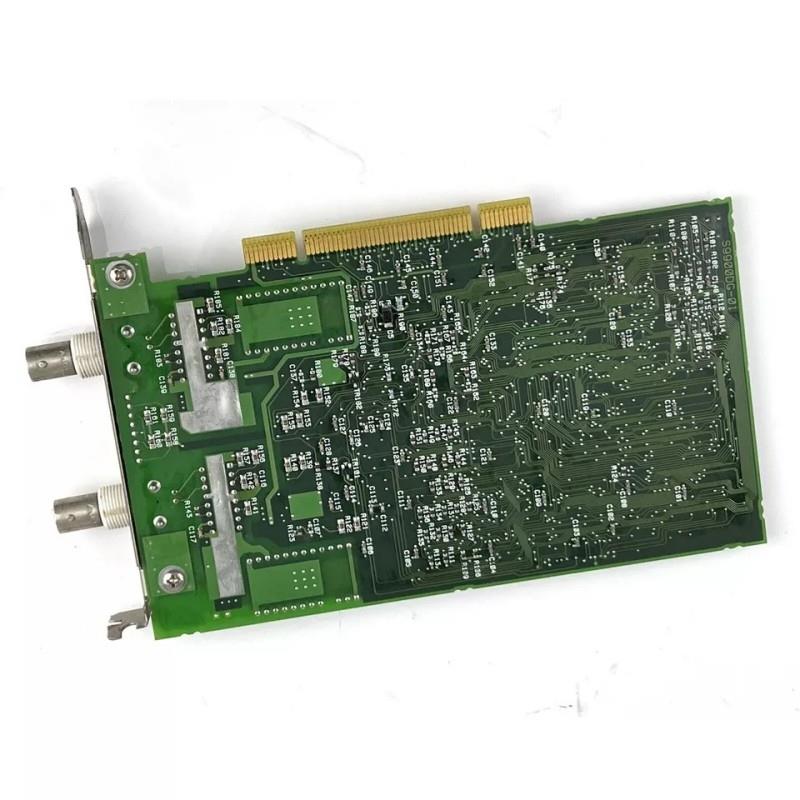

Name: Yokogawa VF701 Vnet/IP Interface Card 30-Day Returns！
Brand: Yokogawa Electric
SKU: 11937
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

Yokogawa Electric has over 100 years experience in the measurement and control business,it produces the first DCS in the world. The main system is CENTUM CS 3000 R3.

Product Introduction

Yokogawa VF701 Vnet/IP Interface Card 30-Day Returns！

Brand：Yokogawa

Item No.：VF701

Product Type：Vnet/IP Interface Card

Product Origin：Japan

Dimensions：180.97 x 21.59 x 126.31 mm

Weight：0.18 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Compliant import, support for testing, and fast response to after-sales service

Flexible stock of multiple models, support for fast response, welcome to cooperate and communicate!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What is the primary function of the VF701 (VI702) Vnet/IP Interface Card?
The VF701 serves as an interface between a computer’s PCI Express slot and Yokogawa’s Vnet/IP control network, enabling high-speed communication for control system integration.

Can the VI702 card be used in a standard PCI slot?
No, the VI702 is designed exclusively for PCI Express slots and is not compatible with standard PCI slots.

What communication speed does the VI702 support?
It supports 1 Gbps full-duplex communication over a 1000BASE-T Ethernet interface.

What type of cable and connector are required for proper connection?
A CAT5e UTP cable with an RJ45 connector is required. The maximum supported cable length is 100 meters.

What power specifications does the interface card require?
It requires a 3.3 V ± 9% power supply with a maximum current draw of 2.5 A.

What do the RDY, RCV, and SND lamps indicate?
The RDY lamp indicates the card is operating normally, the RCV lamp lights when receiving signals, and the SND lamp lights when sending signals on the control bus.

Is the VI702 compliant with specific PCIe revisions?
Yes, it complies with PCI Express CEM Specification 1.0a and supports 2.5 GT/s signaling on a x1 lane interface.

What are the physical dimensions and weight of the VI702 card?
The dimensions are 180.97 mm (W) x 21.59 mm (D) x 126.31 mm (H), and it weighs approximately 0.18 kg.
