Product Details

Honeywell Experion PKS ( C200, C300 ) is one of the most important DCS system. Original New Control processor, Control Interface, Redundancy Module, I/O Link Interface Module, PM I/O, FTA, FSC Module, UCN Board are provided

Product Introduction

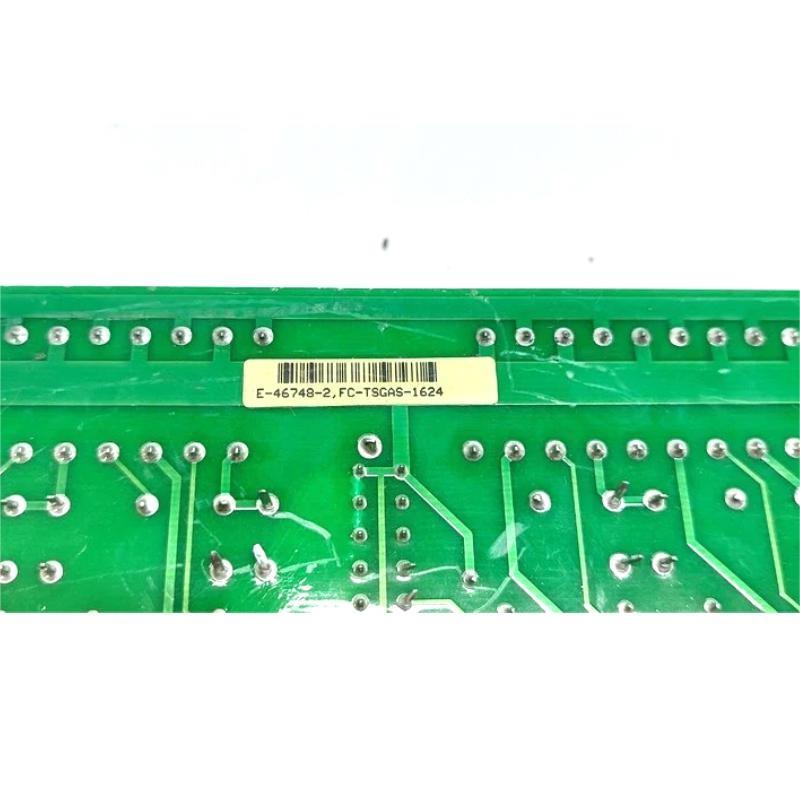

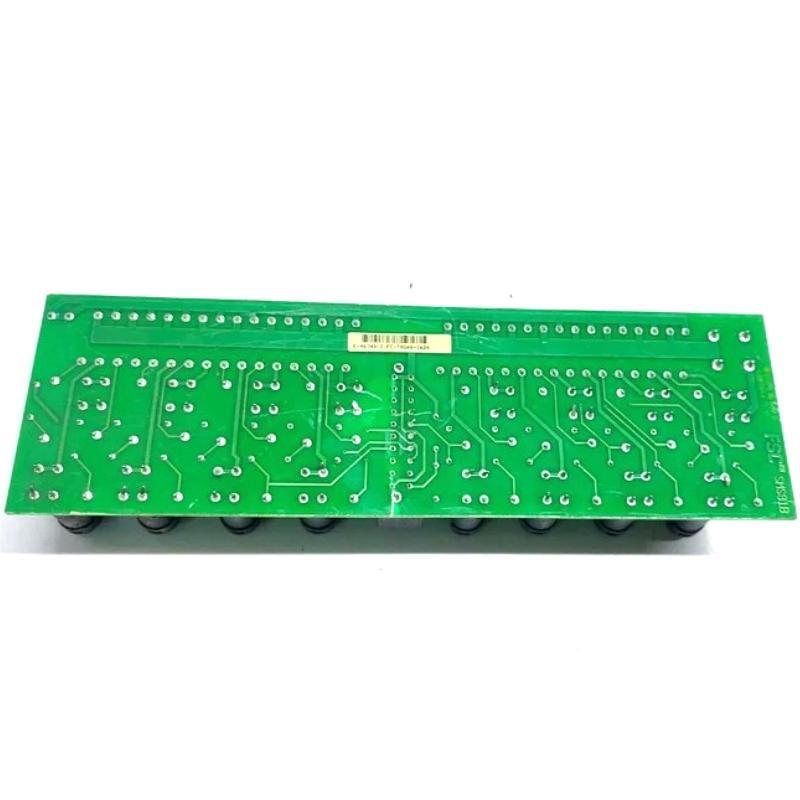

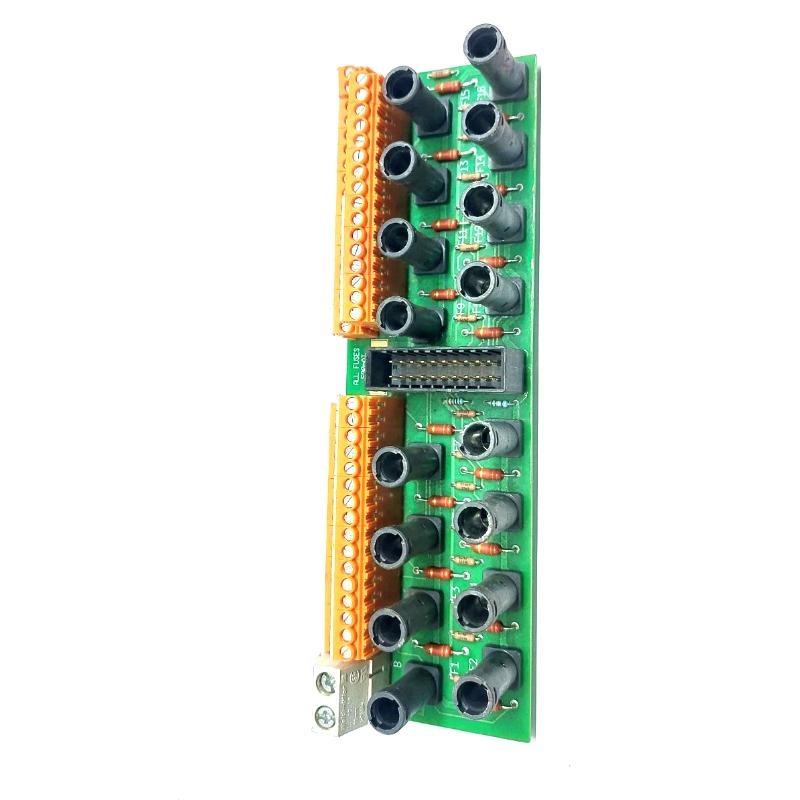

Honeywell FC-TSGAS-1624 Field Termination Assembly Module Original

Brand：Honeywell

Item No.：FC-TSGAS-1624

Product Type：Field Termination Assembly Module

Product Origin：USA

Dimensions：60 × 70 × 225 mm

Weight：0.5 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original source, data support test content, efficient after-sales processing

Regular models are in stock for a long time, inventory is stable, welcome to inquire about prices!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

How many analog input channels does the FC-TSGAS-1624 support?
The module supports 16 analog input channels, each referenced to a common 0 V.

What is the required external power supply for the FC-TSGAS-1624?
The module operates with an external 24 V DC power supply, drawing approximately 3 mA without field loads.

What is the output signal range provided to the connected SAI-1620m module?
The module provides an output voltage range of 0 to 4 V DC with an accuracy of 0.1%.

Are the input signals isolated or referenced to a common ground?
All input channels are referenced to a common 0 V, and the 0 V of the external power is internally connected to this common point.

What type of fuse is integrated in the FC-TSGAS-1624 module?
It uses a 500 mA fuse with dimensions 5×20 mm, manufactured by Schurter (Part Number: 0001.2501).

What are the wiring specifications for signal and power connections?
Signal terminals support up to 2.5 mm² (AWG 14) wire with a tightening torque of 0.5 Nm. Power terminals accept up to 16 mm² (AWG 8) wire with 1.2 Nm torque.

What is the physical size and mounting requirement of this module?
The module dimensions are 225 × 70 × 60 mm. It mounts on TS32 or TS35 × 7.5 DIN rails, using a rail length of 226 mm.

Can the module be used in safety-related applications?
Yes, the module is suitable for both safety-related and non-safety-related analog input applications, commonly interfacing with gas or flame detectors in critical systems.
