Product Details

Honeywell Experion PKS ( C200, C300 ) is one of the most important DCS system. Original New Control processor, Control Interface, Redundancy Module, I/O Link Interface Module, PM I/O, FTA, FSC Module, UCN Board are provided

Product Introduction

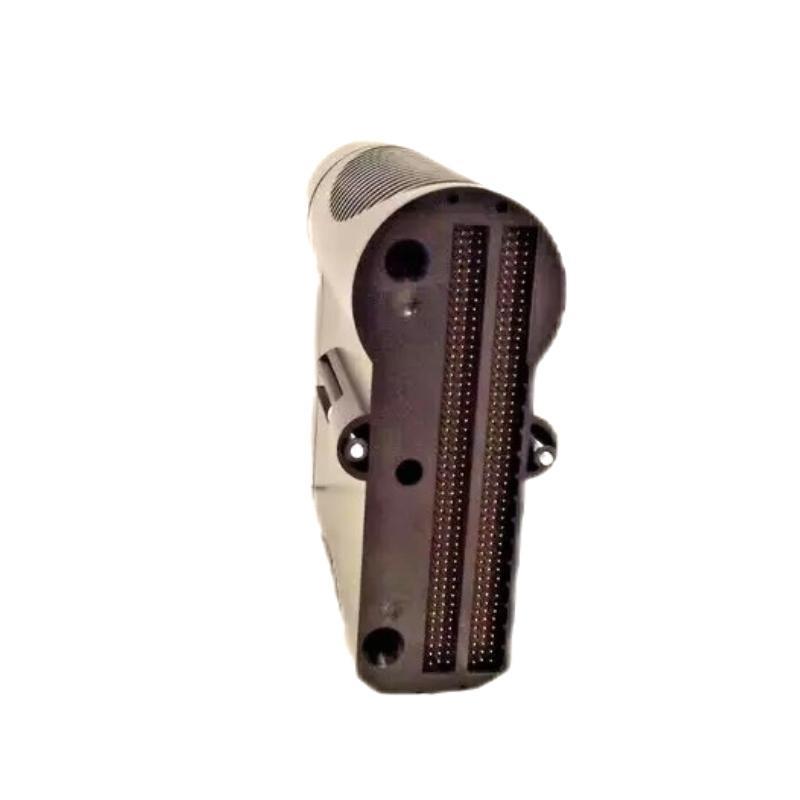

Honeywell FC-PDIO01 51454927-176 Safety Digital I/O Module 12-Month Warranty

Brand：Honeywell

Item No.：FC-PDIO01 51454927-176

Product Type：Safety Digital I/O Module

Product Origin：USA

Dimensions：96 x 63 x 26 mm

Weight：0.2 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Formal channels, complete test instructions, responsive service

There are abundant spot models, supporting quick docking of purchasing needs, welcome to inquire!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What is the primary function of the FC-PDIO01 module?
The FC-PDIO01 module is a Safety Digital I/O module designed for interfacing field devices with Safety Manager SC systems. It supports both digital input and output configurations in safety-critical applications.

Can the FC-PDIO01 handle both digital input and digital output operations?
Yes, the module is self-configurable and supports both digital input and output modes, including NAMUR-compliant digital inputs and outputs for solenoids, alarms, and relay coils.

What is the isolation rating for the FC-PDIO01?
The module provides galvanic isolation of 1500 VAC RMS between the control system and the field wiring, ensuring electrical safety and signal integrity.

Is the module compliant with safety and hazardous location standards?
Yes, it meets SIL2 per IEC 61508, and is certified for use in hazardous areas according to ATEX, IECEx, and North American standards (Class I, Division 2, Groups A–D).

What is the power consumption of the FC-PDIO01 module?
Power consumption depends on the mode. In digital output mode, it consumes up to 1.6 W. In digital input mode, it consumes approximately 600 mW.

What type of signal wiring does the module support?
It supports 2-wire and 3-wire configurations for both input and output. The terminal blocks on the CC-UGIA01 backplane accommodate typical field wiring standards.

What diagnostics are available on the FC-PDIO01?
The module includes status indication LEDs for DI and DO functions, as well as fault transparency features for open and short circuit detection on the field wiring.

What are the environmental conditions under which the FC-PDIO01 can operate?
The module operates reliably in ambient temperatures ranging from -40°C to +70°C, with up to 95% non-condensing humidity, and is resistant to vibration and shock as per industrial standards.
