Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

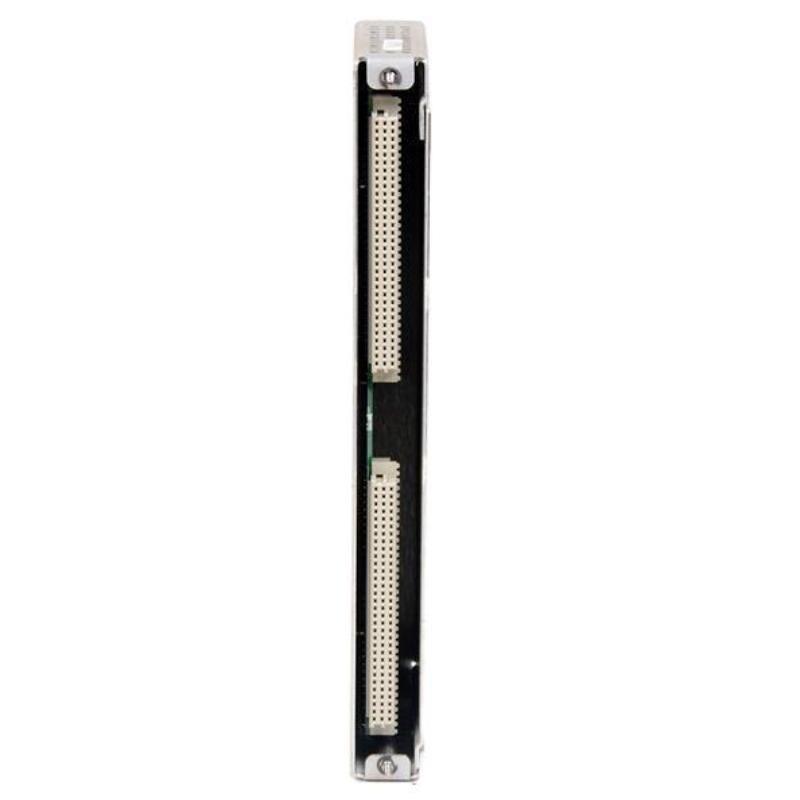

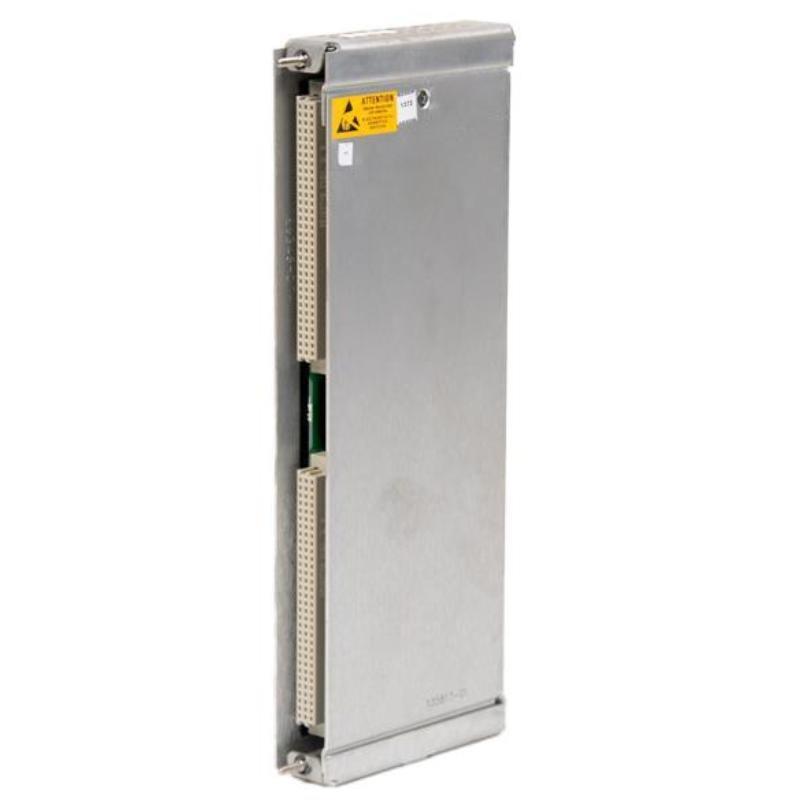

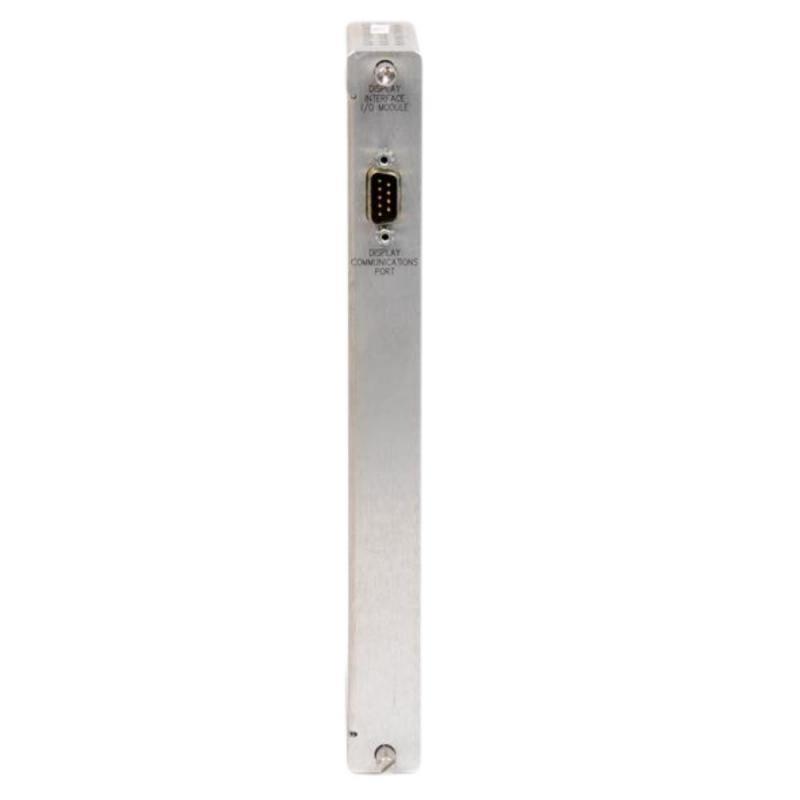

Bently Nevada 3500/93-02-00-00-00 135813-01 Display Interface I/O Module Fast Shipping!

Brand：Bently Nevada

Item No.：3500/93-02-00-00-00 135813-

Product Type：Display Interface I/O Module

Product Origin：USA

Dimensions：241.3 x 24.4 x 99.1 mm

Weight：0.38 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Formal channels, complete testing instructions, and responsive services

Rich stock models support quick docking of procurement needs, welcome to inquire!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What is the primary function of the 135813-01 Display Interface I/O Module?
It serves as the communication link between the 3500/93 Display Unit and the 3500 monitoring rack, enabling data exchange for system status display.

Is the Display Interface I/O Module compatible with all 3500/93 display mounting options?
Yes, it is included with all mounting options except the system face mount (Option A01), where it must be ordered separately.

What communication protocols are supported by this module?
It supports both the proprietary Bently Nevada protocol and Modbus® based on AEG PI-MBUS-300 Rev. E.

What is the maximum channel data update rate for this module?
The module typically updates channel data every 1 second.

What are the environmental operating limits for this module?
It operates from -30°C to +65°C and stores from -40°C to +85°C with 95% non-condensing humidity tolerance.

Does this module require a separate power supply?
No, it draws power through its connection to the 3500/93 Display Interface Module.

What are the mounting requirements within the 3500 rack?
It occupies one full-height rear I/O slot in the 3500 rack.

What is the physical size and weight of the 135813-01 module?
It measures 241.3 x 24.4 x 99.1 mm and weighs 0.38 kg.
