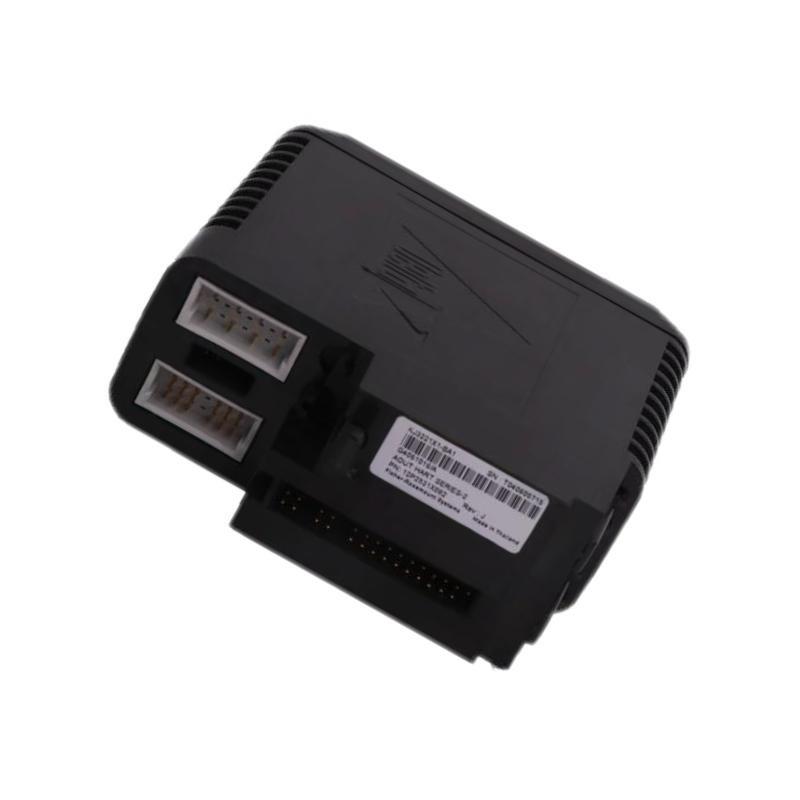

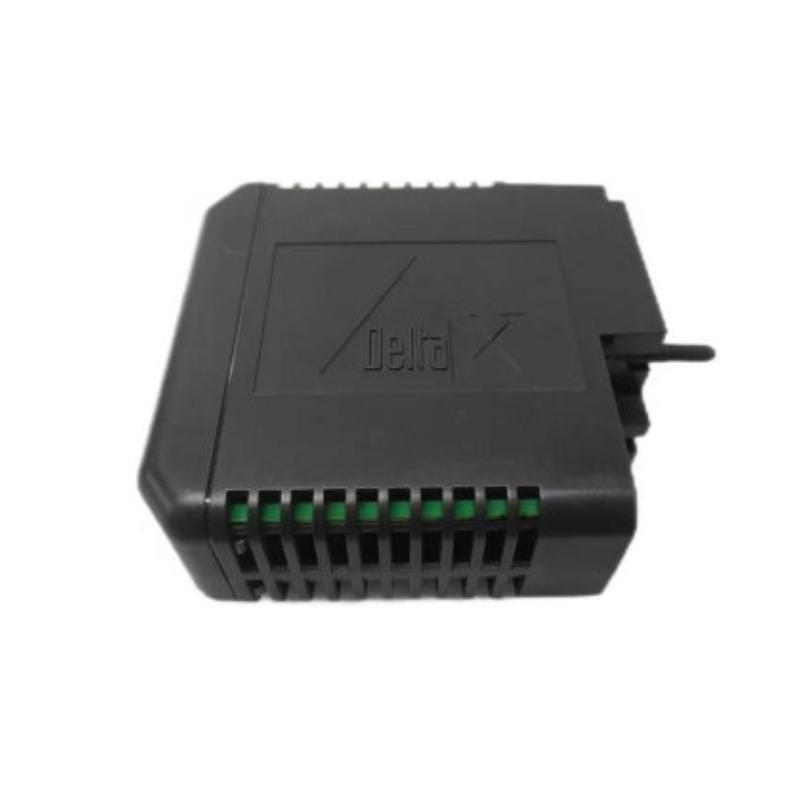

Emerson KJ3231X1-BA1 Isolated Input Module 30-Day Returns！

FAQ

In which systems is this module used?
This module is used in Emerson DeltaV S-Series control systems to convert analog signals from field devices into digital signals for processing.

What input signal types does the module support?
It supports 4–20 mA analog input signals, suitable for various field devices.

What is the operating temperature range of the module?
The operating temperature range is from -40 °C to +70 °C, suitable for diverse industrial environments.

What are the dimensions and weight of the module?
The module dimensions are 120 × 25 × 110 mm, and it weighs 0.5 kg, facilitating easy installation and maintenance.

What are the power requirements for the module?
The module requires a 12 VDC local bus power supply at 350 mA.

What is the protection rating of the module?
The module has an IP20 protection rating, suitable for rack-mounted installations in industrial environments.

Does the module support HART protocol?
This module does not support HART protocol; it provides only analog input signals.

Is this module suitable for hazardous environments?
Yes, the module complies with ATEX directives, suitable for II 3G Ex nA IIC Gc and II 3G Ex nL IIC Gc hazardous environments.
