Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

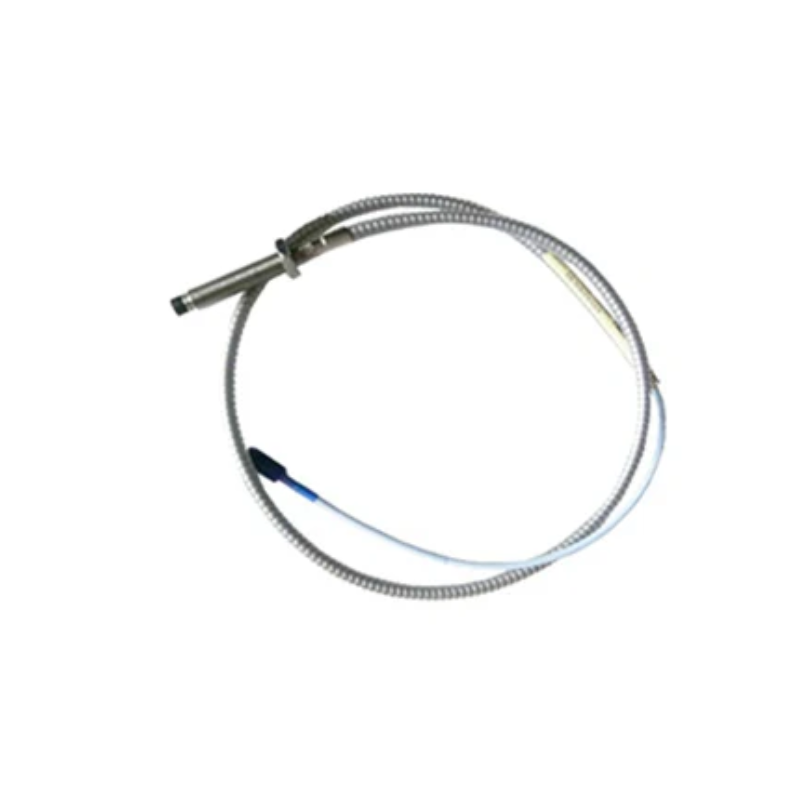

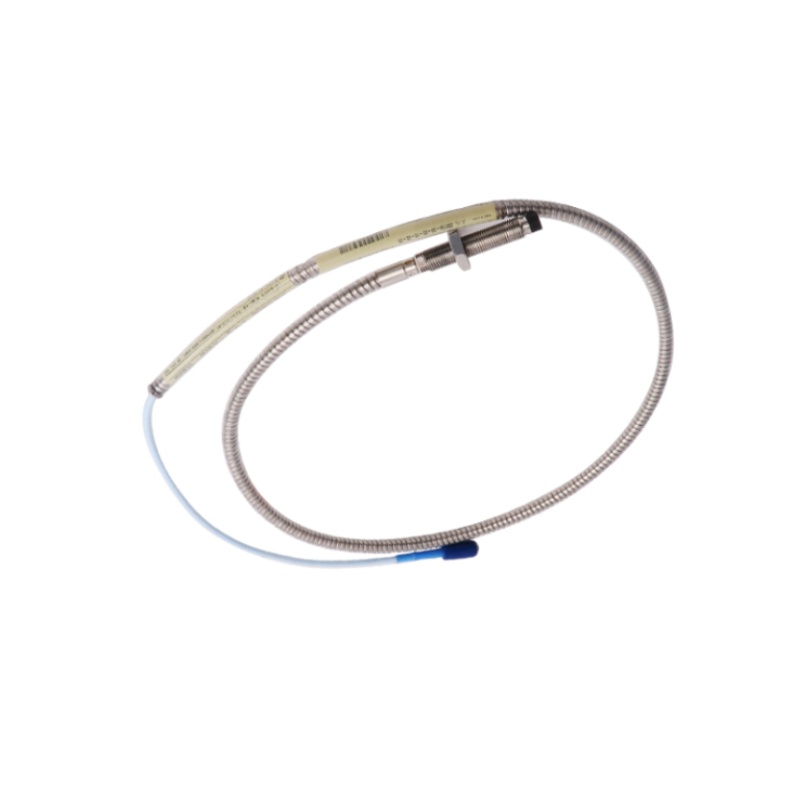

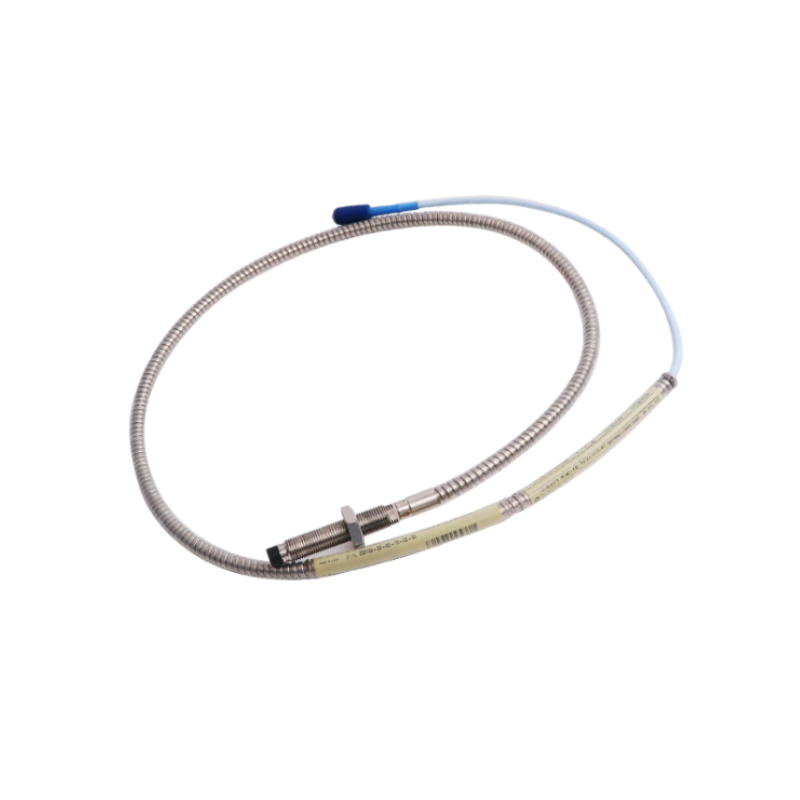

Bently Nevada 330104-19-23-50-02-05 8 mm 3300 XL Eddy-Current Proximity Probe 12-Month Warranty

Brand：Bently Nevada

Item No.：330104-19-23-50-02-05

Product Type：8 mm 3300 XL Eddy-Current Proximity Probe

Product Origin：USA

Dimensions：230 mm case length; 8 mm probe tip diameter

Weight：1.80 kg (with 5.0 m armored cable)

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original overseas introduction, testing assistance instructions support, stable and reliable service

Flexible stock of various models, support for rapid response, welcome to cooperate and communicate!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the primary application of the 330104-19-23-50-02-05 probe?
It is used for non-contact measurement of shaft vibration, displacement, and position in rotating machinery such as turbines, compressors, and pumps.

What do the model number segments indicate?
19 = 19 mm unthreaded length, 23 = 230 mm case length, 50 = 5.0 m system length, 02 = armored miniature coaxial connector, 05 = limited agency approvals.

What materials are used in this probe?
The probe tip is PPS, and the housing is stainless steel with armored cable protection.

What is the operating temperature range?
It operates reliably from –52 °C to +177 °C.

Which proximitor is compatible with this probe?
It is designed for use with the 3300 XL Proximitor for precise shaft vibration and displacement monitoring.

Does this probe have certifications?
Yes, it includes limited agency approvals as indicated by the “05” suffix.

What is the typical measurement sensitivity?
Approximately 200 mV/mil with a linear range of 0.25–2.5 mm.

What are the physical dimensions and weight of the probe?
The probe has a 230 mm case length, 8 mm tip diameter, and weighs about 1.80 kg including the 5.0 m armored cable.
