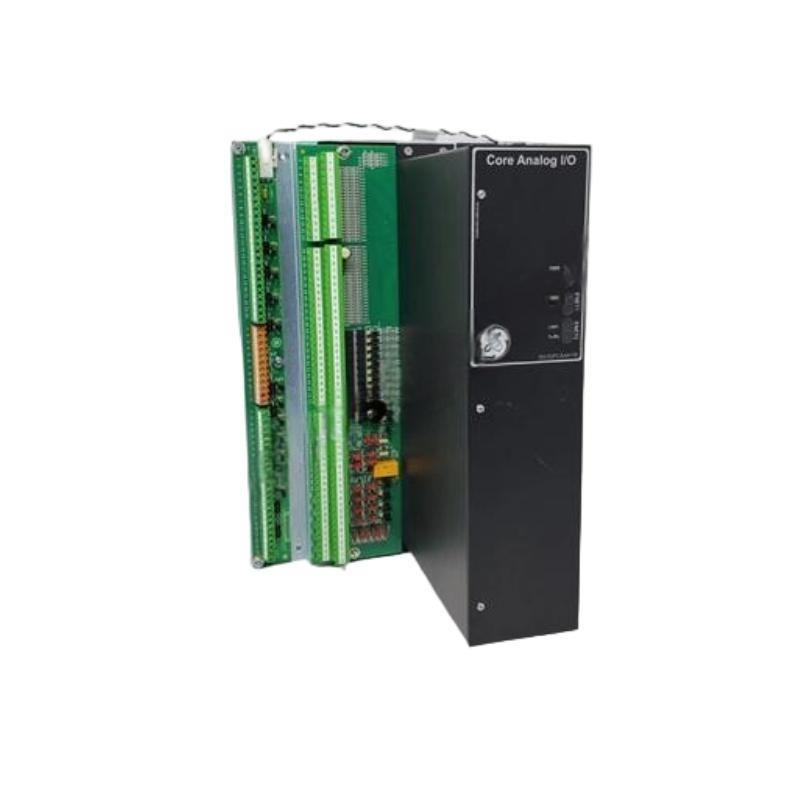

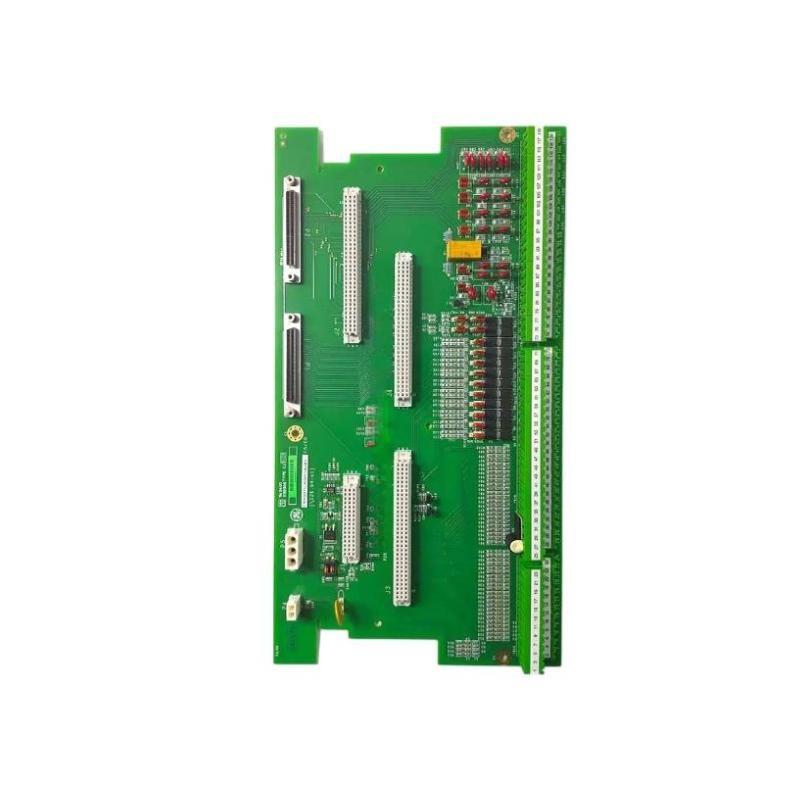

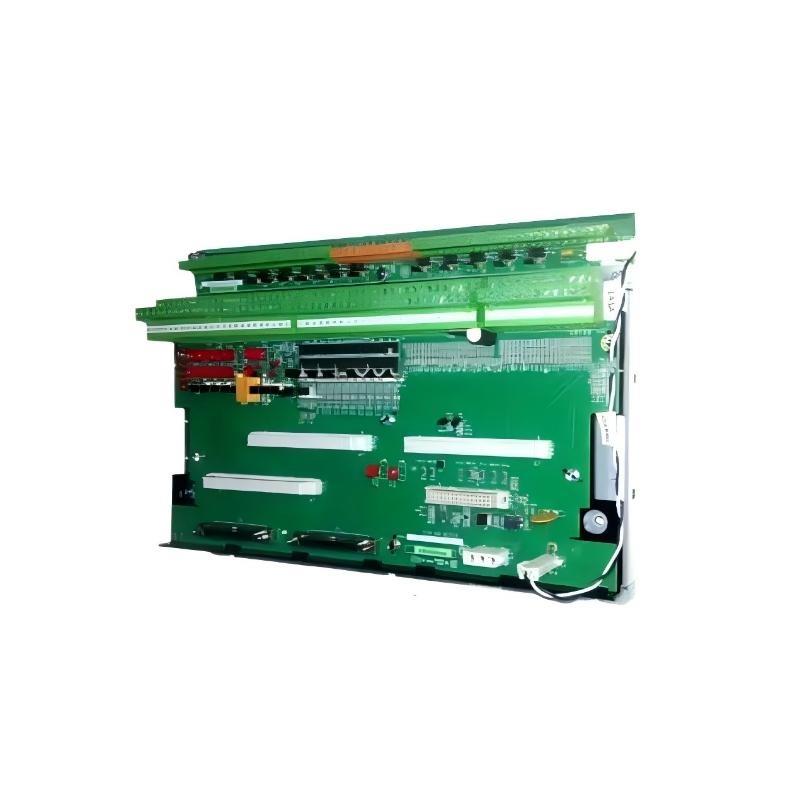

GE IS400TCASH1A Core Analog (PCAA) Terminal Board Original

FAQ

1. What is the main function of the GE IS400TCASH1A terminal board?

The GE IS400TCASH1A terminal board serves as an interface between core analog signals (input and output) and the control system, supporting the connection of sensors and other devices to the system.

2. What type of input does the GE IS400TCASH1A terminal board accept?

The module accepts analog input signals, typically from sensors and other field devices that produce voltage or current signals for system control.

3. What type of output does the GE IS400TCASH1A provide?

The module provides analog output, which can be used to control field devices that accept analog signals for operational adjustments.

4. What voltage range is supported by the GE IS400TCASH1A terminal board?

The board operates with a voltage range of 24 VDC ± 20%, making it compatible with a wide range of industrial systems and equipment.

5. What is the power supply requirement for the GE IS400TCASH1A terminal board?

The module requires a 24 VDC power supply, with a tolerance of ±10%, ensuring consistent operation in various industrial environments.

6. What is the operating temperature range for the GE IS400TCASH1A terminal board?

The board operates within a temperature range of -20°C to +60°C, suitable for both low and high-temperature environments commonly found in industrial settings.

7. How does the GE IS400TCASH1A module provide signal isolation?

The module includes 1500 V isolation, ensuring the safe transmission of signals while preventing electrical noise and interference from affecting the system’s performance.

8. How is the GE IS400TCASH1A terminal board mounted?

The terminal board is designed for rack mounting, making it easy to integrate into standard industrial racks or enclosures.
