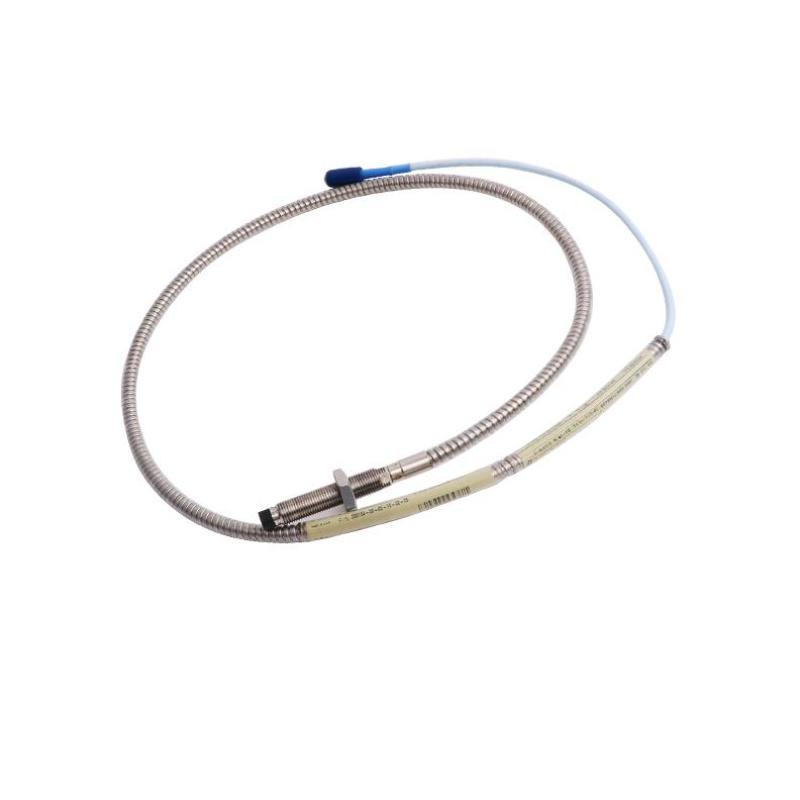

Bently Nevada 330104-05-13-10-02-00 8 mm 3300 XL Eddy-Current Proximity Probe 30-Day Returns！

Bently Nevada 330104-05-13-10-02-00 8 mm 3300 XL Eddy-Current Proximity Probe 30-Day Returns！

0.0

Points

100% Original and Authentic.
100% Brand New, Ready to ship.
Support Refund, 7X24h Service.
1-Year Warranty on All Products.

Today's Discount: 90% 00 : 00 : 00

Low stock: 34 left

23%

Add to cart

Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

Bently Nevada 330104-05-13-10-02-00 8 mm 3300 XL Eddy-Current Proximity Probe 30-Day Returns！

Brand：Bently Nevada

Item No.：330104-05-13-10-02-00

Product Type：8 mm 3300 XL Eddy-Current Proximity Probe

Product Origin：USA

Dimensions：130 mm case length; 8 mm probe tip diameter

Weight：0.60 kg (with 1.0 m armored cable)

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Formal channels, complete test instructions, responsive service

There are abundant spot models, supporting quick docking of purchasing needs, welcome to inquire!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the primary application of the 330104-05-13-10-02-00 probe?
It is used for non-contact measurement of shaft vibration, displacement, and position in rotating machinery such as turbines, compressors, and pumps.

What do the sections of the model number represent?
05 = 5 mm unthreaded length, 13 = 130 mm case length, 10 = 1.0 m total system length, 02 = armored miniature coaxial connector, 00 = no agency approvals.

What materials are used in the probe?
The probe tip is PPS, and the housing is stainless steel with armored cable protection.

What is the operating temperature range?
It operates reliably from –52 °C to +177 °C.

Which proximitor is compatible with this probe?
It is designed for use with the 3300 XL Proximitor for accurate displacement and vibration measurement.

Does this probe have any hazardous-area certifications?
No, the “00” designation indicates no agency or hazardous-area approvals.

What is the typical measurement sensitivity?
Approximately 200 mV/mil with a linear range of 0.25–2.5 mm.

What are the physical dimensions and weight of the probe?
The probe has a 130 mm case length, 8 mm tip diameter, and weighs about 0.60 kg including the 1.0 m armored cable.
