Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

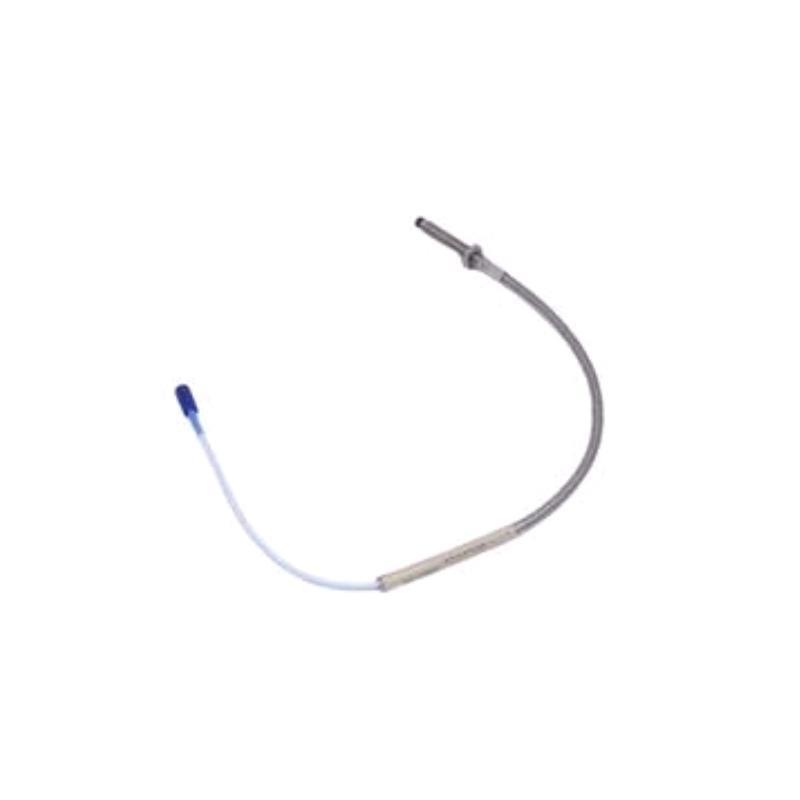

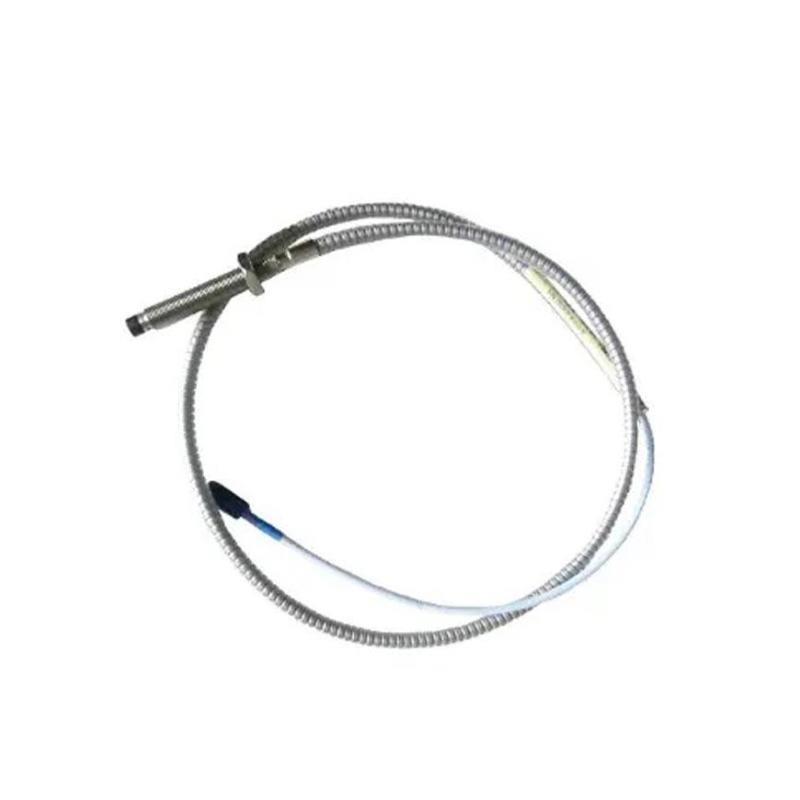

Bently Nevada 330104-04-12-90-02-CN 8 mm 3300 XL Eddy-Current Proximity Probe Fast Shipping!

Brand：Bently Nevada

Item No.：330104-04-12-90-02-CN

Product Type：8 mm 3300 XL Eddy-Current Proximity Probe

Product Origin：USA

Dimensions：120 mm case length; 8 mm probe tip diameter

Weight：1.55 kg (with 9.0 m armored cable)

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Compliant import, support for testing, fast response to after-sales service

Sufficient inventory of tens of thousands of models, fast delivery of spot goods, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the primary use of the 330104-04-12-90-02-CN probe?
It is mainly used for non-contact measurement of shaft vibration, displacement, and position in rotating machinery such as compressors, turbines, and pumps.

What does each part of the model number represent?
04 = 4 mm unthreaded section, 12 = 120 mm case length, 90 = 9.0 m total system length, 02 = armored connector, CN = Chinese certification.

What materials are used in this probe?
The probe tip is made from PPS, and the housing is stainless steel with armored cable protection.

What is the operating temperature capability?
The probe operates reliably from –52 °C to +177 °C.

Which proximitor does this probe work with?
It is designed for use with the 3300 XL Proximitor for accurate displacement and vibration monitoring.

Does this model include certification?
Yes, the “CN” suffix indicates it meets Chinese certification requirements.

What is the probe’s typical sensitivity?
It provides approximately 200 mV/mil with a linear measurement range of about 0.25–2.5 mm.

What are the dimensions and weight of the probe?
It has a 120 mm case length, 8 mm tip diameter, and weighs roughly 1.55 kg including the 9.0 m armored cable.
