Bently Nevada 330104-03-09-50-02-00 8 mm 3300 XL Eddy-Current Proximity Probe 30-Day Returns！

Bently Nevada 330104-03-09-50-02-00 8 mm 3300 XL Eddy-Current Proximity Probe 30-Day Returns！

0.0

Points

100% Original and Authentic.
100% Brand New, Ready to ship.
Support Refund, 7X24h Service.
1-Year Warranty on All Products.

Today's Discount: 90% 00 : 00 : 00

Low stock: 90 left

60%

Add to cart

Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

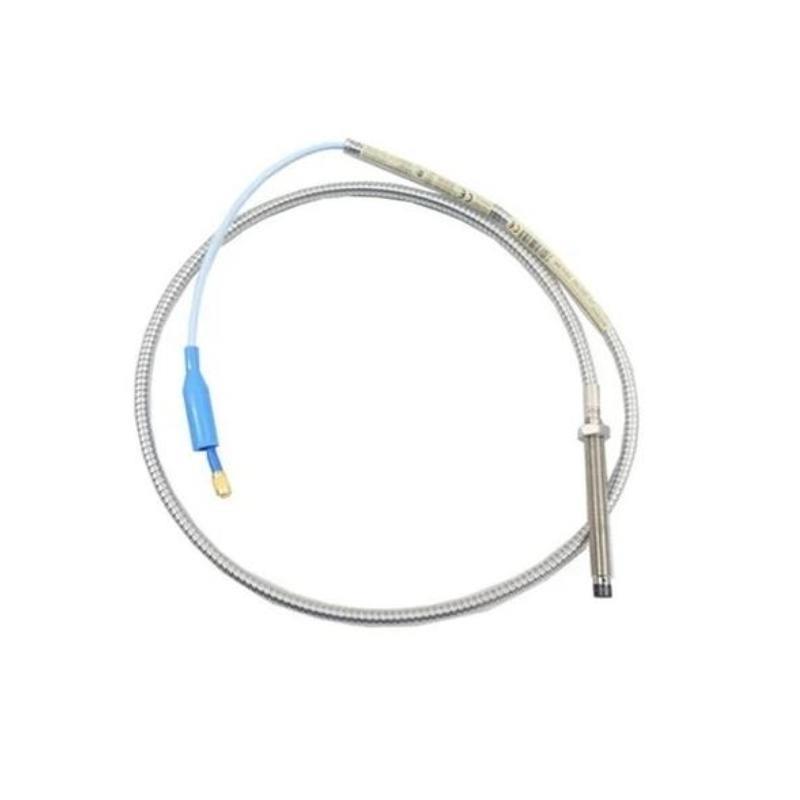

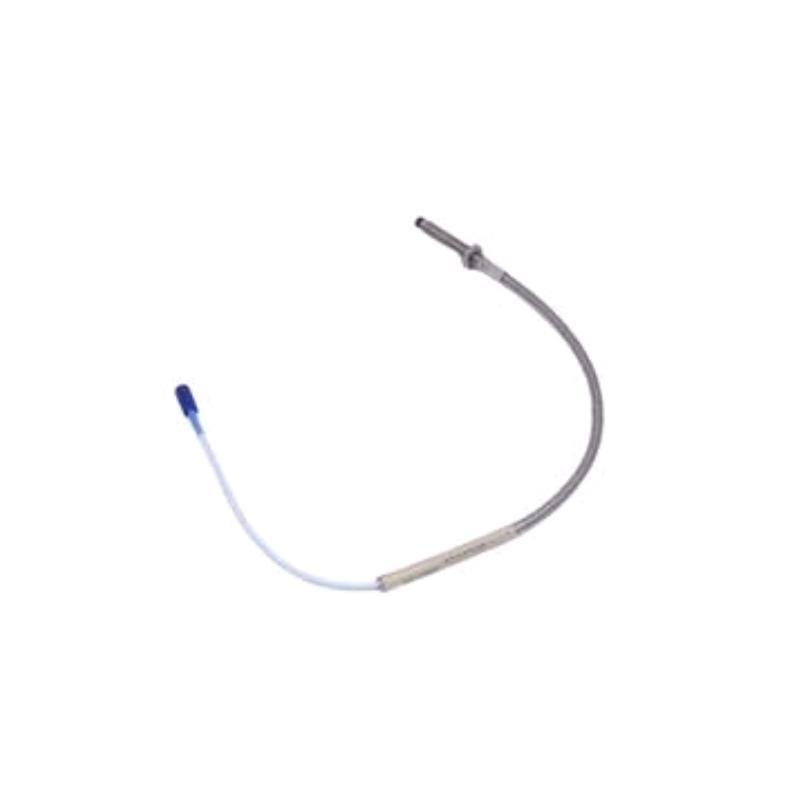

Bently Nevada 330104-03-09-50-02-00 8 mm 3300 XL Eddy-Current Proximity Probe 30-Day Returns！

Brand：Bently Nevada

Item No.：330104-03-09-50-02-00

Product Type：8 mm 3300 XL Eddy-Current Proximity Probe

Product Origin：USA

Dimensions：90 mm case length; 8 mm probe tip diameter

Weight：1.10 kg (with 5.0 m armored cable)

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

This product is imported from overseas, supports test report assistance, and smooth after-sales docking

The model covers a wide range and the delivery is efficient. Welcome to contact us for information!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the primary application of the 330104-03-09-50-02-00 probe?
It is used for non-contact measurement of shaft vibration, displacement, and position in rotating machinery such as turbines, compressors, and pumps.

What do the sections of the model number represent?
03 = 3 mm unthreaded length, 09 = 90 mm case length, 50 = 5.0 m total system length, 02 = armored miniature coaxial connector, 00 = no agency approvals.

What materials are used in the probe?
The tip is PPS, and the housing is stainless steel with armored cable protection.

What is the operating temperature range?
The probe functions reliably from –52 °C to +177 °C.

What type of output does this probe provide?
When paired with a 3300 XL Proximitor, it produces a voltage proportional to the gap between the probe tip and the shaft.

Does this model include hazardous-area certifications?
No, the “00” code indicates it does not have any agency or hazardous-area approvals.

What is the typical measurement sensitivity?
Approximately 200 mV/mil with a linear range of 0.25–2.5 mm.

What are the physical dimensions and weight of the probe?
The probe has a 90 mm case length, 8 mm tip diameter, and weighs about 1.10 kg including the 5.0 m armored cable.
