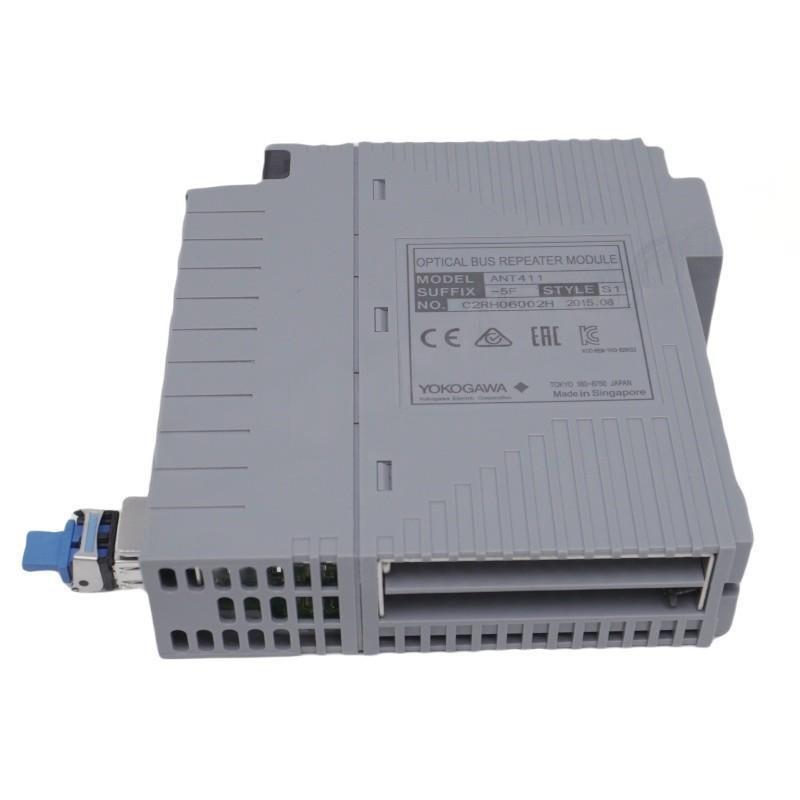

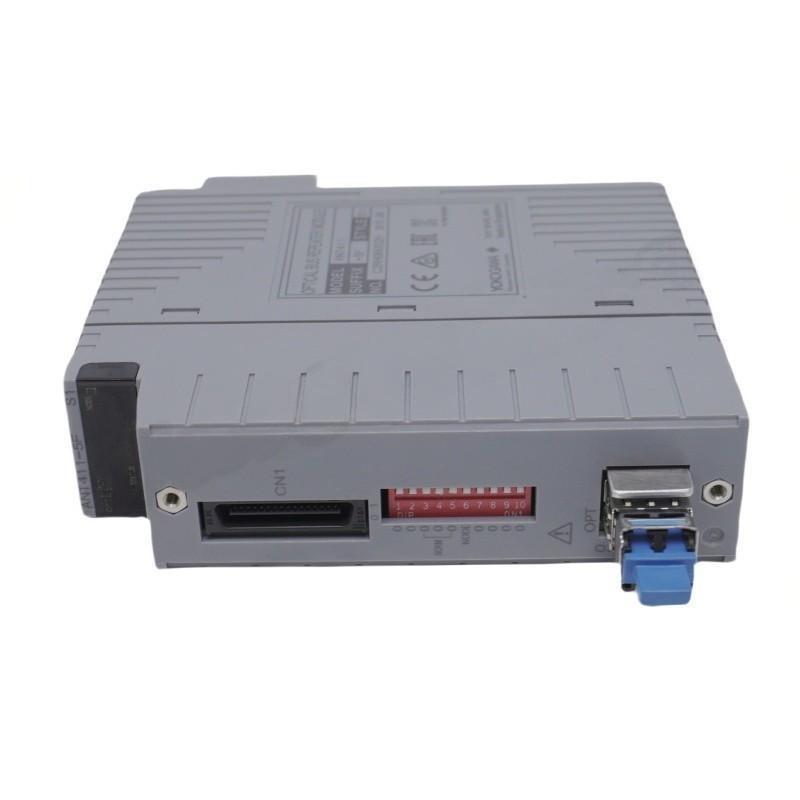

Yokogawa ANT411-5F ESB Bus Repeater Module Original

FAQ

What is the primary function of the ANT411-5F module?
The ANT411-5F functions as a repeater that extends and stabilizes ESB bus communication between controllers and I/O nodes, ensuring signal integrity over longer distances.

How many ESB channels does the ANT411-5F support?
It supports two independent ESB channels, enabling bidirectional communication and improved reliability.

What is the maximum transmission distance supported by the ANT411-5F?
The maximum cable length between modules is up to 100 meters, depending on cable quality and installation conditions.

Does the ANT411-5F provide electrical isolation?
Yes, it provides 500 V DC isolation between input and output circuits, improving system safety and noise immunity.

What type of power supply does the ANT411-5F require?
It operates on a 24 V DC power source, with an acceptable range between 18 V and 32 V DC.

Can the module operate in harsh industrial environments?
Yes, it can operate in temperatures from 0 to 55 °C and humidity up to 90% non-condensing, making it suitable for most industrial applications.

Is the ANT411-5F compatible with Yokogawa CENTUM systems?
Yes, it is designed for use with Yokogawa CENTUM CS 3000 and CENTUM VP Distributed Control Systems.

How is the ANT411-5F installed in the system?
The module is mounted on a base plate and connected via ESB bus cables to ensure stable and secure communication links.
