Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

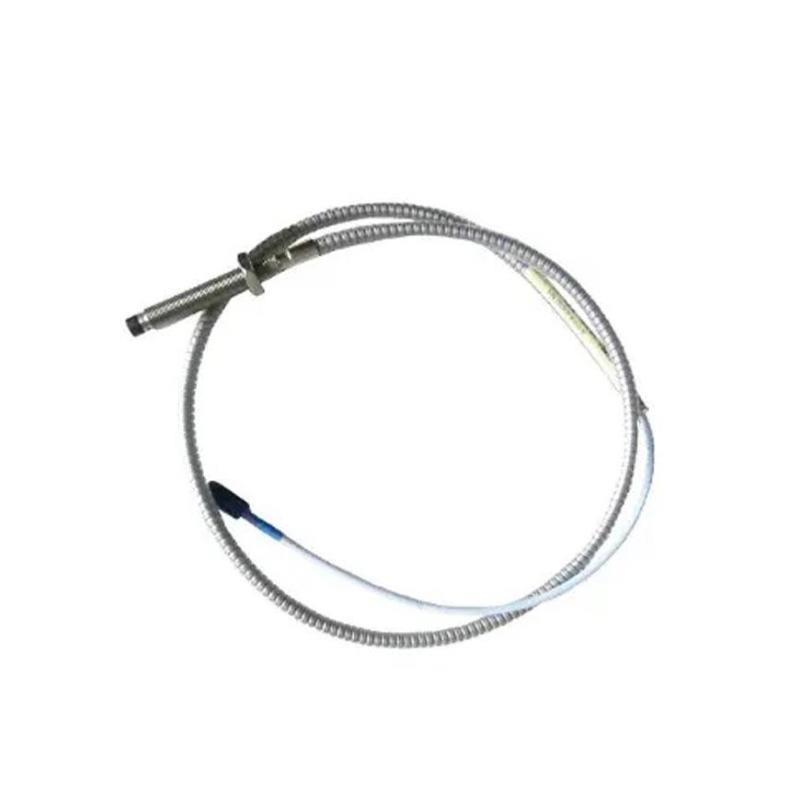

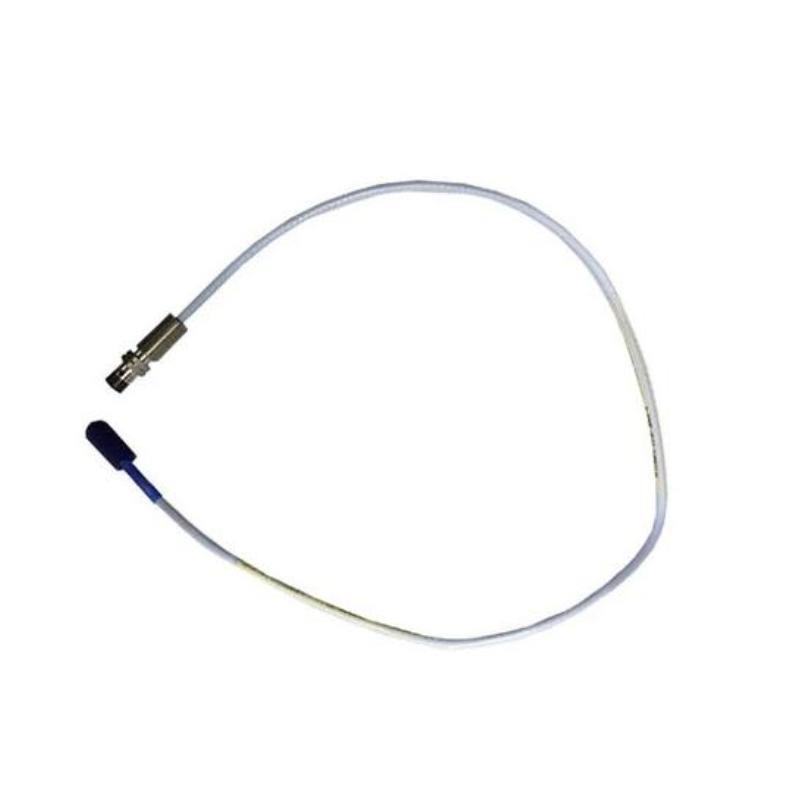

Bently Nevada 330104-03-08-10-02-00 8 mm 3300 XL Eddy-Current Proximity Probe Original

Brand：Bently Nevada

Item No.：330104-03-08-10-02-00

Product Type：8 mm 3300 XL Eddy-Current Proximity Probe

Product Origin：USA

Dimensions：80 mm case length; 8 mm probe tip diameter

Weight：0.45 kg (with 1.0 m armored cable)

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Regular supply, testing instructions can be coordinated, and after-sales service continues to follow up

Ten thousand models are in stock, spot fast delivery, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the primary application of the 330104-03-08-10-02-00 probe?
It is used for non-contact measurement of shaft vibration, displacement, and position in rotating machinery such as turbines, compressors, and pumps.

What do the segments of the model number indicate?
03 = 3 mm unthreaded length, 08 = 80 mm case length, 10 = 1.0 m total system length, 02 = armored miniature coaxial connector, 00 = no agency approvals.

What materials are used in the probe?
The probe tip is PPS, and the housing is stainless steel with armored cable protection.

What is the operating temperature range?
It operates reliably from –52 °C to +177 °C.

What type of output does the probe provide?
Paired with a 3300 XL Proximitor, it produces a voltage proportional to the gap between the probe tip and the shaft.

Does this model have hazardous-area certifications?
No, the “00” suffix indicates no agency or hazardous-area approvals.

What is the typical measurement sensitivity?
Approximately 200 mV/mil with a linear range of 0.25–2.5 mm.

What are the physical dimensions and weight of the probe?
The probe has an 80 mm case length, 8 mm tip diameter, and weighs about 0.45 kg including the 1.0 m armored cable.
