Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

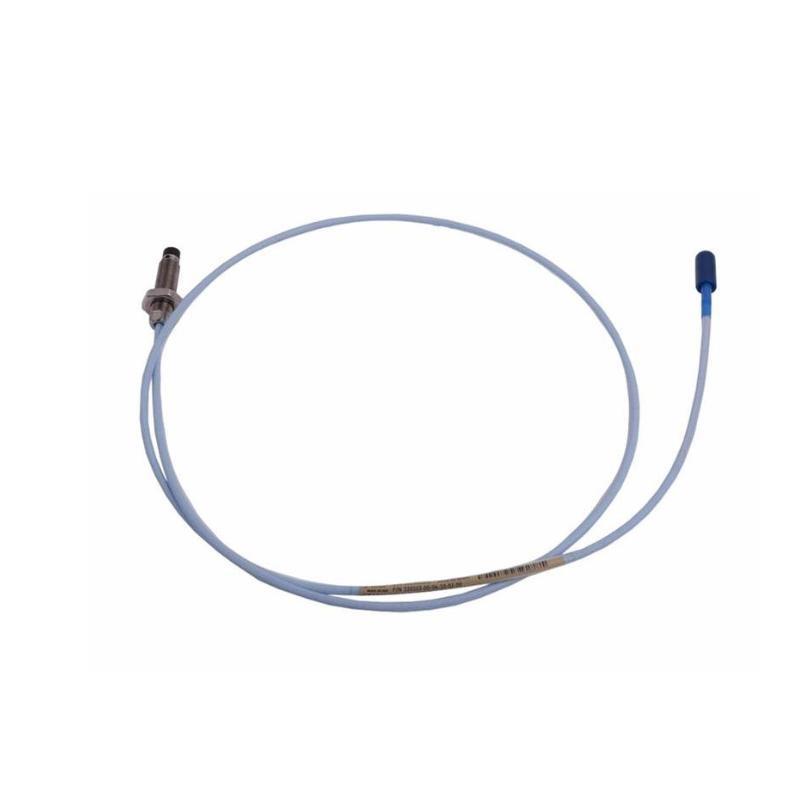

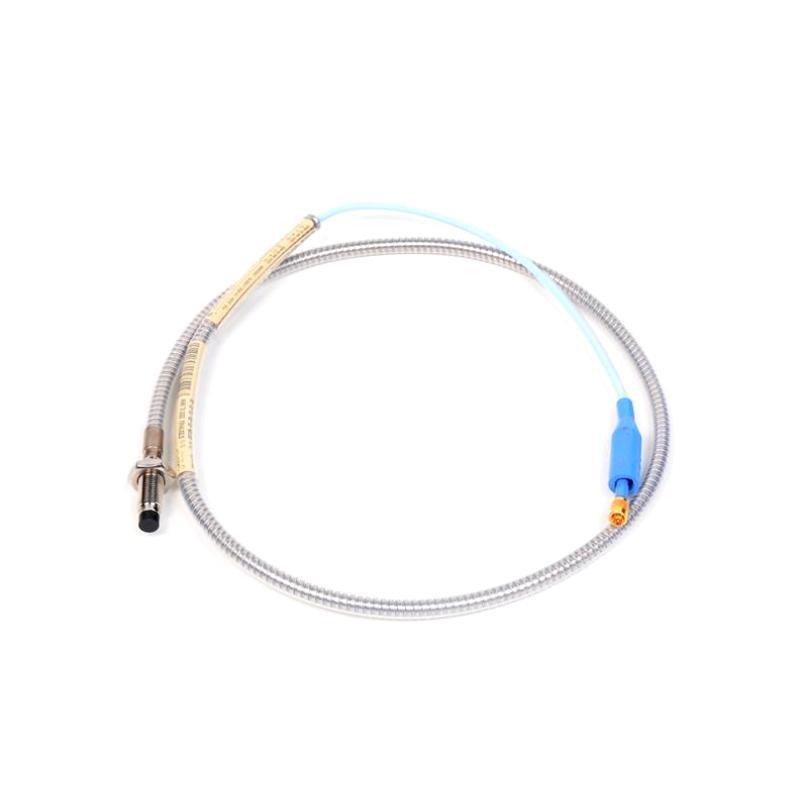

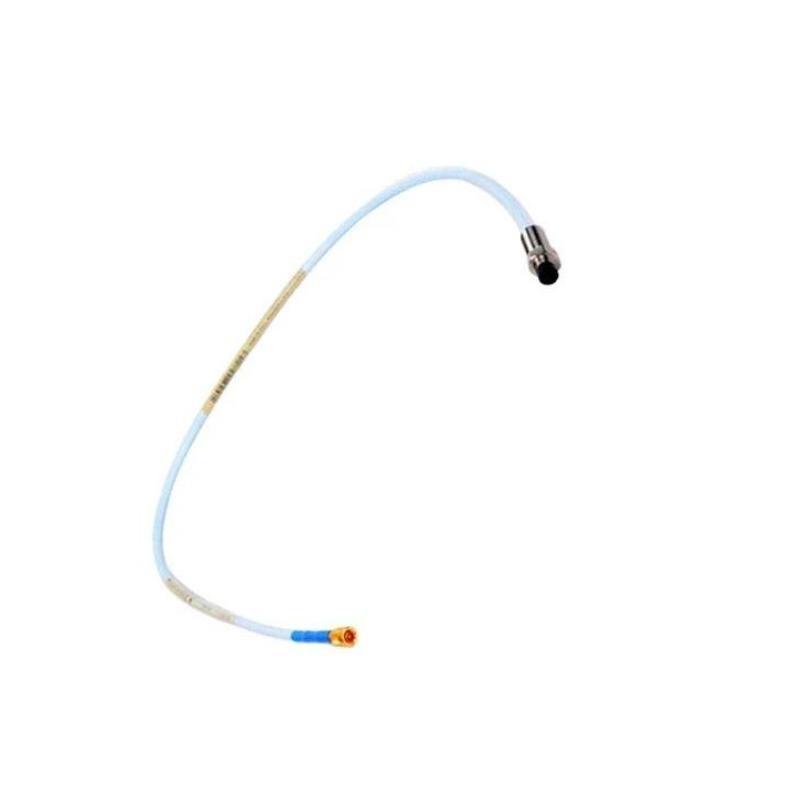

Bently Nevada 330104-05-10-50-02-00 8 mm 3300 XL Eddy-Current Proximity Probe Original

Brand：Bently Nevada

Item No.：330104-05-10-50-02-00

Product Type：8 mm 3300 XL Eddy-Current Proximity Probe

Product Origin：USA

Dimensions：100 mm case length; 8 mm probe tip diameter

Weight：0.95 kg (with 5.0 m armored cable)

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original imported channel supply, support for testing instructions, worry-free after-sales

The model covers a wide range, and the delivery is efficient. Welcome to contact us for information!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the main function of the 330104-05-10-50-02-00 probe?
It measures shaft vibration, displacement, and position in rotating machinery using non-contact eddy-current technology.

What do the model number segments represent?
05 = 5 mm unthreaded length, 10 = 100 mm case length, 50 = 5.0 m system length, 02 = armored connector, 00 = no approvals.

What materials are used in the probe?
The probe tip is PPS, and the body is stainless steel with an armored cable for protection.

What temperature range can the probe operate in?
It operates from –52 °C to +177 °C.

Which proximitor is compatible with this probe?
It is designed for use with the 3300 XL Proximitor for accurate displacement and vibration monitoring.

Does the probe meet any certification standards?
No, the “00” designation indicates there are no specific agency approvals.

What is the typical measurement sensitivity?
It provides about 200 mV/mil with a linear range between 0.25 and 2.5 mm.

What are the physical dimensions and weight of the probe?
It has a 100 mm case length, an 8 mm tip diameter, and weighs around 0.95 kg including the 5.0 m armored cable.
