Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

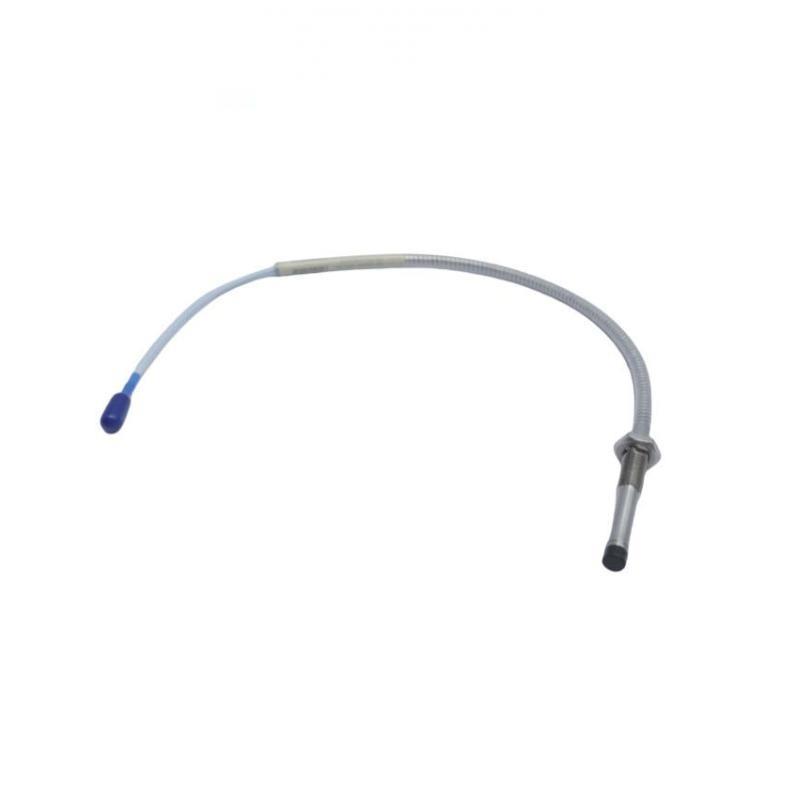

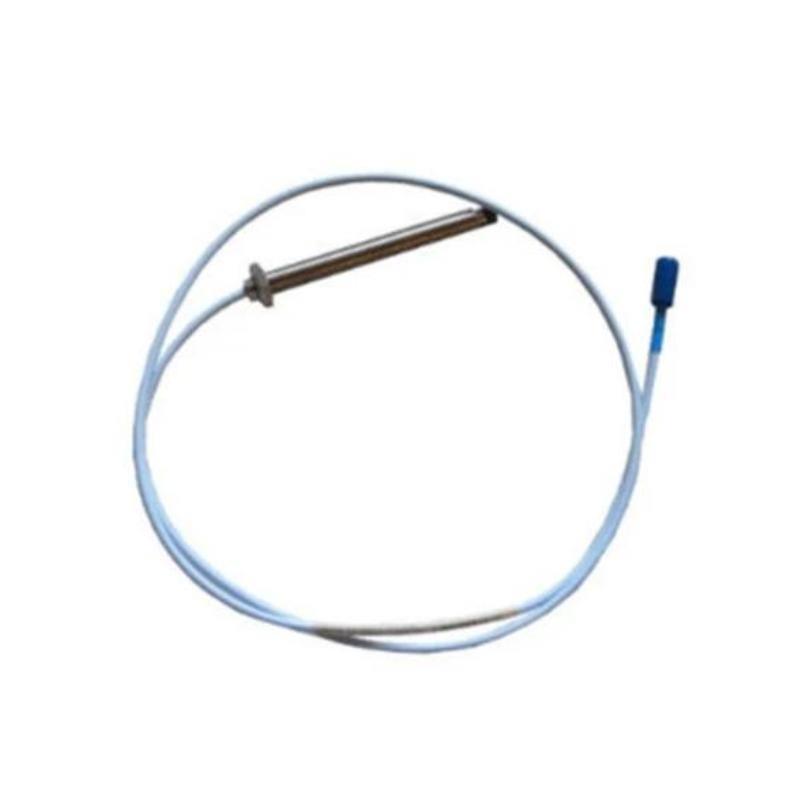

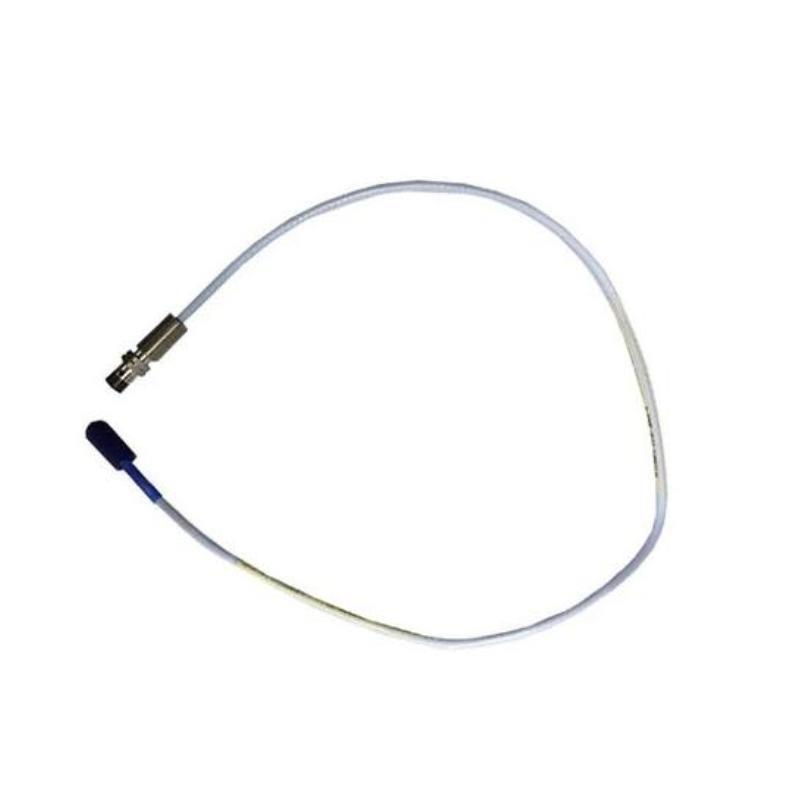

Bently Nevada 330104-02-16-10-02-05 8 mm 3300 XL Eddy-Current Proximity Probe Original

Brand：Bently Nevada

Item No.：330104-02-16-10-02-05

Product Type：8 mm 3300 XL Eddy-Current Proximity Probe

Product Origin：USA

Dimensions：160 mm case length; 8 mm probe tip diameter

Weight：0.65 kg (with 1.0 m armored cable)

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Regular source, test instructions can be coordinated, and after-sales service continues to follow up

Regular models are in stock for a long time, and the inventory is stable. Welcome to inquire about the price!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the main application of the 330104-02-16-10-02-05 probe?
It provides non-contact monitoring of shaft vibration, position, and displacement in turbines, compressors, generators, and other rotating machinery.

What does each part of the model number indicate?
02 = 2 mm unthreaded length, 16 = 160 mm case length, 10 = 1.0 m probe system length, 02 = armored miniature connector, 05 = Chinese certification package.

Is this probe suitable for industrial environments?
Yes, the armored cable and stainless-steel housing make it highly resistant to oil, vibration, and mechanical stress.

What system is this probe designed to work with?
It is intended for use with the 3300 XL Proximitor Sensor for accurate displacement and vibration measurements.

What is the operating temperature range?
The probe works reliably between –52 °C and +177 °C.

Does this model include certification?
Yes, the “05” code indicates a Chinese certification option.

What is the typical output when paired with a Proximitor?
It produces a voltage signal proportional to the gap and shaft displacement.

What are the physical size and weight of the probe?
It has a 160 mm case length, 8 mm tip diameter, and weighs about 0.65 kg including the 1.0 m armored cable.
