Product Introduction

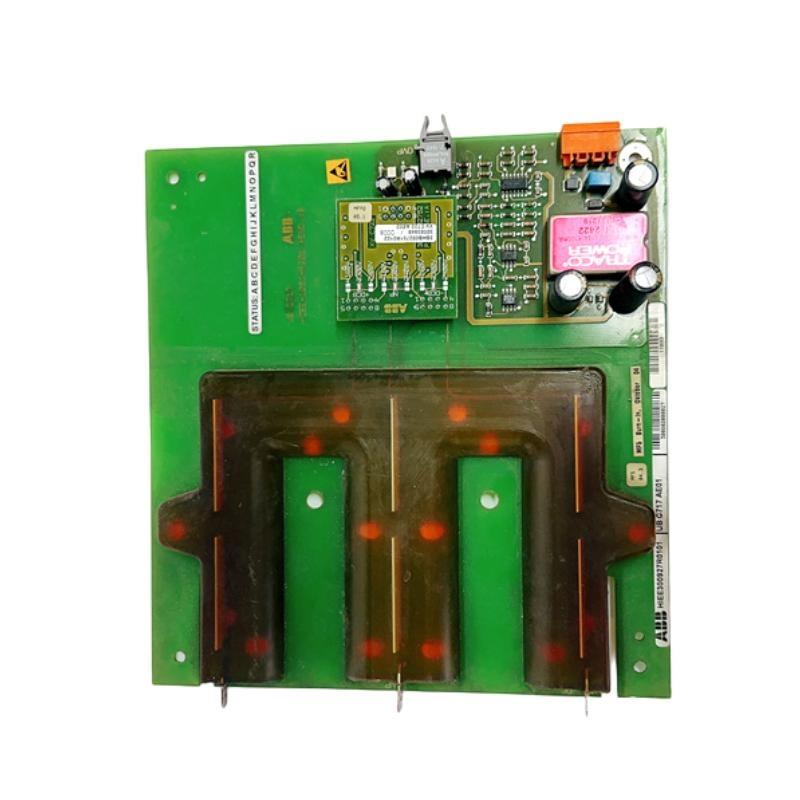

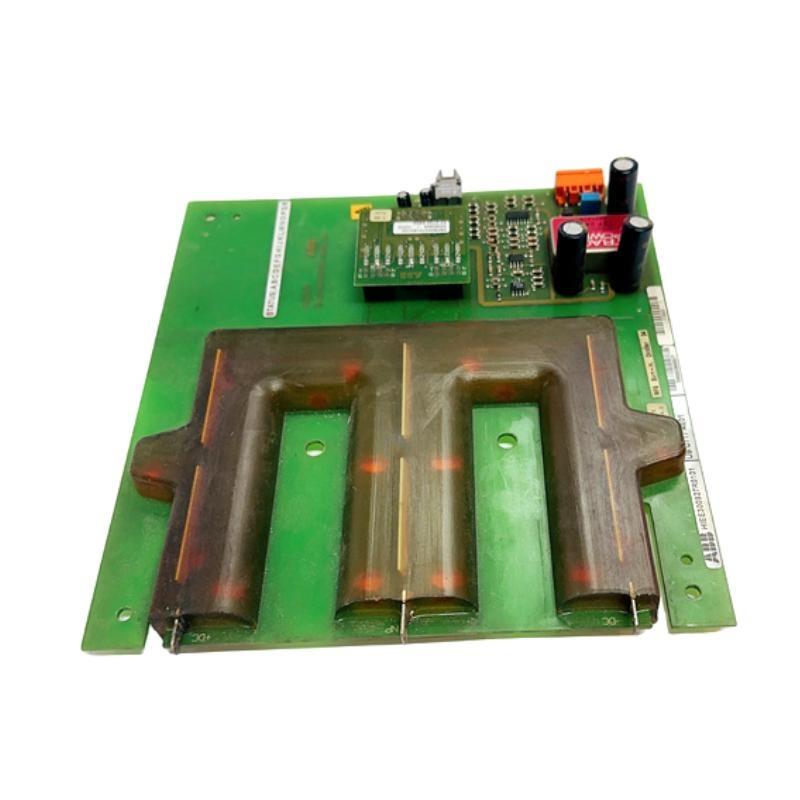

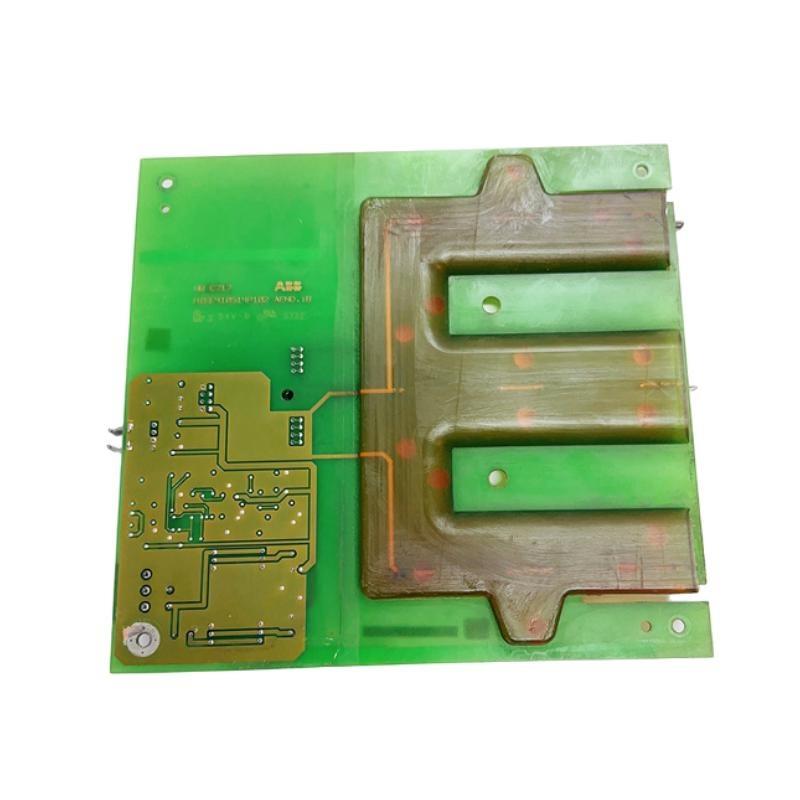

ABB UB C717 AE101 HIEE300927R0101 High Voltage Inverter Main Board Fast Shipping!

Brand：ABB

Item No.：UB C717 AE101 HIEE300927R0101

Product Type：High Voltage Inverter Main Board

Product Origin：Sweden (SE)

Dimensions：180 × 150 × 35 mm

Weight：0.9 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original imported channel source, support test instructions, worry-free after-sales

Large stock, diverse series, adapted to different working conditions, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the input voltage range for this inverter board?
The ABB UB C717 AE101 main board supports an input voltage range of 380–480 V AC.

What type of control does this inverter board use?
It uses digital PWM (Pulse Width Modulation) control for efficient power conversion.

Can this board handle overcurrent or short circuit conditions?
Yes, the board includes overcurrent, overvoltage, and short circuit protection features.

What cooling methods are employed for this board?
The board uses a combination of forced air and heat sinks for thermal management.

What is the switching frequency range of this inverter board?
The switching frequency is adjustable between 4 kHz and 16 kHz depending on application requirements.

Is this main board compatible with ABB high voltage inverter systems?
Yes, it is specifically designed for ABB high voltage inverter applications.

What material is the PCB made of?
The board is made of high-quality FR4 composite PCB material suitable for high voltage applications.

Does the board support high voltage output?
Yes, it is engineered to handle high voltage AC output reliably for industrial inverter systems.
