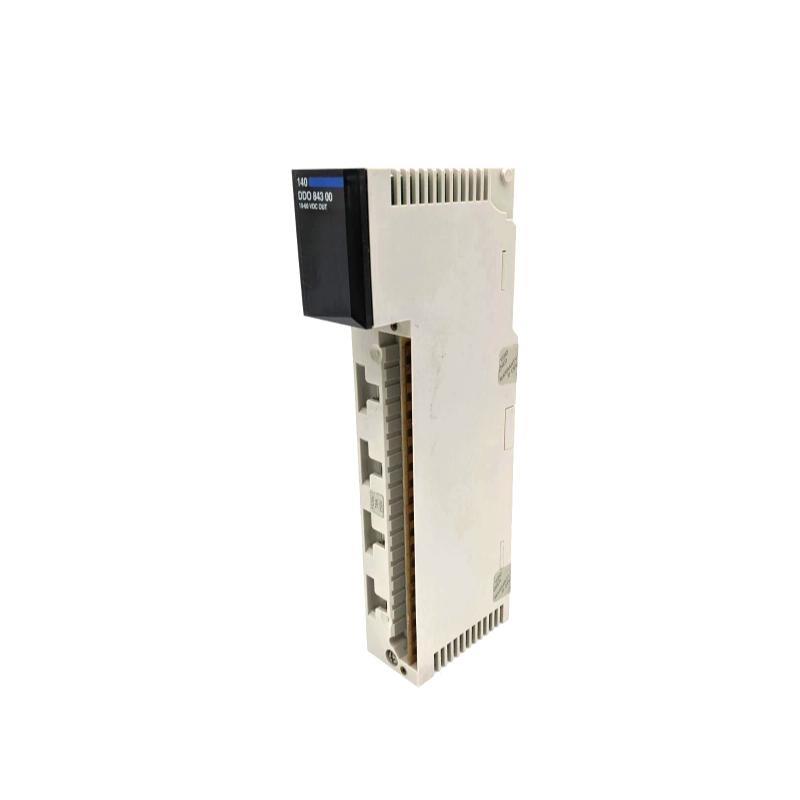

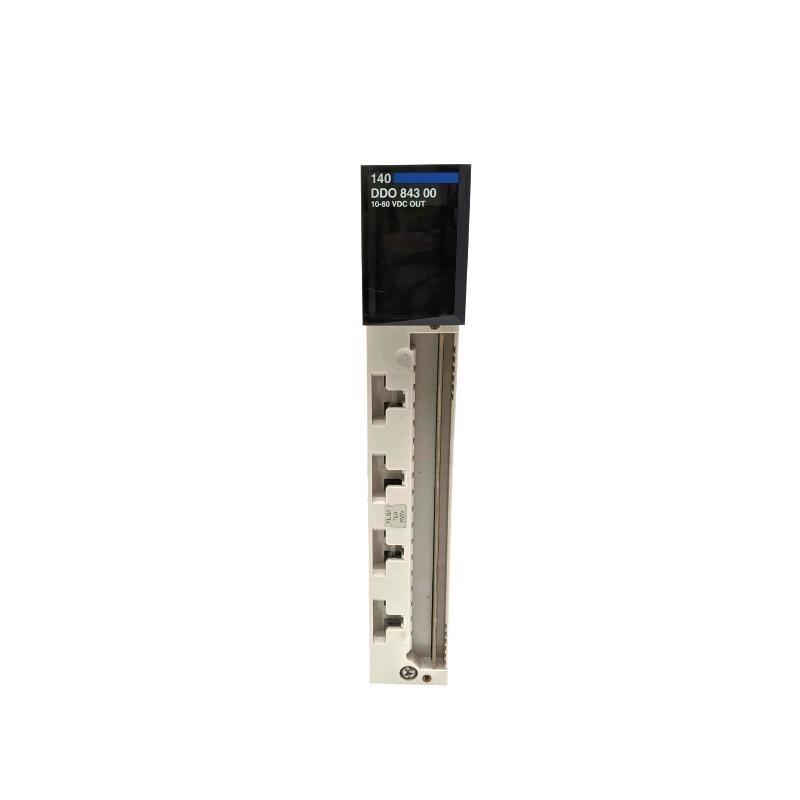

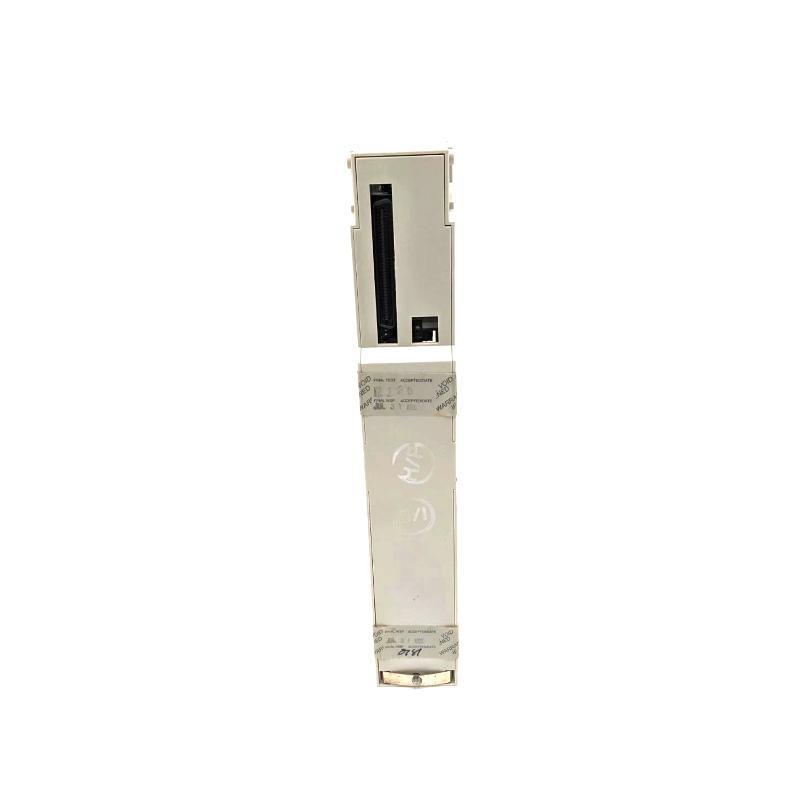

Schneider 140DD084300 DC Discrete Output Module Unbelievable Prices!

FAQ

What is the primary function of the 140DD084300?
It provides multiple DC discrete output channels to control actuators, indicators, and other field devices in industrial automation systems.

How many output channels are available on this module?
There are 16 discrete output channels arranged in two groups of 8.

What voltage range and current ratings does this output module support?
It supports 10–60 V DC output voltage, with up to 12 A total load current per module and 6 A per output group.

What type of logic does the module use for its outputs?
The outputs use positive logic (sourcing), meaning they source current to the load when active.

Does the module include protection for outputs?
Yes, it has internal fuse protection for each output group to protect against overcurrent.

How fast can the outputs respond?
The module has a fast response time of less than 1 millisecond for switching outputs.

What are the physical dimensions and weight of this module?
The module measures approximately 47 mm × 163 mm × 309 mm and weighs about 0.45 kg.

In what temperature conditions can this module operate?
It operates reliably from 0 °C up to +60 °C, with storage capability from –40 °C up to +85 °C.
