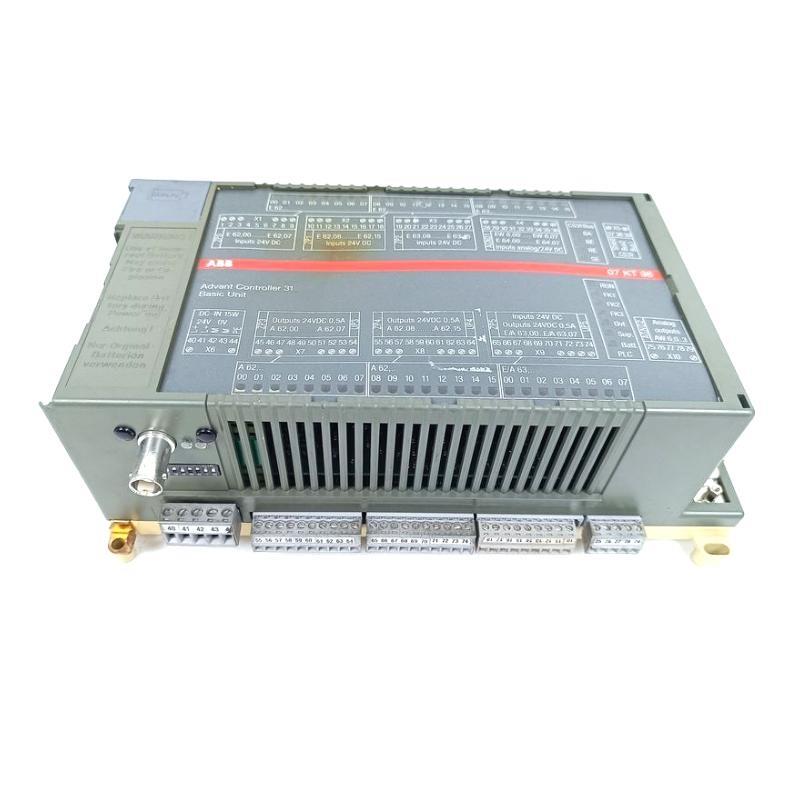

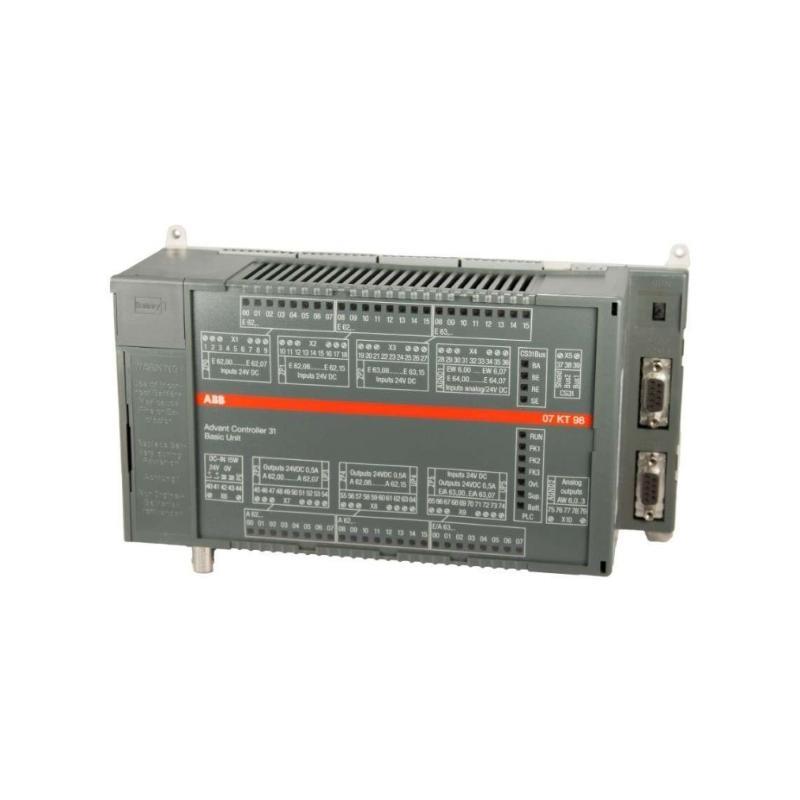

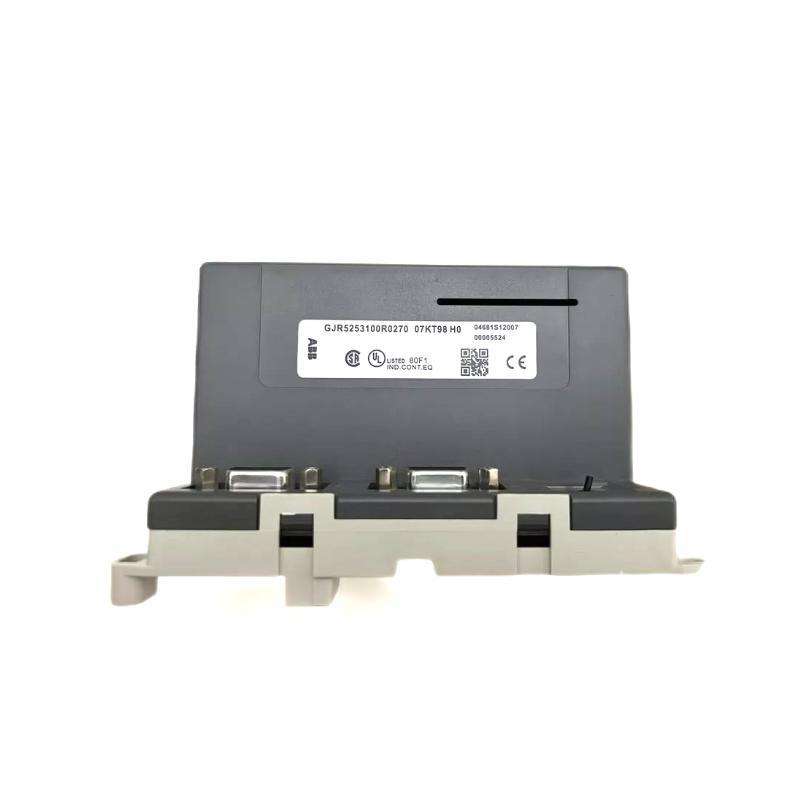

ABB 07KT98 GJR5253100R0270 Advant Controller 31 Basic Unit 30-Day Returns！

Frequently Asked Questions (FAQ)

What is the primary function of the ABB 07KT98 GJR5253100R0270?

It is an industrial automation controller designed to manage and process input/output signals in manufacturing, energy, and infrastructure applications.

What is the power supply requirement for this unit?

It operates on 24 V DC.

How many digital and analog I/Os does this model support?

It supports 24 digital inputs, 16 digital outputs, 8 digital I/Os, 8 analog inputs, and 4 analog outputs.

Can this controller communicate via MODBUS?

Yes, it has two serial MODBUS interfaces (COM1 and COM2).

Is the ABB 07KT98 suitable for use in standalone applications?

Yes, it can function as a stand-alone controller, a bus master, or a remote processor.

Does it support real-time clock functionality?

Yes, it has an integrated real-time clock.

What expansion options are available?

The CS31 system bus allows expansion up to 992 digital I/Os and 224 analog I/Os.

What memory storage options does it have?

It features 1 MB user program memory, 1 MB user data, 256 kB RETAIN, and a SmartMedia Card slot.

How is program modification performed?

Programming and modifications are done using ABB’s 907 AC 1131 software.

What are the dimensions and weight of this unit?

The dimensions are 240 x 140 x 85 mm, and it weighs 1.6 kg.
