Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

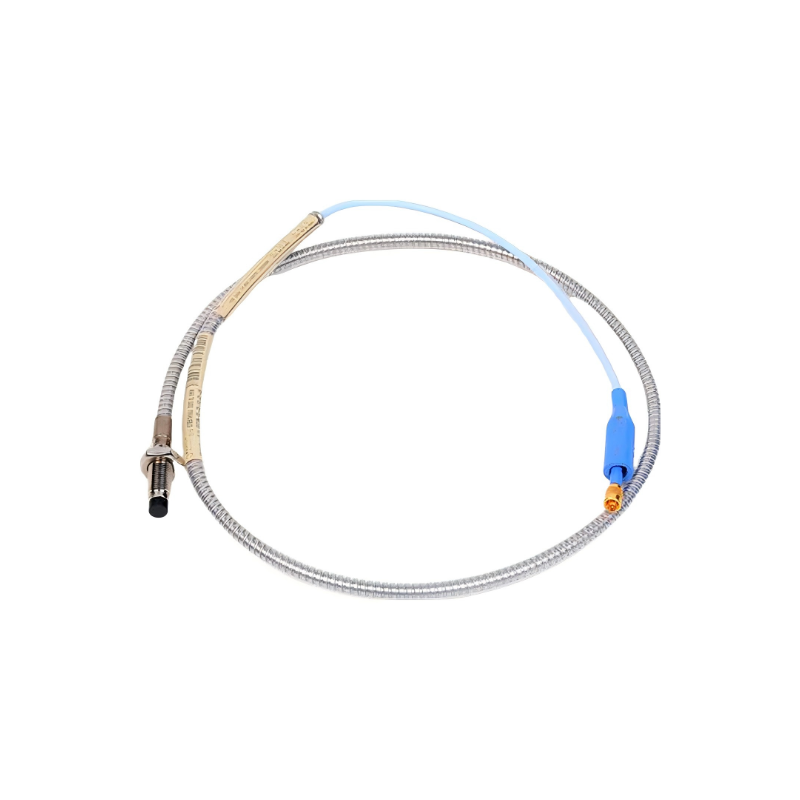

Bently Nevada 330104-00-24-50-02-00 8 mm 3300 XL Eddy-Current Proximity Probe New In Stock

Brand：Bently Nevada

Item No.：330104-00-24-50-02-00

Product Type：8 mm 3300 XL Eddy-Current Proximity Probe

Product Origin：USA

Dimensions：240 mm case length; 8 mm probe tip diameter

Weight：1.05 kg (with 5.0 m armored cable)

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original import channel source, support for testing instructions, worry-free after-sales

A wide range of spot models supports fast docking of procurement needs, welcome to inquire for details!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the primary application of the 330104-00-24-50-02-00 probe?
It is used for non-contact shaft displacement, vibration, and position monitoring in rotating machinery such as turbines, compressors, and pumps.

What do the digits in the model number represent?
00 = no unthreaded length, 24 = 240 mm case length, 50 = 5.0 m total system length, 02 = armored miniature coaxial connector, 00 = no agency approvals.

What materials are used in this probe?
The probe tip is made of PPS, and the housing is stainless steel with armored cabling for durability.

What is the operating temperature range?
The probe operates reliably from –52 °C to +177 °C.

What type of signal does the probe provide?
When paired with a 3300 XL Proximitor, it outputs a voltage proportional to the gap between the probe tip and the rotating shaft.

Does this model include any hazardous-area certifications?
No, the “00” code indicates that no agency approvals are included.

What is the measurement sensitivity?
It provides a typical sensitivity of approximately 200 mV/mil with a linear measurement range of 0.25–2.5 mm.

What are the physical dimensions and weight?
It has a 240 mm case length, 8 mm probe tip diameter, and weighs approximately 1.05 kg including the 5.0 m armored cable.
