Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

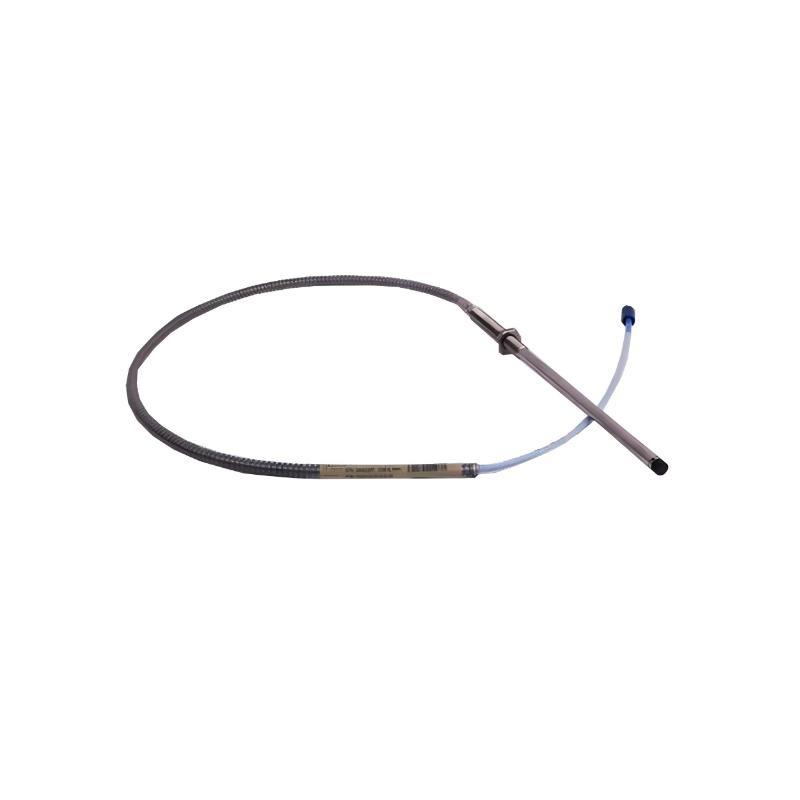

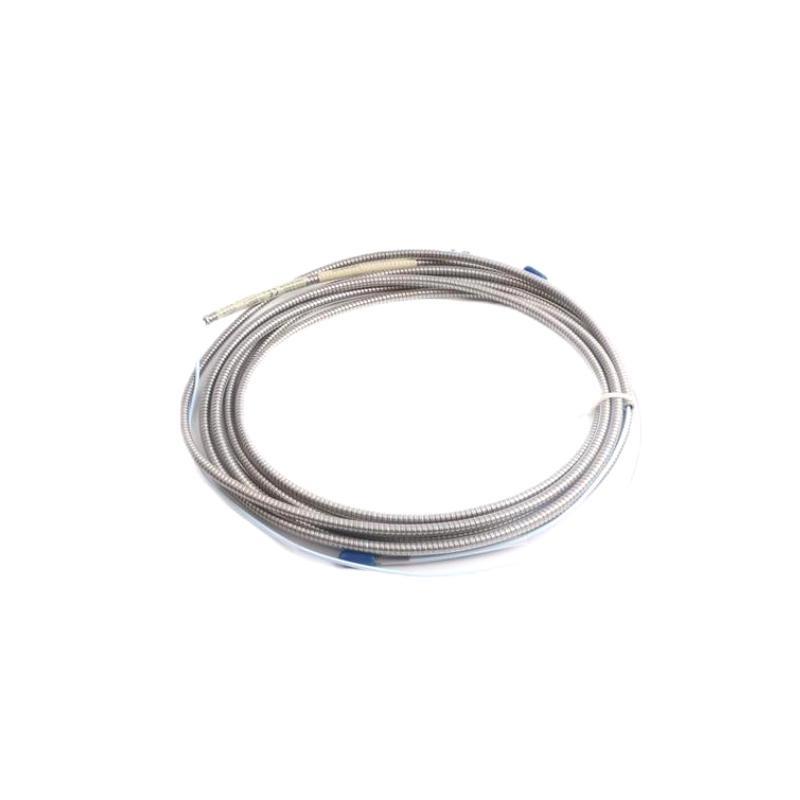

Bently Nevada 330104-00-14-10-02-CN 8 mm 3300 XL Eddy-Current Proximity Probe Unbelievable Prices!

Brand：Bently Nevada

Item No.：330104-00-14-10-02-CN

Product Type：8 mm 3300 XL Eddy-Current Proximity Probe

Product Origin：USA

Dimensions：Probe case length 140 mm; 8 mm tip diameter

Weight：0.60 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

The product source is clear and reliable, supports third-party testing, and has complete after-sales support

The model is complete, and the inventory is updated in real time. Welcome to get the latest list!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the main application of the 330104-00-14-10-02-CN probe?
It is used for non-contact measurement of shaft displacement and position in rotating machinery such as turbines, compressors, and pumps.

What does each segment of the model number indicate?
“00” = unthreaded length 0 mm; “14” = 140 mm case length; “10” = 1.0 m cable; “02” = armored miniature connector; “CN” = China certification.

What materials are used in the probe?
The probe tip is PPS, and the housing is stainless steel with armored construction for durability.

What is the operating temperature range?
It operates from –52 °C to +177 °C.

What type of output does the probe provide?
When connected to a compatible 3300 XL Proximitor, it produces a voltage proportional to the gap between the probe tip and the shaft.

Is this probe suitable for hazardous-area applications?
The “CN” marking indicates China certification; hazardous-area suitability depends on local regulations.

What is the typical measurement sensitivity?
Typical sensitivity is ~200 mV/mil (≈7.87 V/mm) with a linear range of 0.25–2.5 mm.

What are the physical dimensions and weight specifications?
The probe has a 140 mm case length, 8 mm tip diameter, and weighs approximately 0.60 kg including the 1.0 m armored cable.
