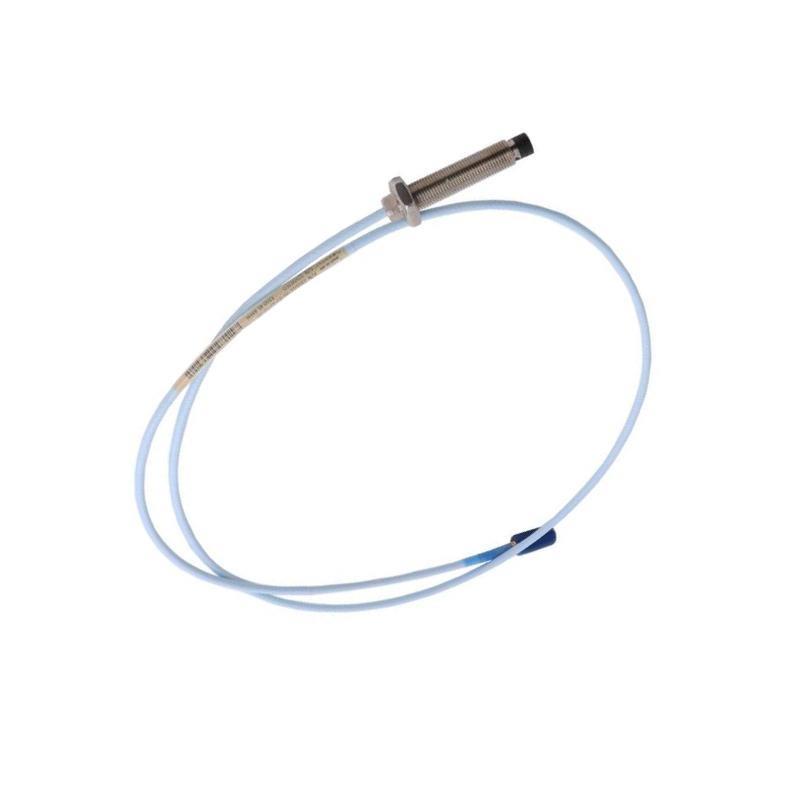

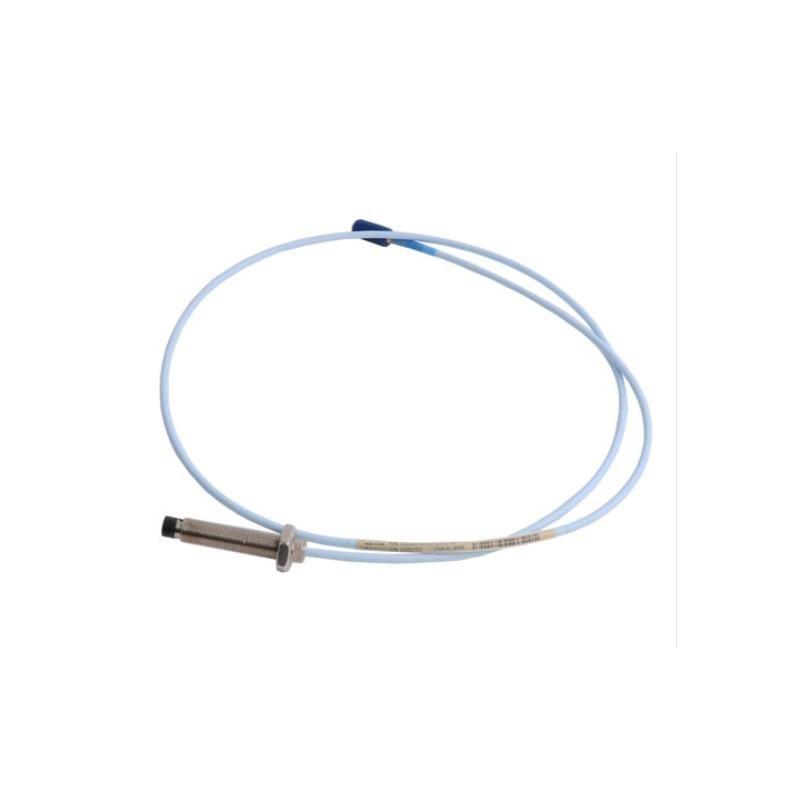

Bently Nevada 330171-12-23-10-01-00 3300 Series 5 mm Eddy-Current Proximity Probe New In Stock

FAQ

What is the main function of the 330171-12-23-10-01-00 proximity probe?
It is used to measure shaft vibration, displacement, and axial position in rotating machinery.

What does the “330171” series designation indicate?
It identifies a 3300 Series 5 mm eddy-current proximity probe designed for industrial condition monitoring systems.

What does the “12-23-10-01-00” configuration mean?
It specifies a 12 mm unthreaded length, a 23 mm probe body length, a 1.0 m integral cable, a standard connector, and a standard configuration without special approvals.

Which monitoring systems are compatible with this probe?
The probe is compatible with Bently Nevada 3300 XL Proximitor Sensors and associated monitoring modules.

Can this probe be used in harsh industrial environments?
Yes, the stainless-steel housing and rugged design allow reliable operation in oil-contaminated and high-vibration environments.

What type of output signal does this probe provide?
It provides an analog voltage output proportional to the measured shaft displacement or vibration.

What is the operating temperature range of this proximity probe?
The probe operates reliably from –35 °C to +177 °C.

What are the physical dimensions and weight of the probe?
The probe has a 5 mm tip diameter, a 23 mm body length, a 12 mm unthreaded section, a 1.0 m cable, and weighs approximately 0.33 kg.
