Product Details

Honeywell Experion PKS ( C200, C300 ) is one of the most important DCS system. Original New Control processor, Control Interface, Redundancy Module, I/O Link Interface Module, PM I/O, FTA, FSC Module, UCN Board are provided

Product Introduction

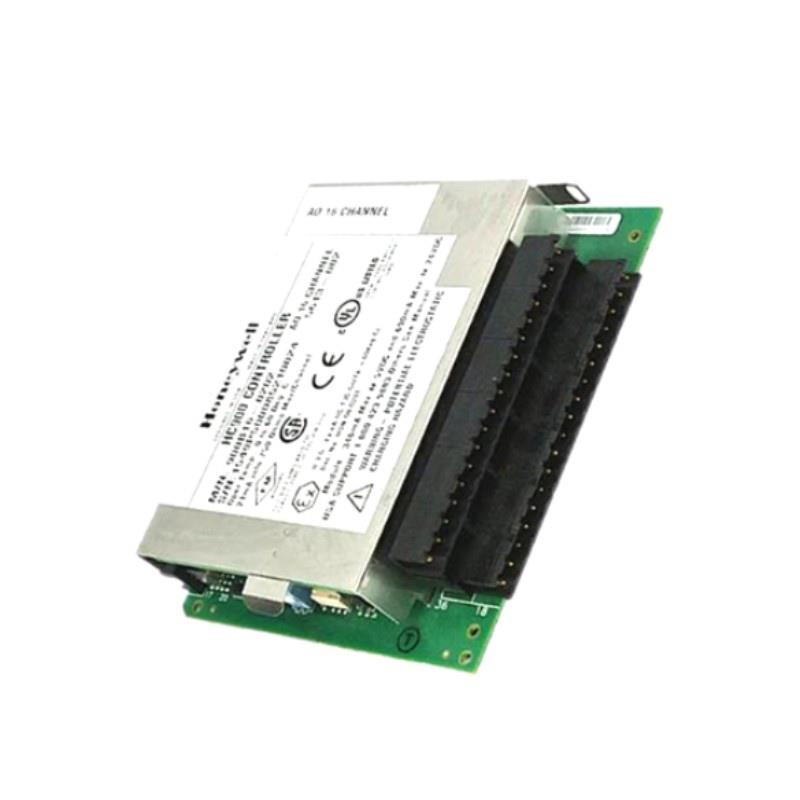

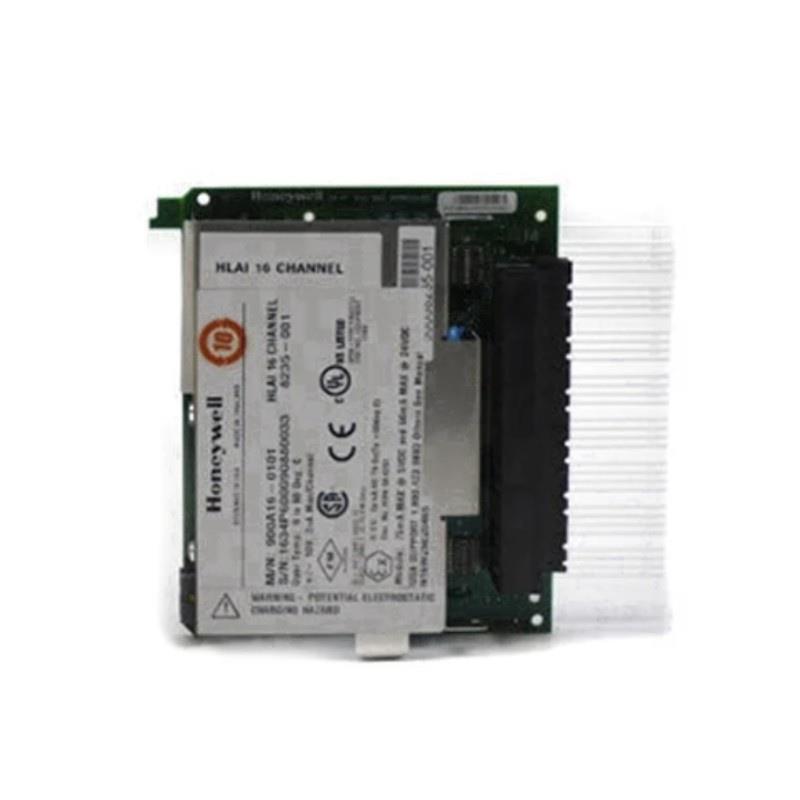

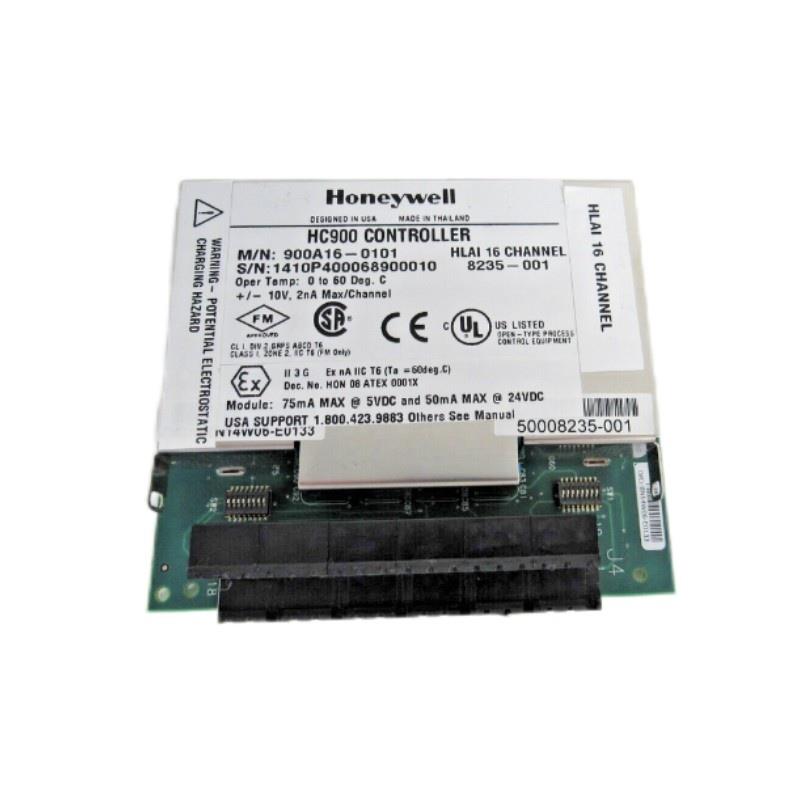

Honeywell 900A16-0101 50008235-001 HC900 High-Level Analog Input Module 100% New

Brand：Honeywell

Item No.：900A16-0101 50008235-001

Product Type：HC900 High-Level Analog Input Module

Product Origin：USA

Dimensions：137 x 35.6 mm

Weight：0.397kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original imported channel supply, support for testing instructions, worry-free after-sales

The model covers a wide range, and the delivery is efficient. Welcome to contact us for information!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What types of input signals are supported by this module?
It supports current input (0-20 mA, 4-20 mA) and voltage input (0-10 VDC), configurable during setup.

Is there electrical isolation between input signals and the system bus?
Yes, the module provides isolation between channels and the system bus for reliability and noise immunity.

What is the resolution of the module?
It uses a 16-bit A/D converter, providing high measurement accuracy.

What is the typical update rate for each channel?
The typical update rate is 100 ms per channel, suitable for process control applications.

What should be considered during installation?
Ensure proper insertion into the HC900 chassis or DIN rail, with secure backplane connection and adequate ventilation.

Can the module operate in harsh environments?
Yes, it supports an operating temperature range of 0~60℃ and is designed for vibration and EMI resistance.

Can this module be used together with other HC900 modules?
Yes, it can be combined with input, output, and communication modules within the HC900 system.

Does the module require an independent power supply?
No, it is powered directly by the HC900 system bus at 24VDC.
