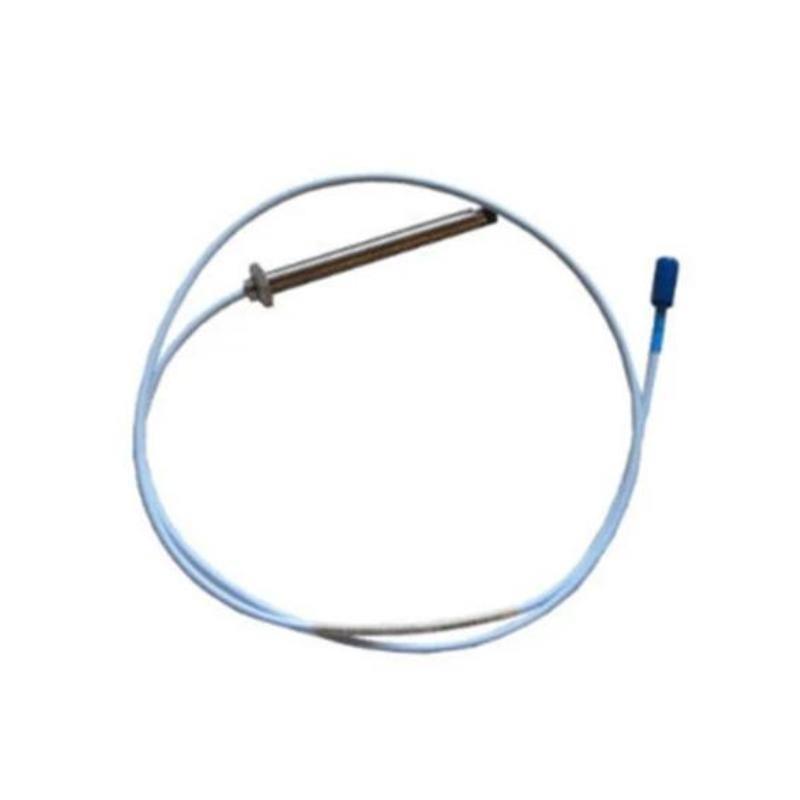

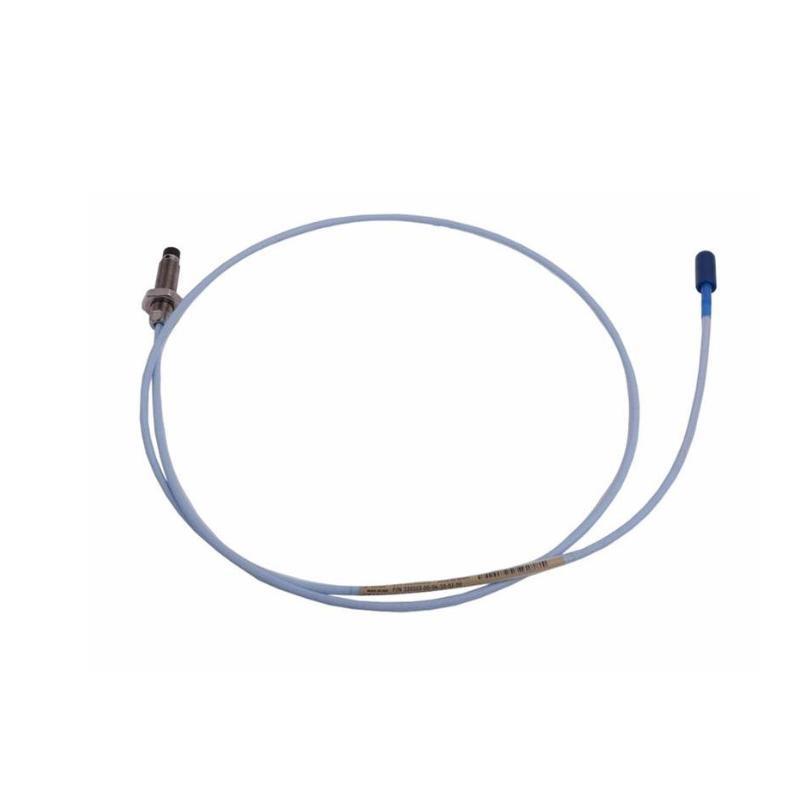

Bently Nevada 330104-00-13-50-02-05 8 mm 3300 XL Eddy-Current Proximity Probe 30-Day Returns！

Bently Nevada 330104-00-13-50-02-05 8 mm 3300 XL Eddy-Current Proximity Probe 30-Day Returns！

0.0

Points

100% Original and Authentic.
100% Brand New, Ready to ship.
Support Refund, 7X24h Service.
1-Year Warranty on All Products.

Today's Discount: 90% 00 : 00 : 00

Low stock: 94 left

63%

Add to cart

Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

Bently Nevada 330104-00-13-50-02-05 8 mm 3300 XL Eddy-Current Proximity Probe 30-Day Returns！

Brand：Bently Nevada

Item No.：330104-00-13-50-02-05

Product Type：8 mm 3300 XL Eddy-Current Proximity Probe

Product Origin：USA

Dimensions：Probe case length 130 mm; 8 mm tip diameter

Weight：0.95 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

The source of goods is regular, the test instructions can be coordinated, and the after-sales service continues to follow up

Tens of thousands of models are in sufficient stock, and the spot is shipped quickly. Welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the primary application of the 330104-00-13-50-02-05 probe?
It is used for non-contact measurement of shaft displacement and position in rotating machinery such as turbines, compressors, and pumps.

What does each part of the model number represent?
“00” = unthreaded length 0 mm; “13” = 130 mm case length; “50” = 5.0 m cable; “02” = armored miniature connector; “05” = CSA/ATEX/IECEx approvals.

What materials are used in the probe construction?
The probe tip is PPS, and the housing is stainless steel with armored construction for durability.

What is the operating temperature range?
It operates reliably from –52 °C to +177 °C.

What type of output does the probe provide?
When paired with a compatible 3300 XL Proximitor, it produces a voltage proportional to the gap between the probe tip and the shaft.

Is this probe suitable for hazardous-area applications?
Yes, the “05” suffix indicates compliance with CSA, ATEX, and IECEx standards.

What is the typical measurement sensitivity?
Typical sensitivity is ~200 mV/mil (≈7.87 V/mm) with a linear range of 0.25–2.5 mm.

What are the physical size and weight specifications?
The probe has a 130 mm case length, 8 mm tip diameter, and weighs approximately 0.95 kg including the 5 m armored cable.
