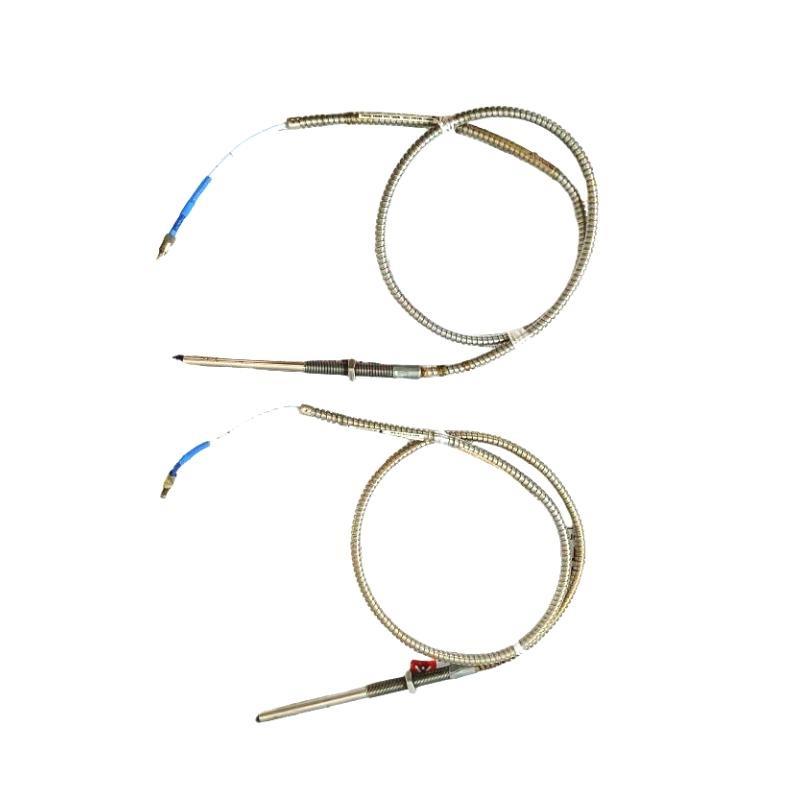

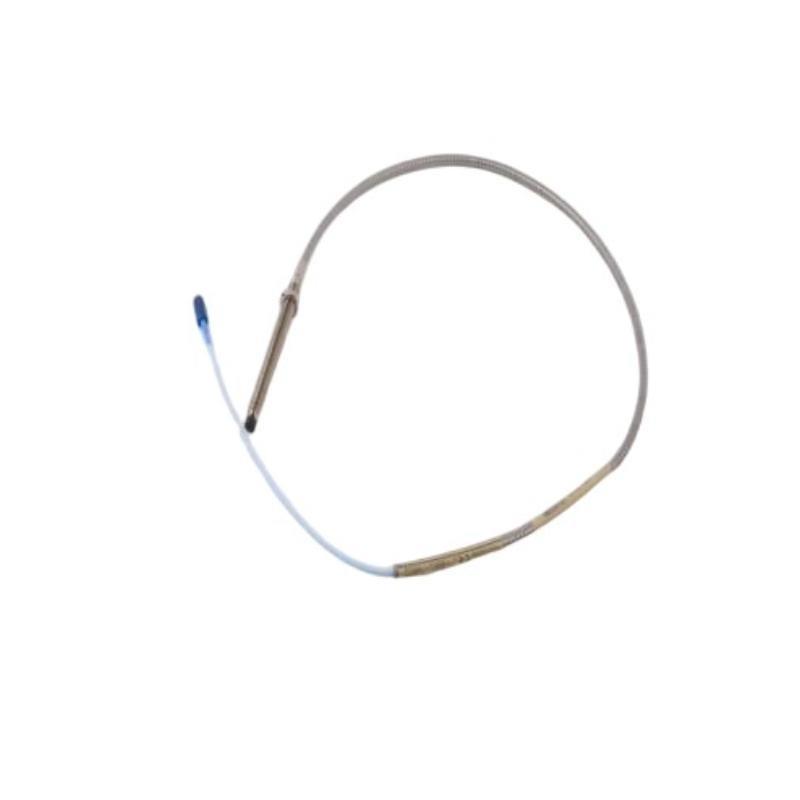

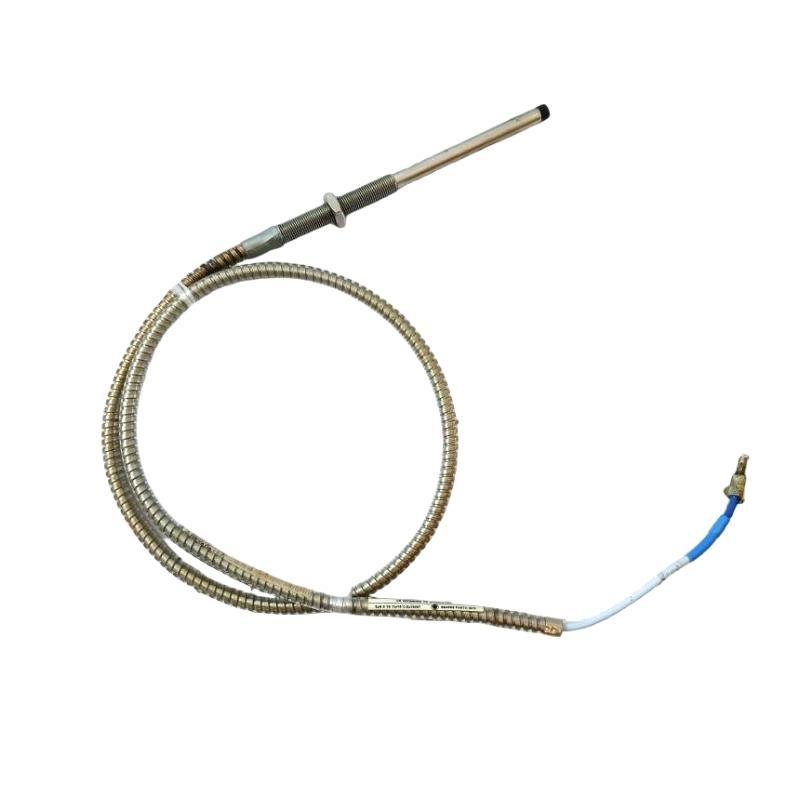

Bently Nevada 330104-00-13-05-02-00 8 mm 3300 XL Eddy-Current Proximity Probe 100% New

Bently Nevada 330104-00-13-05-02-00 8 mm 3300 XL Eddy-Current Proximity Probe 100% New

0.0

Points

100% Original and Authentic.
100% Brand New, Ready to ship.
Support Refund, 7X24h Service.
1-Year Warranty on All Products.

Today's Discount: 90% 00 : 00 : 00

Low stock: 44 left

29%

Add to cart

Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

Bently Nevada 330104-00-13-05-02-00 8 mm 3300 XL Eddy-Current Proximity Probe 100% New

Brand：Bently Nevada

Item No.：330104-00-13-05-02-00

Product Type：8 mm 3300 XL Eddy-Current Proximity Probe

Product Origin：USA

Dimensions：Technical Specifications Item Specification Model 330104-00-13-05-02-00 Type 8 mm 3300 XL Eddy-Current Proximity Probe Unthreaded Length Option 00 = 0 mm Overall Case Length 13 = 130 mm Total Probe + Cable Length 05 = 0.5 meter Connector / Cable Type 02 = Miniature coaxial connector with armor Approvals / Agency Certification 00 = Standard industrial (non-hazardous area) Probe Tip Material Polyphenylene sulfide (PPS) Probe Case Material Stainless Steel (AISI 303 or 304), armored construction Operating Temperature Range –52 °C to +177 °C Output Principle / Application Eddy-current proximity measurement for shaft position and displacement Typical Sensitivity / Linear Range ~200 mV/mil (≈7.87 V/mm), linear range ~0.25–2.5 mm Thread / Mounting M10 × 1 metric thread Dimensions Probe case length 130 mm; 8 mm tip diameter Weight ~0.50 kg (with 0.5 m armored cable)

Weight：0.50 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

The product source is clear and reliable, supports third-party testing, and has complete after-sales support

The product inventory is continuously updated, and the order needs are quickly responded to. Welcome to call for consultation!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the primary application of the 330104-00-13-05-02-00 probe?
It measures non-contact shaft displacement and position in rotating machinery such as compressors, pumps, and turbines.

What does each part of the model number represent?
“00” = unthreaded length 0 mm; “13” = 130 mm case length; “05” = 0.5 m cable; “02” = armored miniature connector; “00” = standard industrial compliance.

What materials are used in this probe?
The probe tip is PPS, and the housing is stainless steel with armored construction for durability.

What is the operating temperature range?
It operates between –52 °C and +177 °C.

What kind of output does the probe provide?
When connected to a 3300 XL Proximitor, it outputs a voltage proportional to the gap between the probe tip and the shaft.

Is this probe suitable for hazardous areas?
No, the “00” suffix indicates standard industrial use without hazardous-area certification.

What is the typical measurement sensitivity?
Typical sensitivity is ~200 mV/mil (≈7.87 V/mm) with a linear range of 0.25–2.5 mm.

What are the physical size and weight specifications?
The probe has a 130 mm case length, 8 mm tip diameter, and weighs approximately 0.50 kg including the 0.5 m armored cable.
