Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

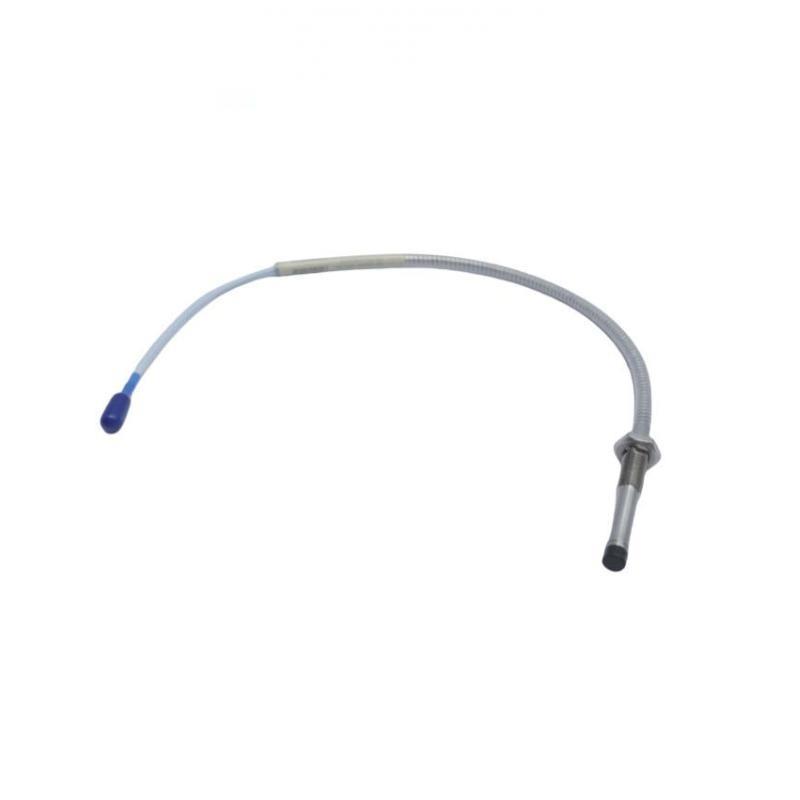

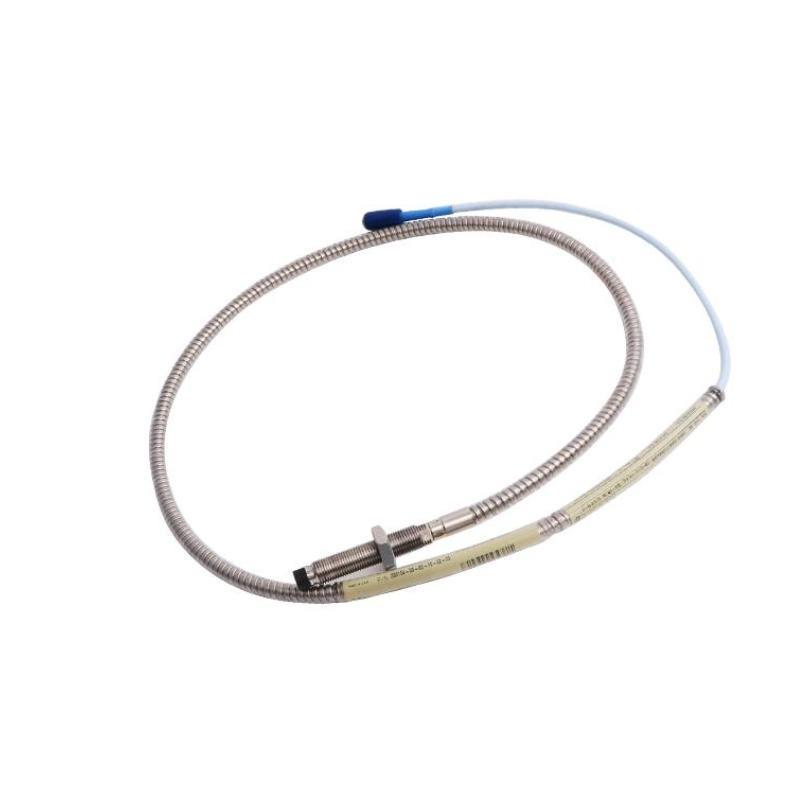

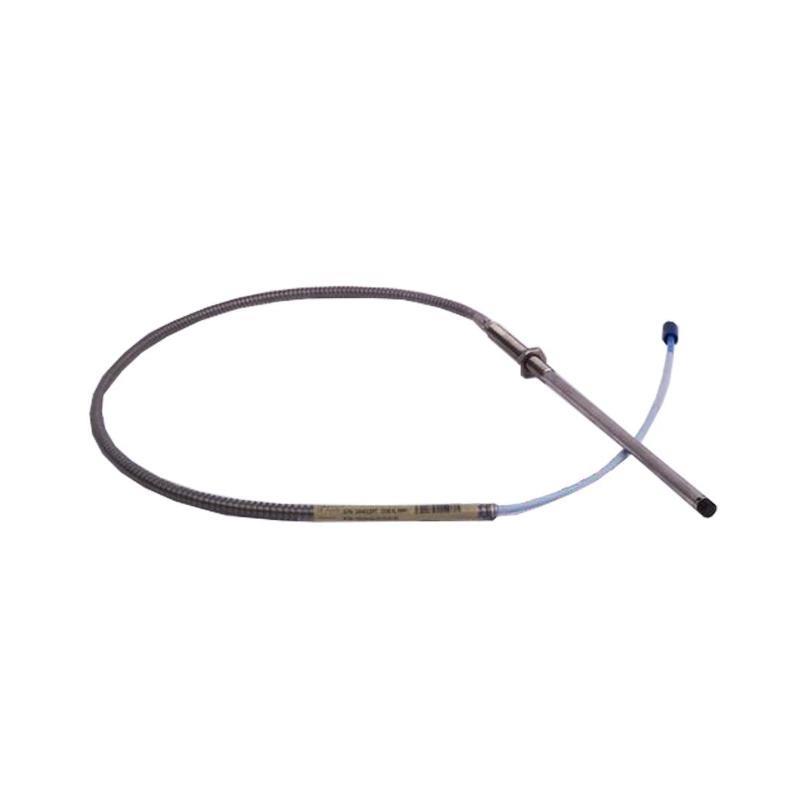

Bently Nevada 330104-00-11-90-02-00 8 mm 3300 XL Eddy-Current Proximity Probe 30-Day Returns！

Brand：Bently Nevada

Item No.：330104-00-11-90-02-00

Product Type：8 mm 3300 XL Eddy-Current Proximity Probe

Product Origin：USA

Dimensions：Probe case length 110 mm; 8 mm tip diameter

Weight：1.8 kg (with 9 m armored cable)

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Formal source, test instructions can be coordinated, and after-sales service is continuously followed up

Flexible stock of multiple models, support quick response, welcome to cooperate and exchange!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the main function of the 330104-00-11-90-02-00 probe?
It is used for non-contact measurement of shaft displacement and position in rotating machinery such as turbines, pumps, and compressors.

What does each segment of the model number represent?
“00” = unthreaded length 0 mm; “11” = 110 mm probe case; “90” = 9.0 m cable; “02” = armored miniature connector; “00” = standard industrial compliance.

What materials are used in the probe construction?
The probe tip is PPS, and the housing is stainless steel with armored construction for durability in industrial environments.

What is the operating temperature range for this probe?
It operates reliably between –52 °C and +177 °C.

What type of output does the probe provide?
Paired with a compatible 3300 XL Proximitor, it generates a voltage proportional to the distance between the probe tip and the shaft.

Is this probe suitable for hazardous-area applications?
No, the “00” suffix indicates standard industrial use without hazardous-area certification.

What is the typical sensitivity of this probe?
The system typically delivers ~200 mV/mil (≈7.87 V/mm) with a linear measurement range of 0.25–2.5 mm.

What are the size and weight specifications?
The probe has a 110 mm case length, 8 mm tip diameter, and weighs approximately 1.8 kg including the 9 m armored cable.
