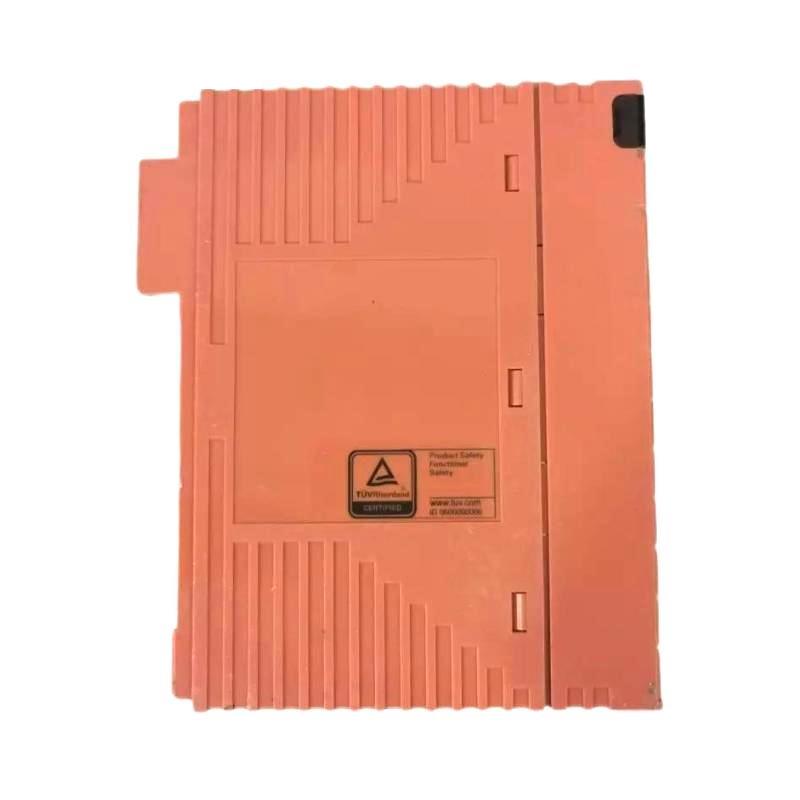

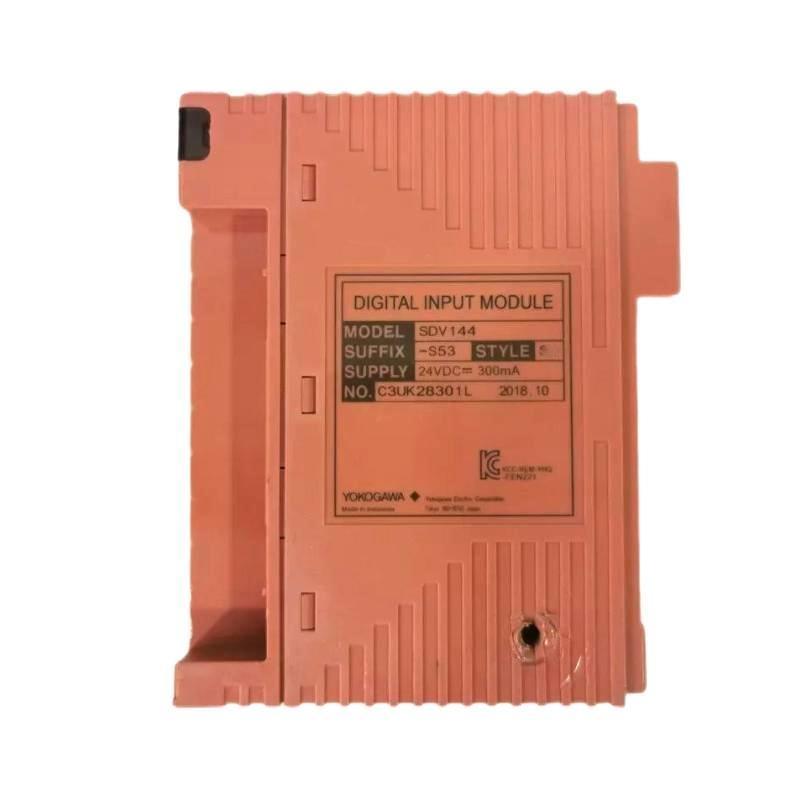

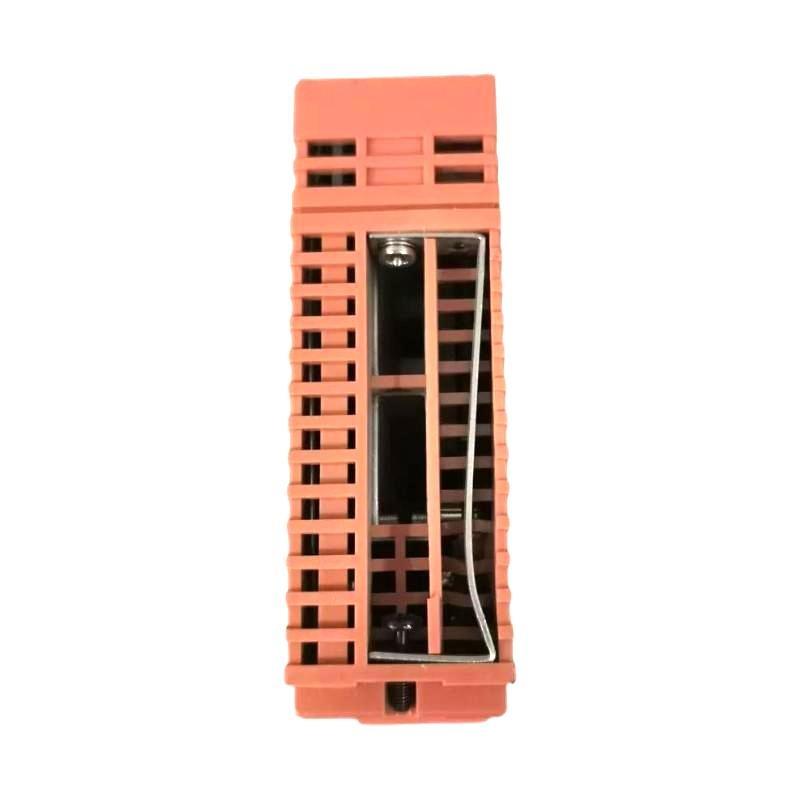

Yokogawa SDV144-S53 S2 Digital Input Module 100% New

FAQ

1. What is the nominal input voltage for the Yokogawa SDV144-S53 S2 module?

The nominal input voltage is 24V DC, with a tolerance of ±20%.

2. How many digital input channels does the SDV144-S53 S2 module support?

The module supports 16 digital input channels, all of which are isolated.

3. What is the isolation voltage between the inputs and the system?

The isolation voltage is 1500V AC, providing robust protection between the inputs and the system.

4. What is the typical input current per point for this module?

The typical input current per point is between 6 to 10 mA.

5. Can the SDV144-S53 S2 module be used in high-temperature environments?

Yes, it can operate in environments with temperatures ranging from -20°C to 60°C.

6. What is the operating temperature range for the Yokogawa SDV144-S53 S2 module?

The module operates effectively within a temperature range of -20°C to 60°C.

7. What is the MTBF (Mean Time Between Failures) for the SDV144-S53 S2 module?

The typical MTBF for this module is 100,000 hours, ensuring long-term reliability.

8. What is the size and weight of the Yokogawa SDV144-S53 S2 module?

The dimensions of the module are 130 mm x 32.8 mm x 107.5 mm, and it weighs 0.36 kg.
