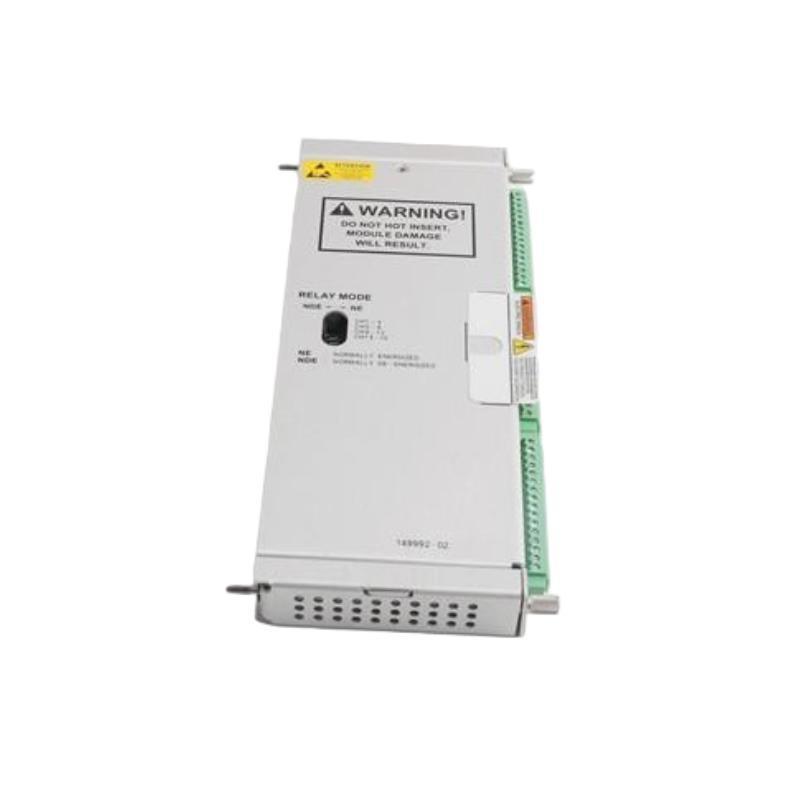

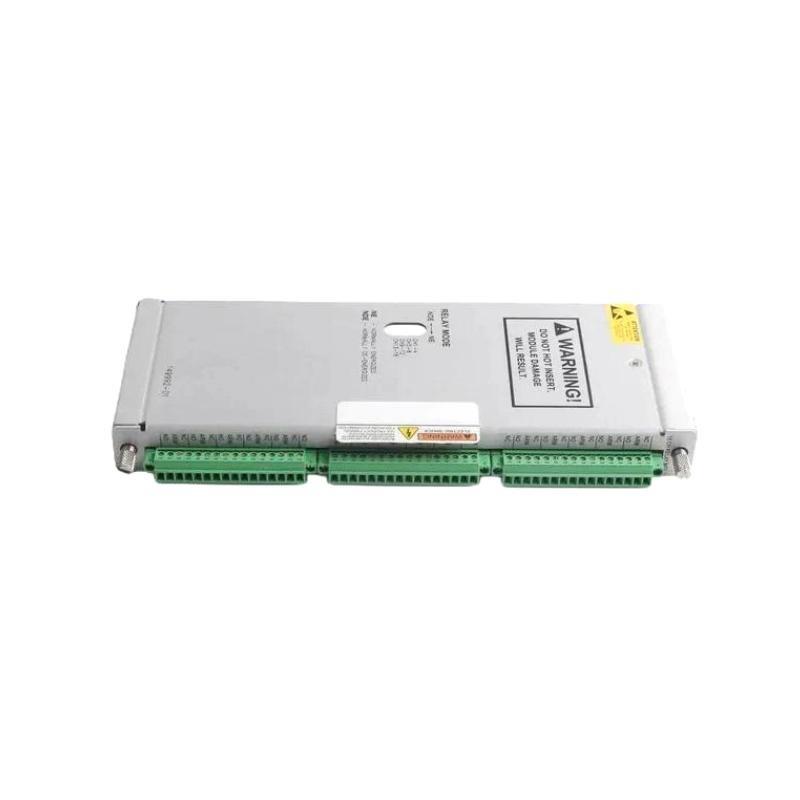

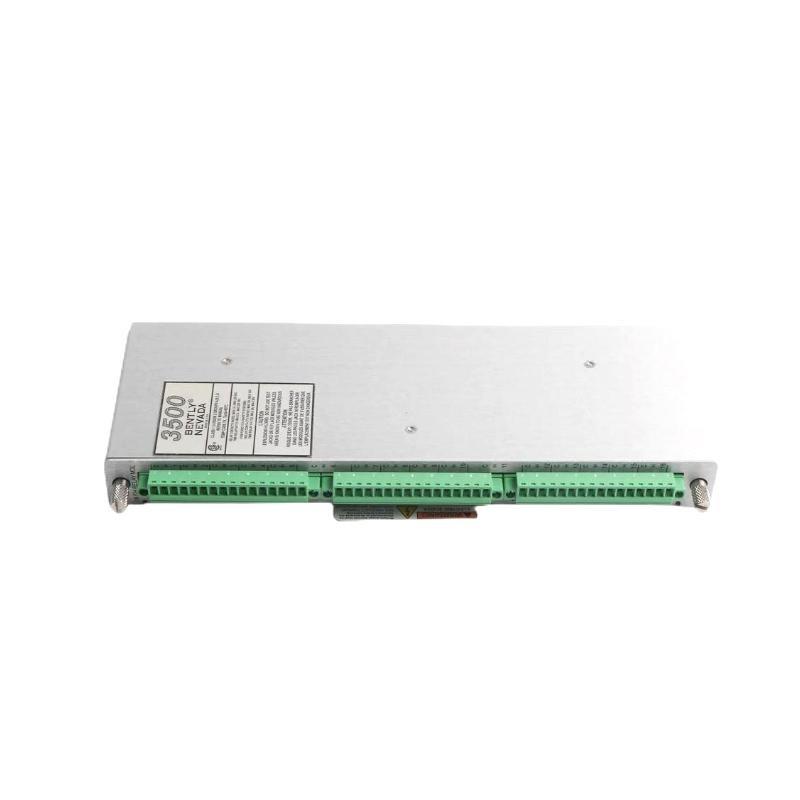

Bently Nevada 3500/33 149992-01 16-Channel Relay Module Unbelievable Prices!

FAQ

1. What is the main function of the Bently Nevada 3500/33 149992-01 Relay Module?
The Bently Nevada 3500/33 149992-01 Relay Module is designed to provide reliable protection and control for critical machinery by managing up to 16 relay channels, which handle alarm and shutdown conditions in machinery protection systems.

2. What is the maximum relay contact rating of the 3500/33 module?
The module can support a maximum relay contact rating of 2 Amps at 30 VDC and 2 Amps at 250 VAC.

3. How many channels does the Bently Nevada 3500/33 149992-01 relay module support?
It supports up to 16 relay channels for output, which are crucial for monitoring and protecting machinery.

4. What is the operating temperature range of this module?
The module operates within a temperature range of -40°C to +70°C, ensuring functionality in harsh industrial environments.

5. Can the relay configuration be adjusted?
Yes, the relay configuration can be customized through software, allowing for specific settings according to machinery protection needs.

6. What is the weight and size of the Bently Nevada 3500/33 module?
The module has a weight of 0.7 kg and dimensions of 241 x 24.4 x 242 mm, making it suitable for various mounting options.

7. What type of protection does this module offer?
The module has an IP20 protection rating, which provides protection against solid objects greater than 12 mm in diameter from the front of the module.

8. What industries would benefit from using the Bently Nevada 3500/33 149992-01 Relay Module?
Industries such as power generation, oil & gas, chemical processing, and mining will benefit from the module’s ability to monitor and protect critical machinery.
