Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

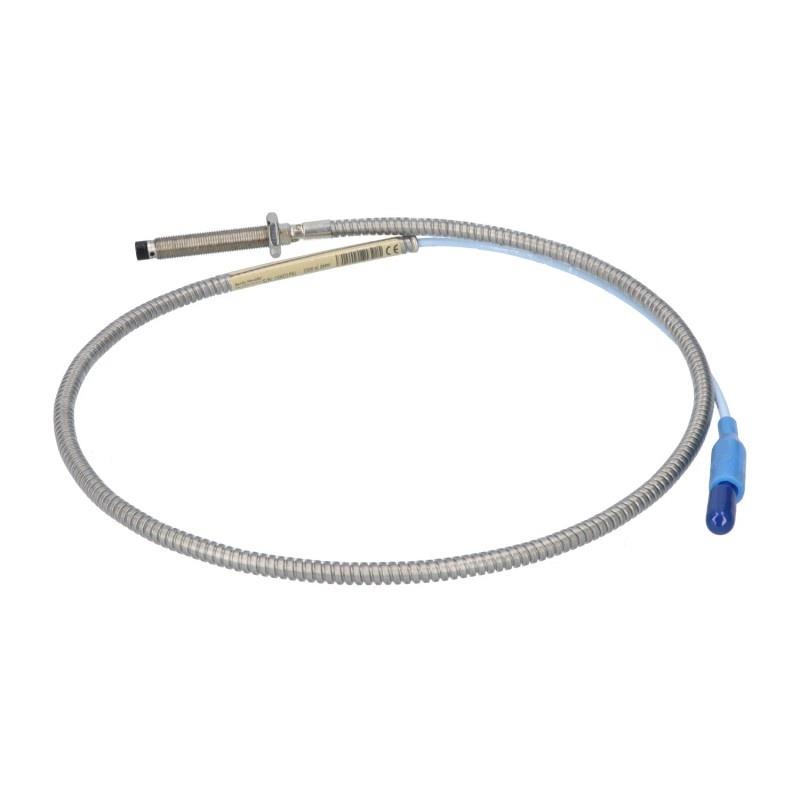

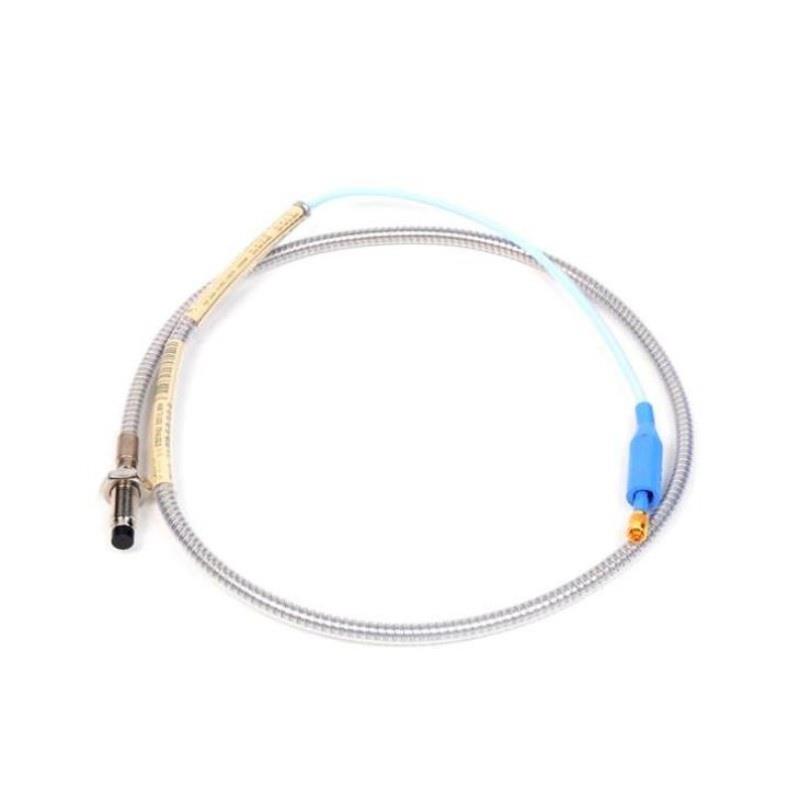

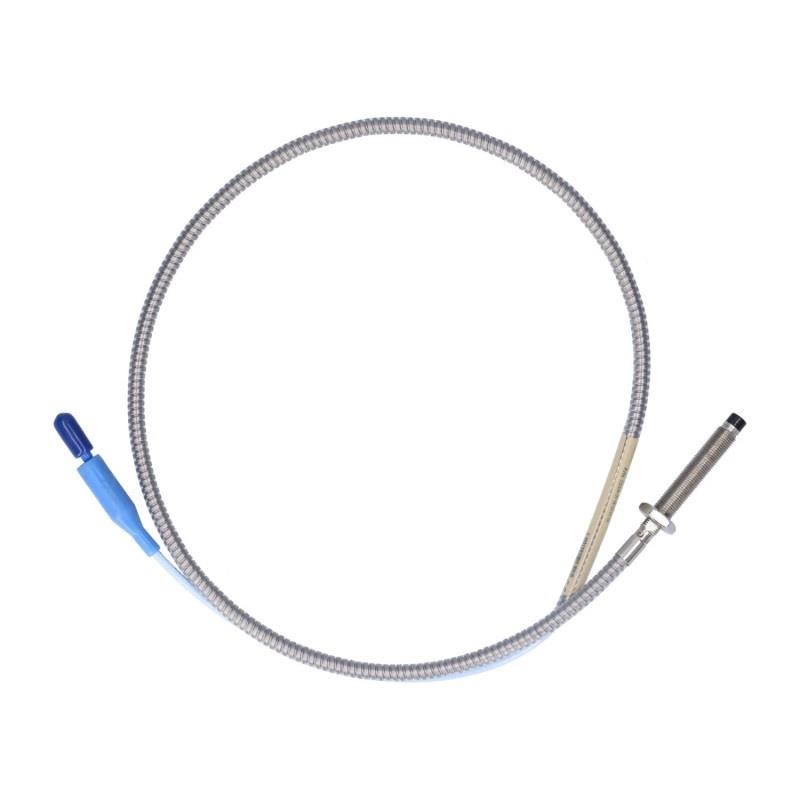

Bently Nevada 330104-00-09-05-02-CN 8 mm 3300 XL Eddy-Current Proximity Probe 30-Day Returns！

Brand：Bently Nevada

Item No.：330104-00-09-05-02-CN

Product Type：8 mm 3300 XL Eddy-Current Proximity Probe

Product Origin：USA

Dimensions：Probe case length 90 mm; 8 mm tip diameter

Weight：0.40 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Formal channels, complete test instructions, and responsive services

Ten thousand models are in stock, quickly matching needs, welcome to call for cooperation!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the main function of the 330104-00-09-05-02-CN probe?
It performs non-contact measurement of shaft displacement and position in rotating machinery.

What does each part of the model number indicate?
“00” = unthreaded length 0 mm; “09” = 90 mm probe case; “05” = 0.5 m cable; “02” = armored miniature connector; “CN” = China certification.

What materials are used in this probe?
It features a PPS tip and a stainless-steel armored housing designed for industrial durability.

What temperature range can this probe tolerate?
It operates from –52 °C up to +177 °C.

What kind of signal does the probe produce?
When paired with a compatible 3300 XL Proximitor, it outputs a voltage proportional to the probe-to-target distance.

Is this probe certified for hazardous areas?
The “CN” marking indicates China certification; hazardous-area suitability depends on the specific installation requirements.

What is the measurement sensitivity of the probe?
Typical system sensitivity is ~200 mV/mil (≈7.87 V/mm) within a linear range of roughly 0.25–2.5 mm.

What are the size and weight specifications for this model?
It has a 90 mm case length, an 8 mm tip diameter, and an approximate weight of 0.40 kg including the 0.5 m armored cable.
