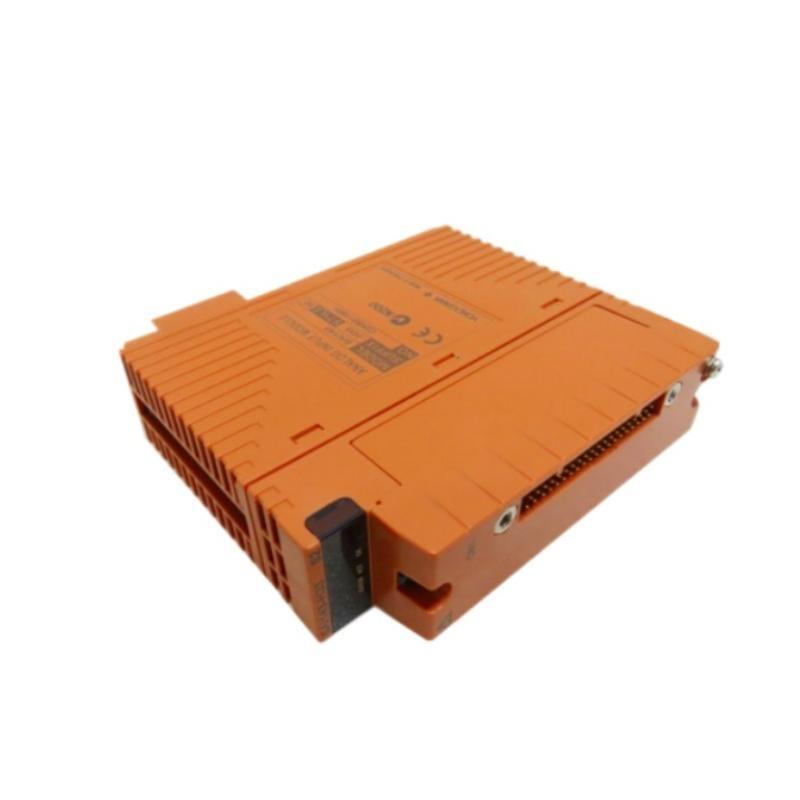

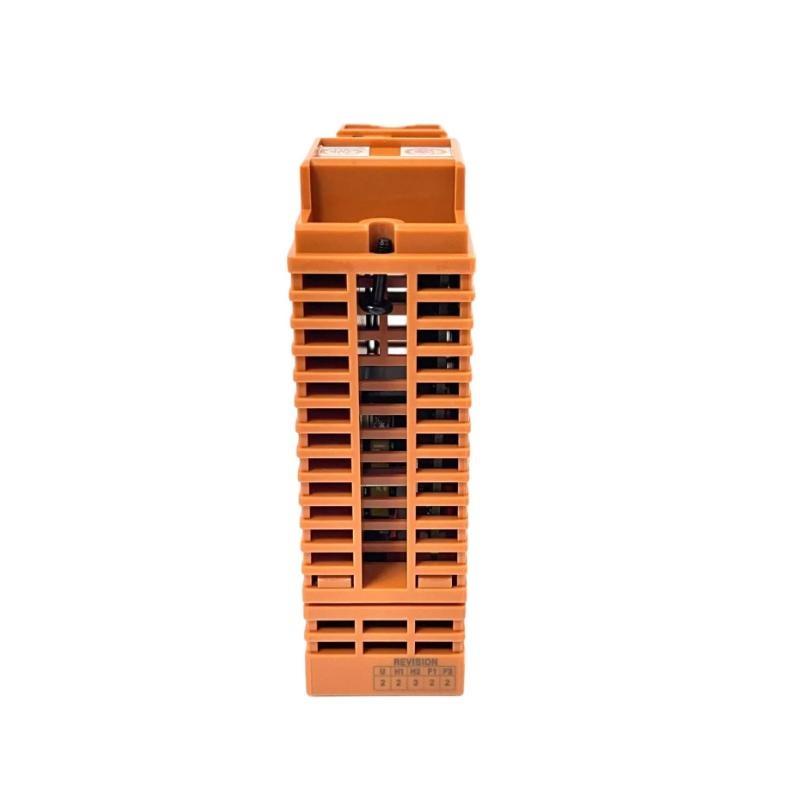

Yokogawa SAI143-S53 S3 Analog Input Module Original

FAQ

What isolation features does the SAI143-S53 provide for analog input signals?
Each of the 16 channels is fully isolated to prevent signal interference and ground loops, ensuring accurate measurements in complex industrial environments.

How is accuracy maintained across temperature variations?
The module has a temperature drift specification of ±16 µA/10°C, allowing stable measurement performance in varying operating temperatures.

Can the SAI143-S53 support dual redundancy configurations?
Yes, the module is designed for dual redundancy, improving system reliability in critical process control applications.

What type of input signals are compatible with this module?
It supports 4–20 mA current loop signals, which are standard for industrial analog instrumentation.

How does the module handle power supply for connected transmitters?
The module provides a transmitter power supply ranging from 16.15 V minimum to 26.4 V maximum, with an ON/OFF control function for all 16 channels.

What is the recommended installation method for intrinsic safety systems?
The module should be connected through an isolation barrier rather than Zener barriers to maintain intrinsic safety.

How quickly does the module update analog input data?
The data update frequency is 40 ms, ensuring timely acquisition of analog signals for process monitoring.

What are the physical dimensions and weight of the SAI143-S53?
The module measures 130 x 107.5 x 32.8 mm and weighs 0.34 kg, facilitating installation in standard control panels.
