Product Introduction

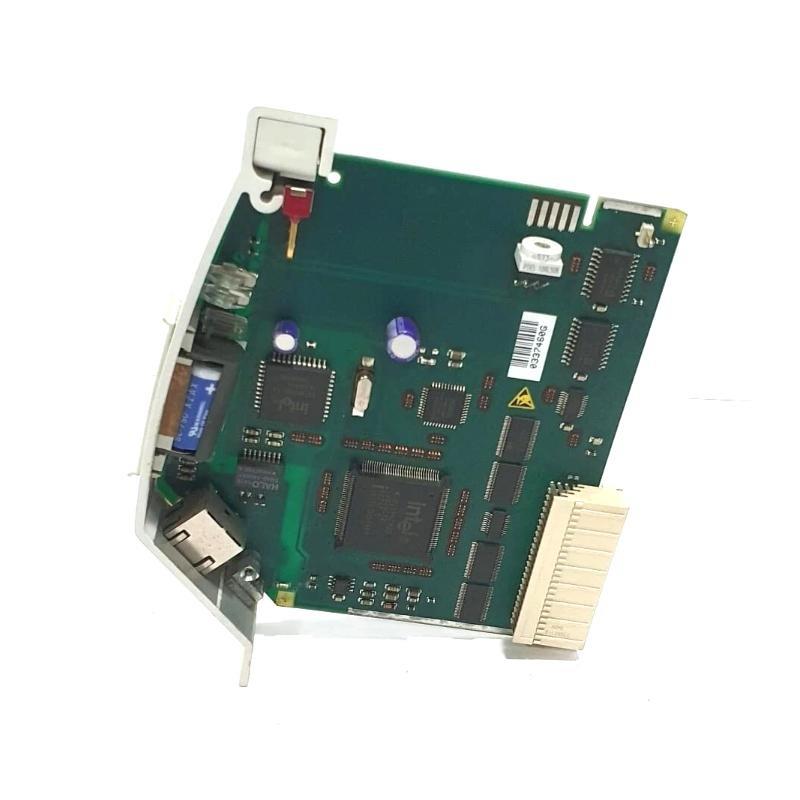

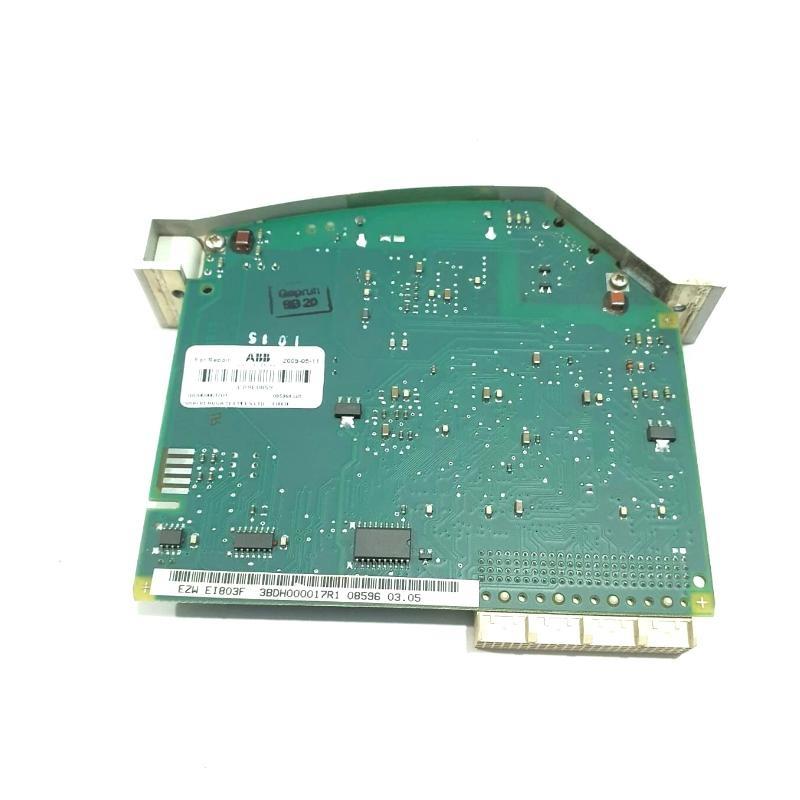

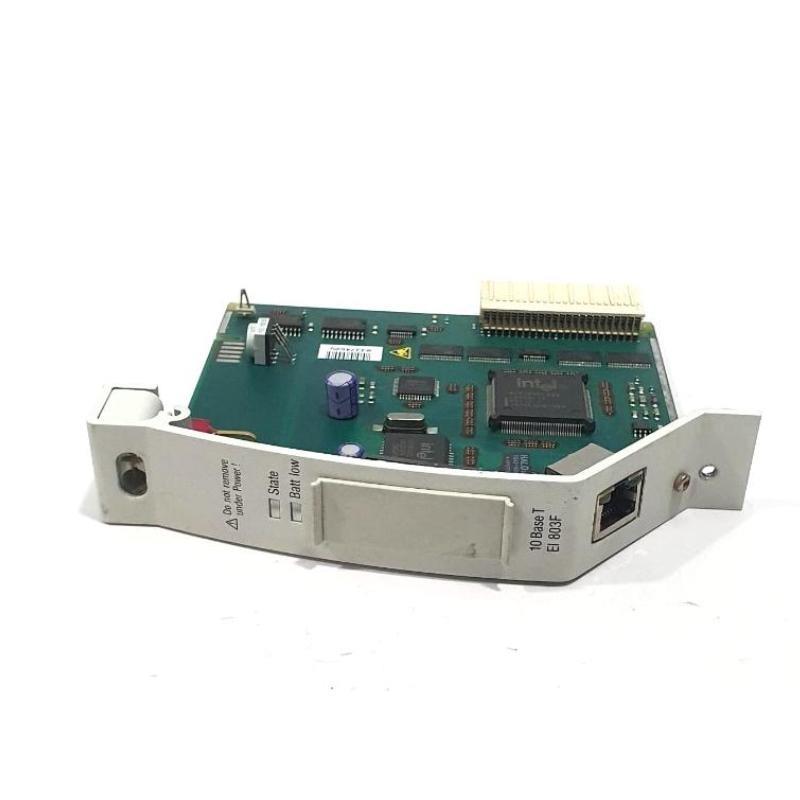

ABB EI 803F 3BDH000017R1 AC 800F Ethernet Communication Module Original

Brand：ABB

Item No.：EI 803F 3BDH000017R1

Product Type：Ethernet Communication Module

Product Origin：Sweden (SE)

Dimensions：125 ×155 ×28 mm

Weight：0.15 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Supply through formal channels, complete information available, supporting service guarantee

A wide range of models in stock, support for quick connection with procurement needs, welcome to inquire for details!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the maximum data transfer rate supported by the EI 803F module?
The EI 803F supports a maximum Ethernet transfer rate of 10 Mbps, compliant with 10BaseT standards.

Can the EI 803F module operate in a redundant Ethernet network?
Yes, the module supports redundant network topologies to ensure high availability in industrial automation applications.

What type of connectors does the EI 803F use for Ethernet communication?
The module uses standard RJ45 connectors for 10BaseT twisted-pair Ethernet connections.

What environmental conditions can the EI 803F withstand?
The module is designed for industrial environments, capable of operating within typical AC 800F system temperature and humidity ranges.

Is the EI 803F compatible with all AC 800F I/O configurations?
The module is compatible with standard AC 800F configurations but should be installed according to system design specifications to ensure proper operation.

How is the EI 803F module configured for network operation?
Configuration is performed through the AC 800F system’s engineering tools, where IP addressing and communication parameters are defined.

Does the EI 803F module support diagnostic features?
Yes, it provides status indicators and communication diagnostics to monitor link integrity and activity.

What is the recommended installation orientation for the EI 803F?
The module should be installed vertically in the AC 800F rack, following standard mounting procedures to ensure cooling and accessibility.
