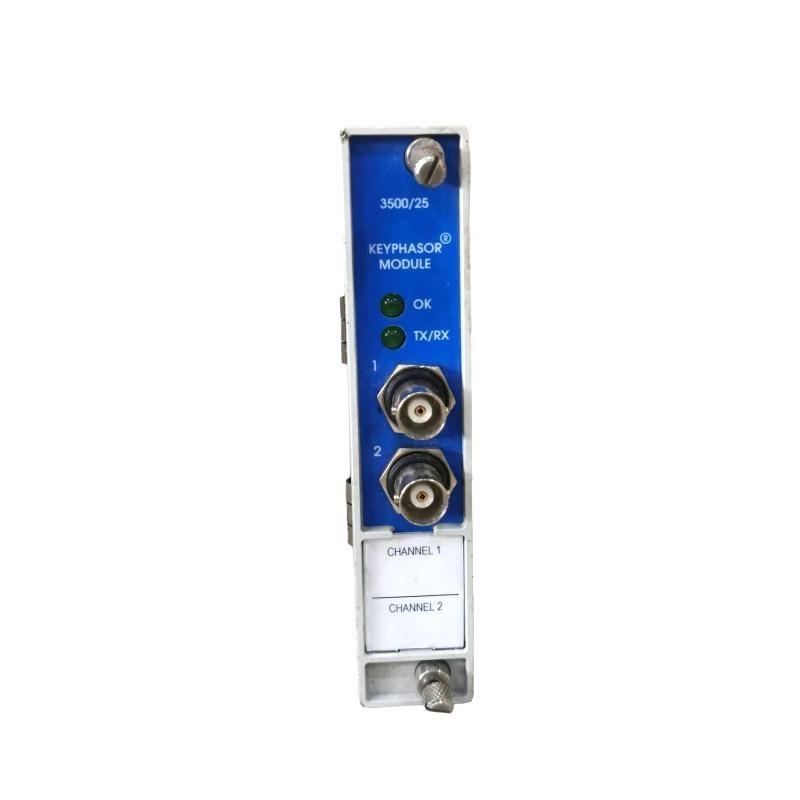

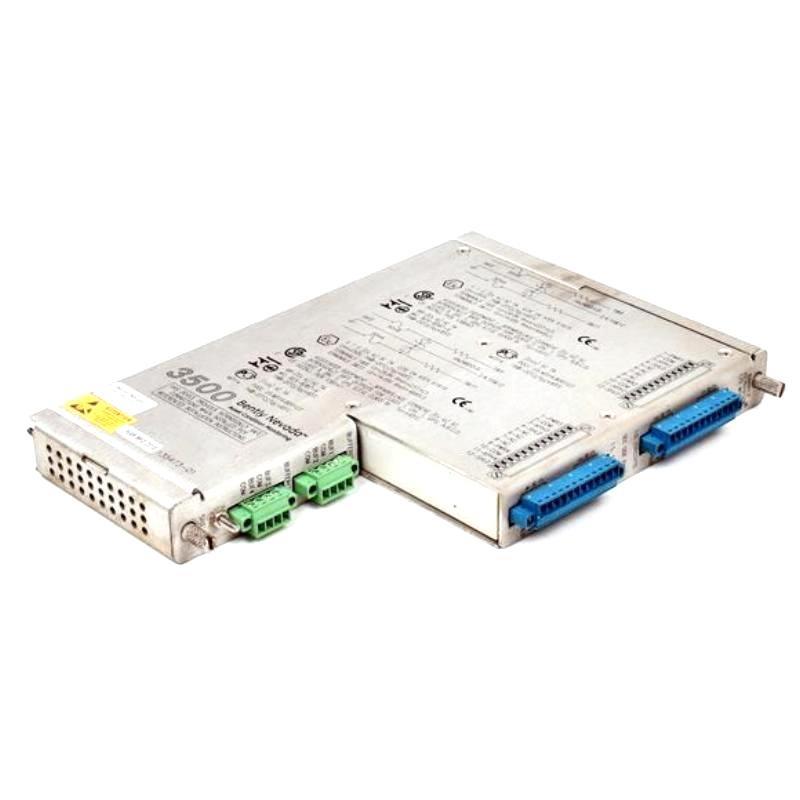

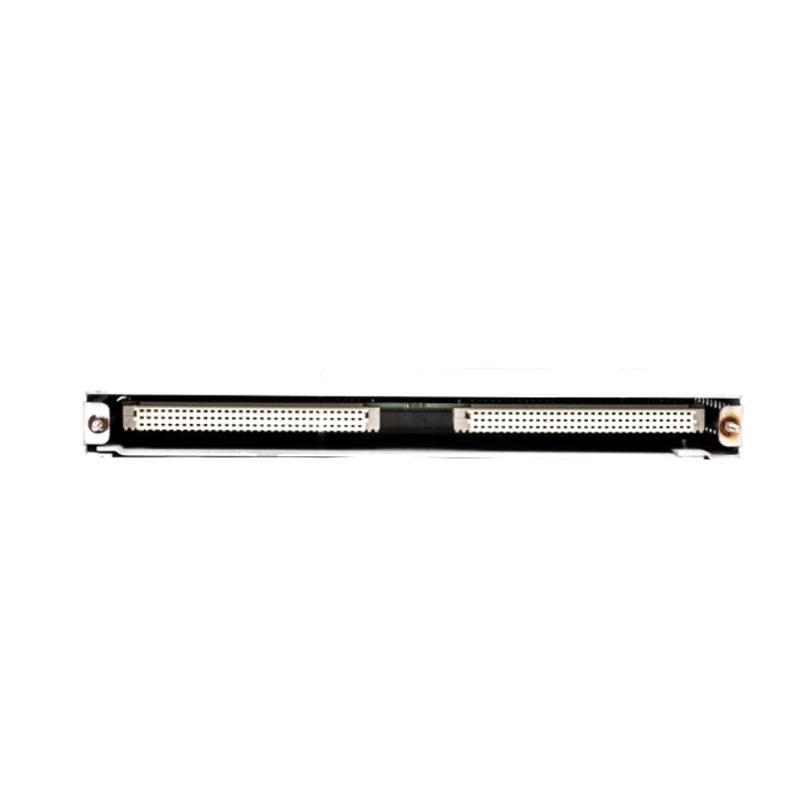

Bently Nevada 3500/25 149369-01+135473-01 3500 Series Enhanced Keyphasor Module Original

FAQ

What types of input signals are supported by the 3500/25 Enhanced Keyphasor Module?
It supports signals from proximity probes and magnetic pickups, enabling accurate shaft position monitoring.

How does the module handle multiple events per shaft rotation?
The module generates a single once-per-turn event from multiple events per turn, ensuring precise timing signals.

Can the firmware of this module be upgraded in the field?
Yes, the module’s firmware is field-upgradable for enhanced signal processing and improved performance.

Is the module compatible with older 3500 Keyphasor systems?
Yes, it maintains complete backward compatibility with existing Keyphasor modules.

What is the operating temperature range of the module?
The module operates reliably from -30°C to +65°C when used with Keyphasor I/O modules other than the Internal Barrier version.

What are the physical dimensions and weight of the module?
The module measures 119.9 x 24.4 x 256.5 mm and weighs 0.34 kg.

How many Keyphasor inputs can be configured with this module?
A paired configuration allows up to four primary Keyphasor inputs per system.

Are external termination blocks required for operation?
While external termination blocks are optional, they are recommended for signal routing and connector interface flexibility.
