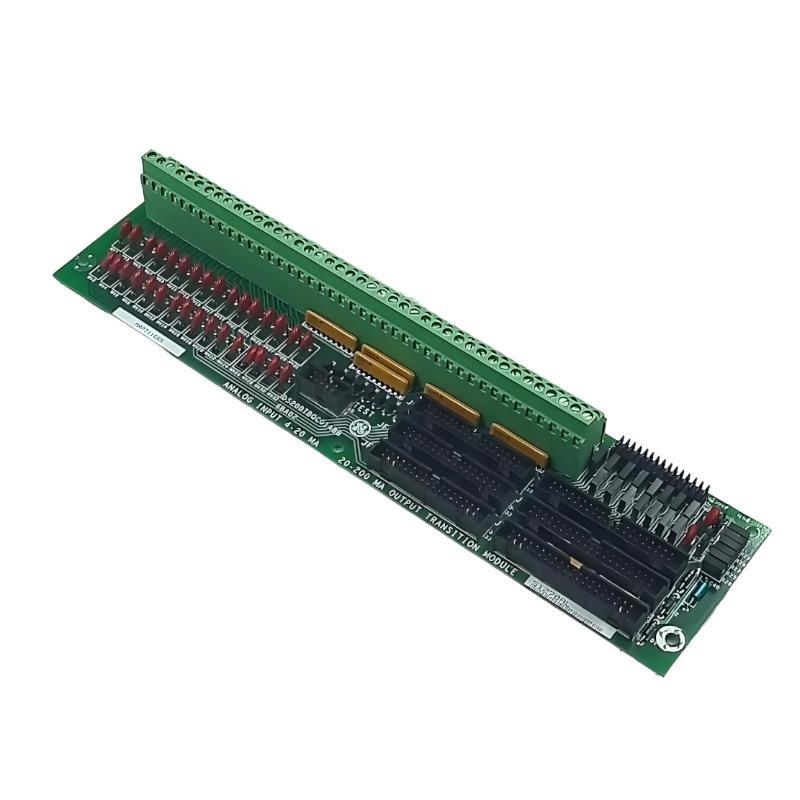

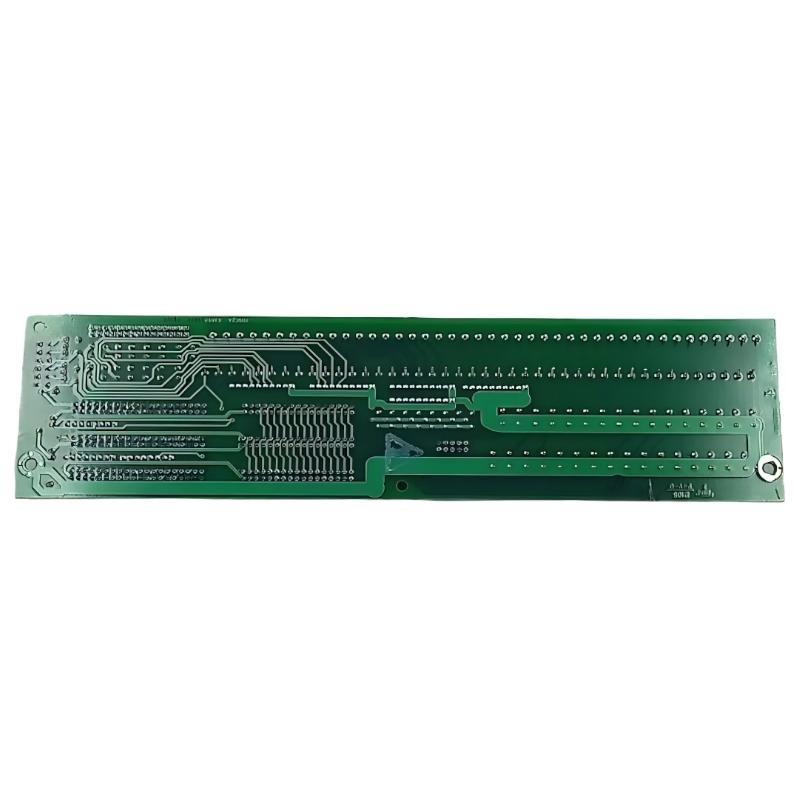

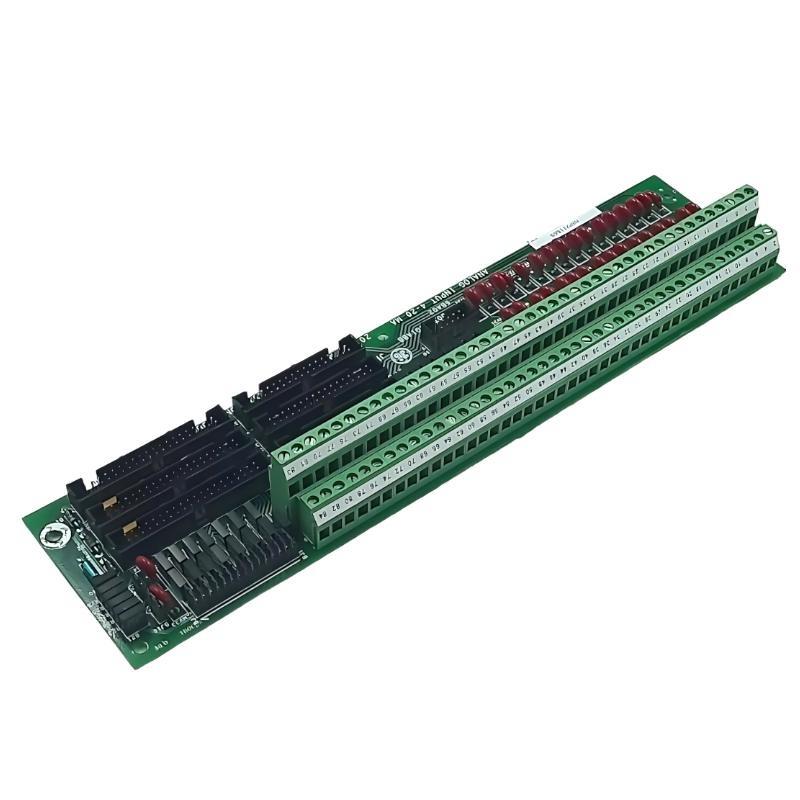

GE DS200TBQCG1ABB Analog I/O Terminal Board Original

FAQ

What is the primary role of the GE DS200TBQCG1ABB board?
It provides termination and signal routing for analog inputs and outputs between field devices and the Mark V controller.

What types of analog signals does this board support?
It supports standard voltage and current signals commonly used in industrial control systems.

Is this board suitable for digital I/O applications?
No, the board is designed specifically for analog signal termination and does not handle digital I/O.

Can this terminal board operate continuously in high-temperature environments?
Yes, it is designed to operate reliably within its specified operating temperature range of -20°C to 70°C.

Does the board provide any form of channel isolation?
Channel protection includes basic electrical isolation and suppression as defined by Mark V system architecture, but full galvanic isolation depends on the connected modules.

How is the board powered?
The board is powered through the Mark V system backplane and uses a 24 VDC supply.

What kind of protection mechanisms are built into the board?
The board includes overvoltage protection and safeguards against short circuits to protect connected equipment.

Is special configuration required before commissioning?
Configuration is typically handled through the Mark V controller; the terminal board itself does not require independent software setup.
