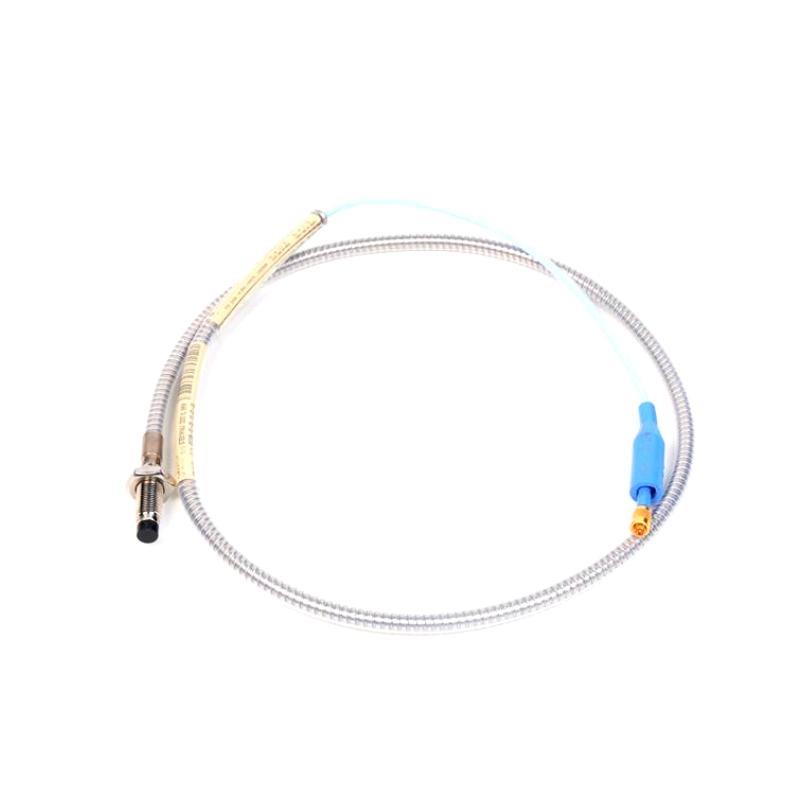

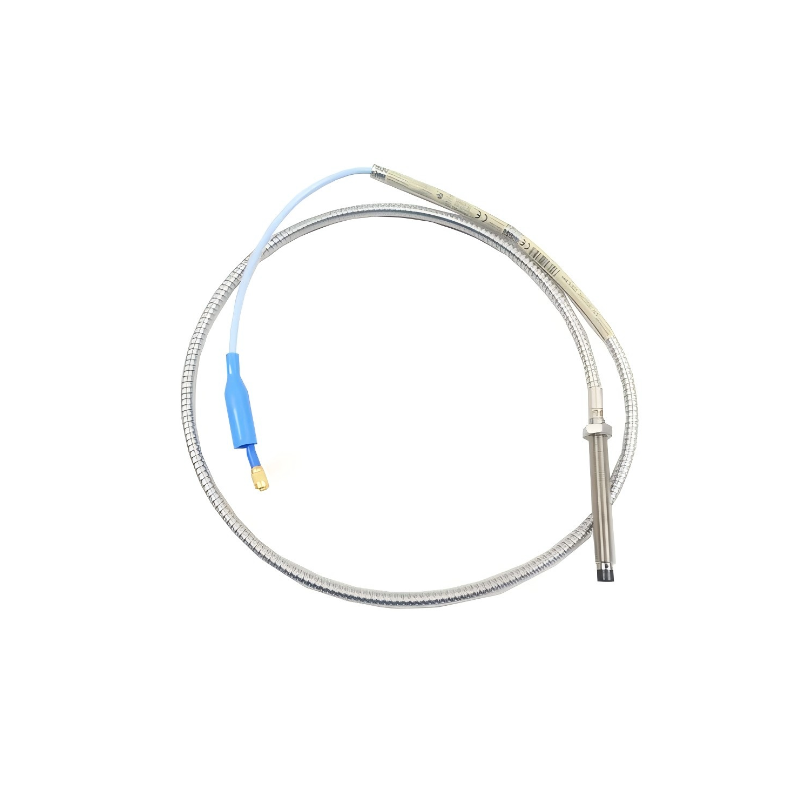

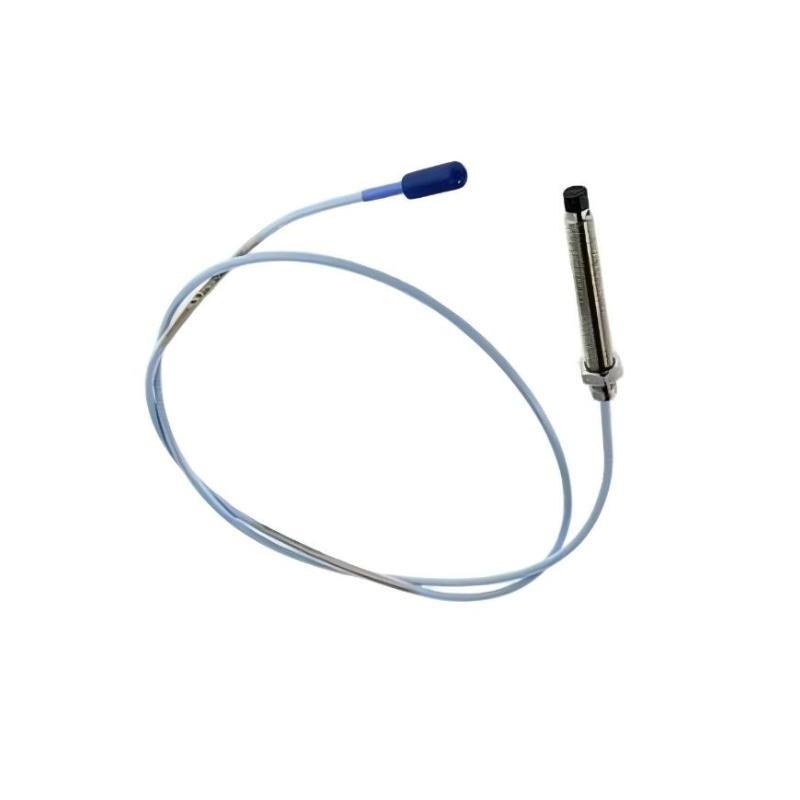

Bently Nevada 330104-00-08-50-01-05 8 mm 3300 XL Eddy‑Current Proximity Unbelievable Prices!

FAQ

What is the primary use of the 330104‑00‑08‑50‑01‑05 probe?
It is used as part of a 3300 XL 8 mm proximity transducer system for non‑contact measurement of shaft displacement or vibration in rotating machinery such as turbines, compressors, and pumps.

What does each segment of “00‑08‑50‑01‑05” represent in the model number?
“00” = unthreaded length 0 mm; “08” = case length 80 mm; “50” = total probe + cable length 5.0 m; “01” = ClickLoc miniature coaxial connector; “05” = certified approvals (CSA, ATEX, IECEx).

What materials are used in the probe’s construction?
The probe tip is made of PPS (polyphenylene sulfide), and the housing is stainless steel (AISI 303 or 304) with armored construction for durability in industrial environments.

What is the operating temperature range for this probe?
The probe operates from –52 °C to +177 °C.

What kind of output does this probe system provide?
When connected to the 3300 XL Proximitor sensor and extension cable, it outputs a voltage proportional to the distance between the probe tip and the conductive target surface, enabling both static and dynamic measurements.

What is the typical sensitivity and measurement range of the system with this probe?
Typical sensitivity is ~200 mV per mil (≈7.87 V/mm), with a usable linear measurement range around 0.25–2.5 mm.

Is this probe suitable for hazardous-area or certified industrial environments?
Yes, the “05” suffix indicates CSA, ATEX, and IECEx certifications, making it suitable for hazardous-area or regulated industrial environments.

What are the physical size and weight attributes of the probe?
The probe case length is 80 mm, with a 5.0 m cable, and the probe assembly weighs approximately 0.85 kg.
