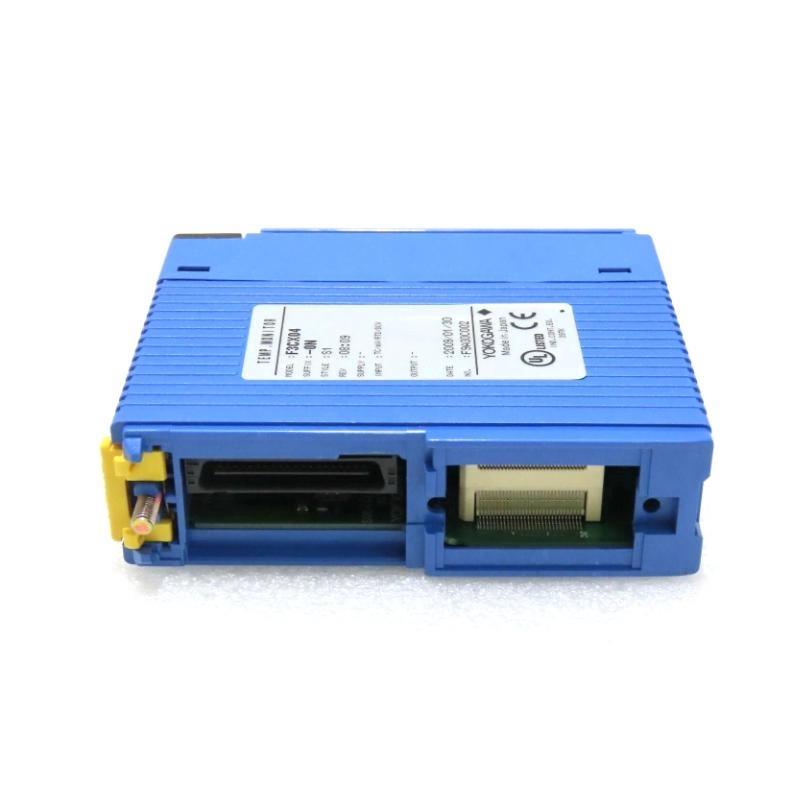

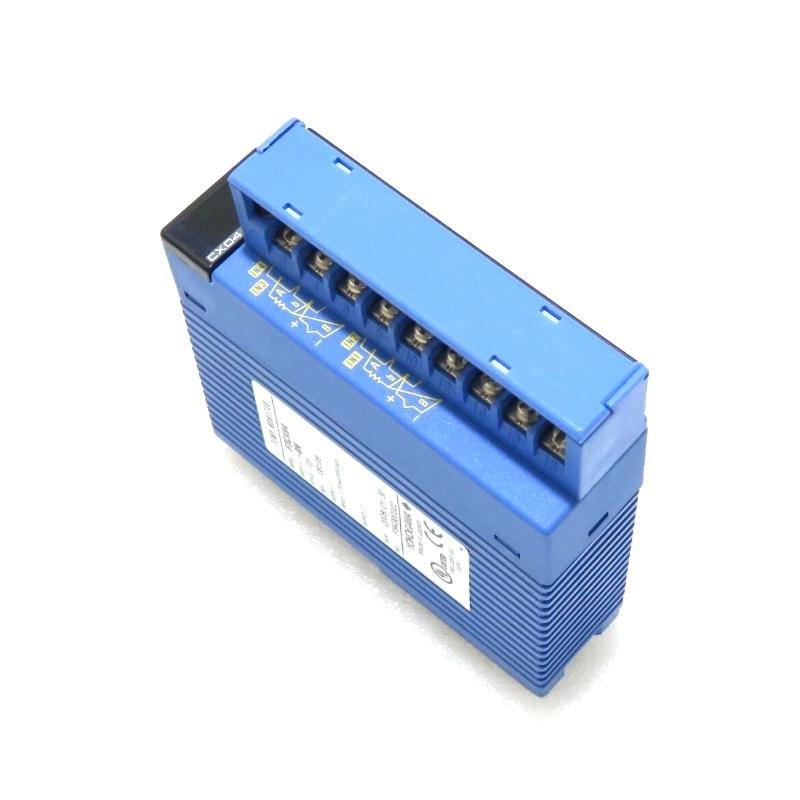

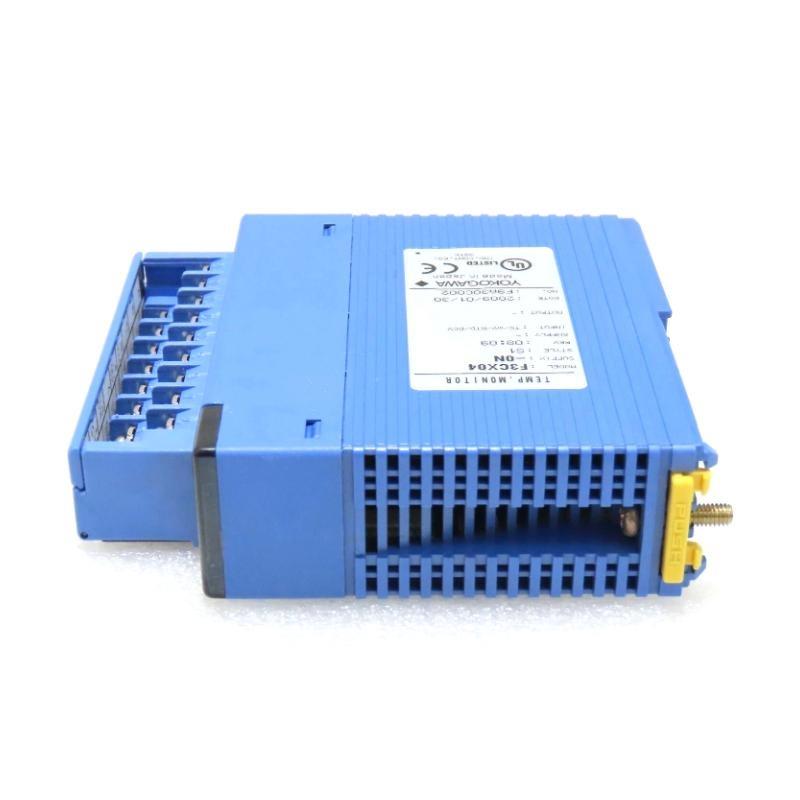

Yokogawa F3CX04-0N Temperature Monitoring Module New In Stock

FAQ

What types of thermocouples are compatible with the F3CX04-0N module?
The module supports standard thermocouples including types K, J, T, E, R, S, B, and N, providing flexibility for diverse temperature measurement applications.

How does the module handle RTD inputs?
The module can read 2-wire, 3-wire, and 4-wire RTDs, compensating for lead resistance to ensure accurate temperature measurement.

What is the impact of sampling period on measurement accuracy?
A 200 ms sampling period for four channels balances response speed and stability, minimizing noise while providing near real-time readings.

How is input-to-output isolation achieved?
The module employs optocouplers and transformers to isolate input terminals from output circuits and internal electronics, ensuring signal integrity and operator safety.

Can the module retain settings during power outages?
Yes, all parameter settings are maintained even when the system is powered down, eliminating the need for reconfiguration after restarts.

What is the maximum measurable temperature range?
The exact range depends on the selected input type, but the module is designed to handle the full operational range of standard thermocouples and RTDs.

How does the module ensure measurement precision?
With a resolution of 0.1 °C and 0.1% F.S. conversion accuracy, combined with input isolation, the module provides high-fidelity temperature data.

Are there limitations on the number of modules in a system?
The system architecture defines the maximum number of modules; the F3CX04-0N is designed for seamless integration within standard FA-M3 setups.
