Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

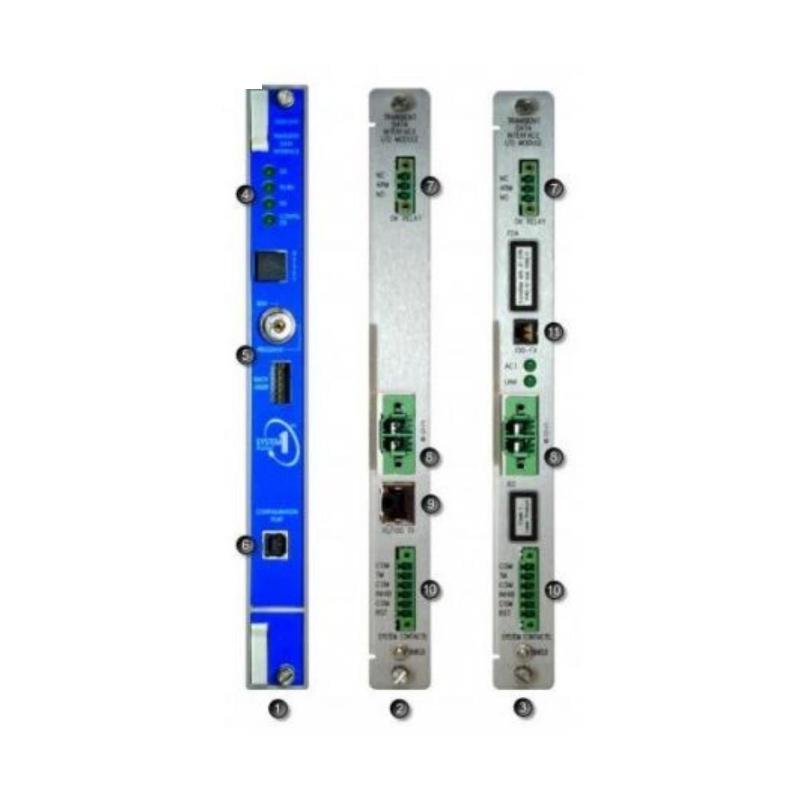

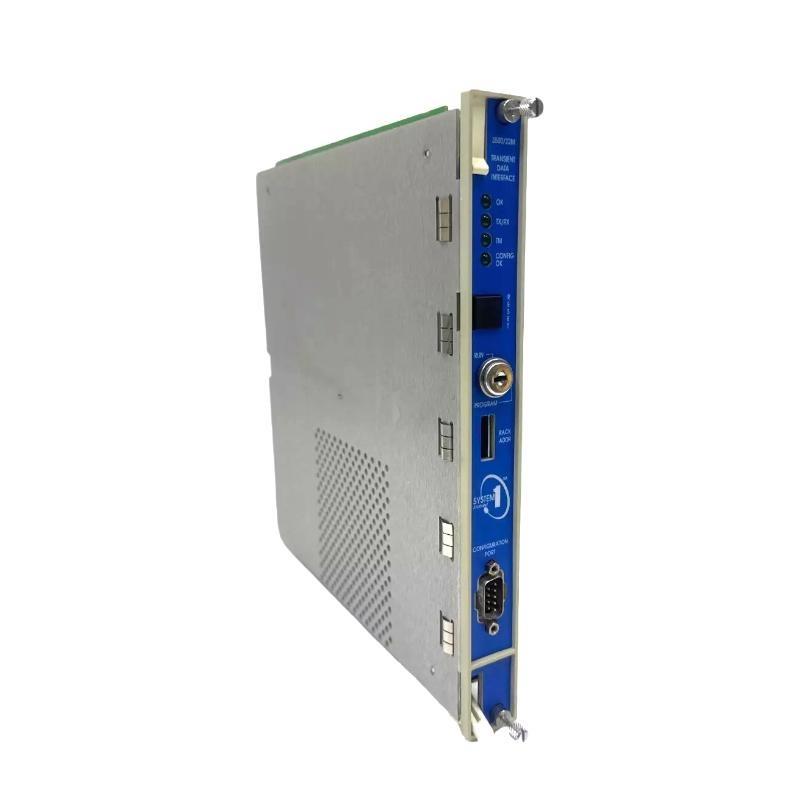

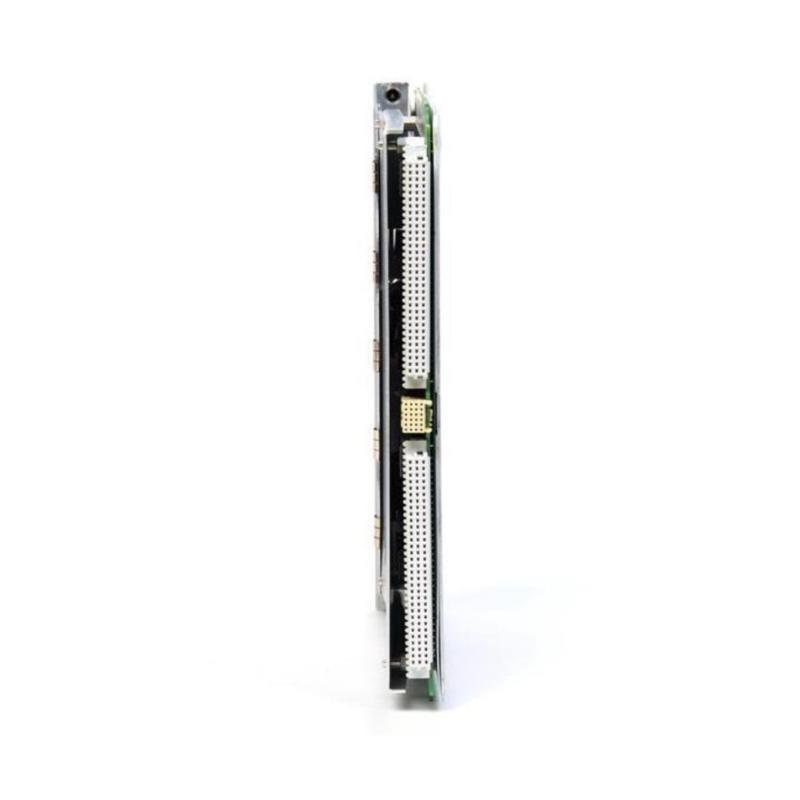

Bently Nevada 3500/22 138607-01 Standard Transient Data Interface Module Trusted supplier

Brand：Bently Nevada

Item No.：3500/22 138607-01

Product Type：Standard Transient Data Interface Module

Product Origin：USA

Dimensions：241.3 x 24.4 x 241.8 mm

Weight：0.91 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Clear and reliable product source, support for third-party testing, complete after-sales support

Rich spot models, support for quick docking of procurement needs, welcome to inquire!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What types of data does the 3500/22 module capture?
It captures both steady-state and transient dynamic waveform data from connected 3500 series monitors.

How is the 3500/22 module integrated within the 3500 rack?
The module occupies Slot 1, adjacent to the power supply modules, and communicates with other monitors via the rack backplane.

Can the 3500/22 module operate in a Triple Modular Redundant (TMR) configuration?
Yes, a TMR-specific version is available that performs monitor channel comparison and executes monitor voting.

What is the maximum data transmission speed of the module?
It supports a maximum baud rate of 115.2 kbaud over Ethernet.

What environmental conditions can the 3500/22 module withstand?
It operates between -30°C to +65°C and can be stored from -40°C to +85°C with up to 95% non-condensing humidity.

How does the module communicate with system software for data analysis?
It transmits collected waveform data via Ethernet to machinery monitoring software for real-time analysis and diagnostics.

Does the 3500/22 module support high-resolution transient data collection?
Yes, when configured with an optional Channel Enabling Disk, it can capture high-resolution transient events.

What is the typical power consumption of the 3500/22 module?
The module consumes approximately 10.5 Watts during normal operation.
