Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

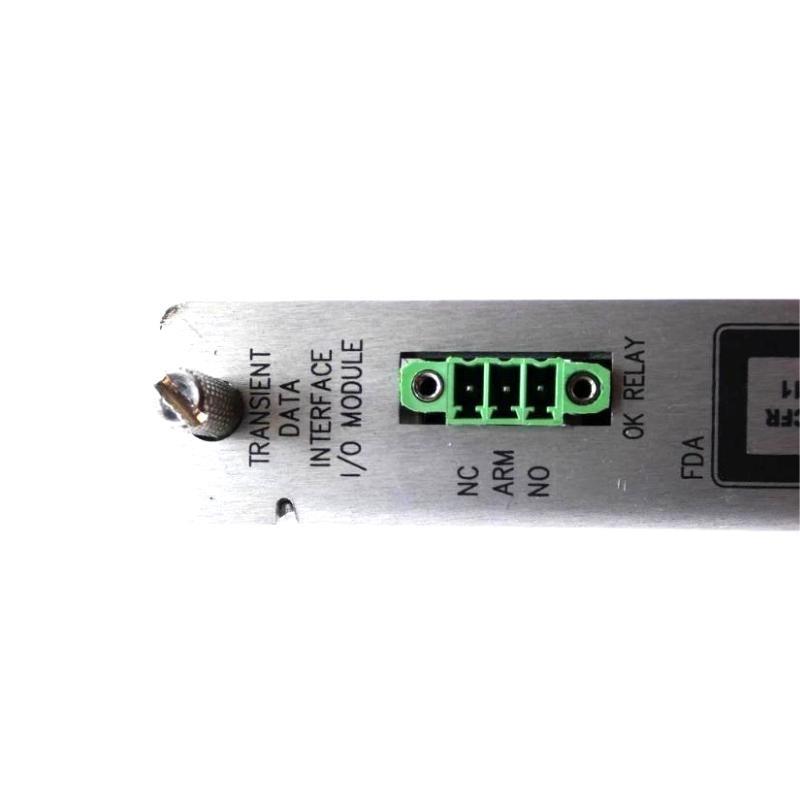

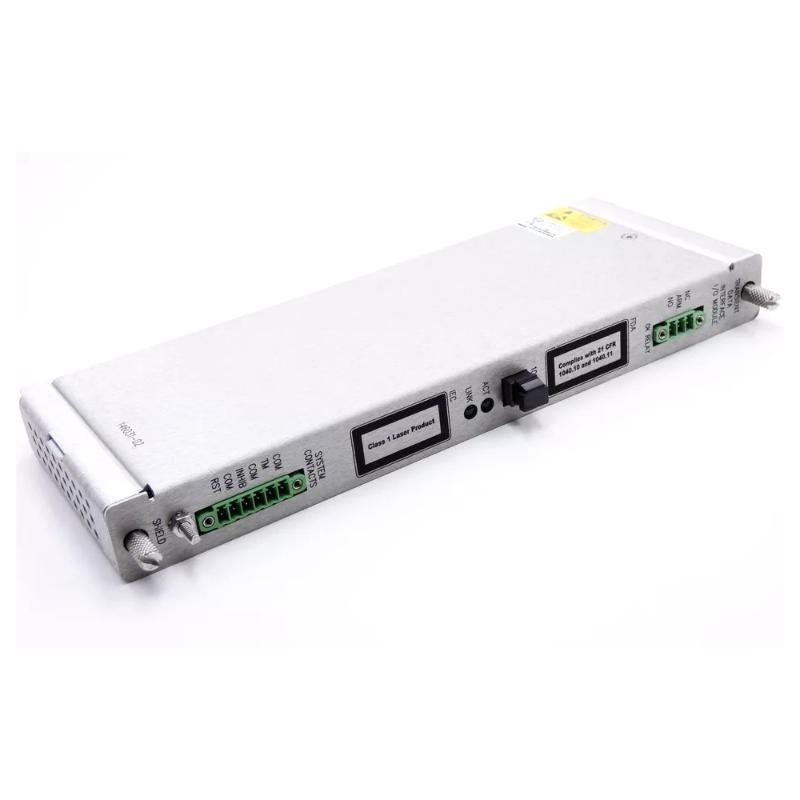

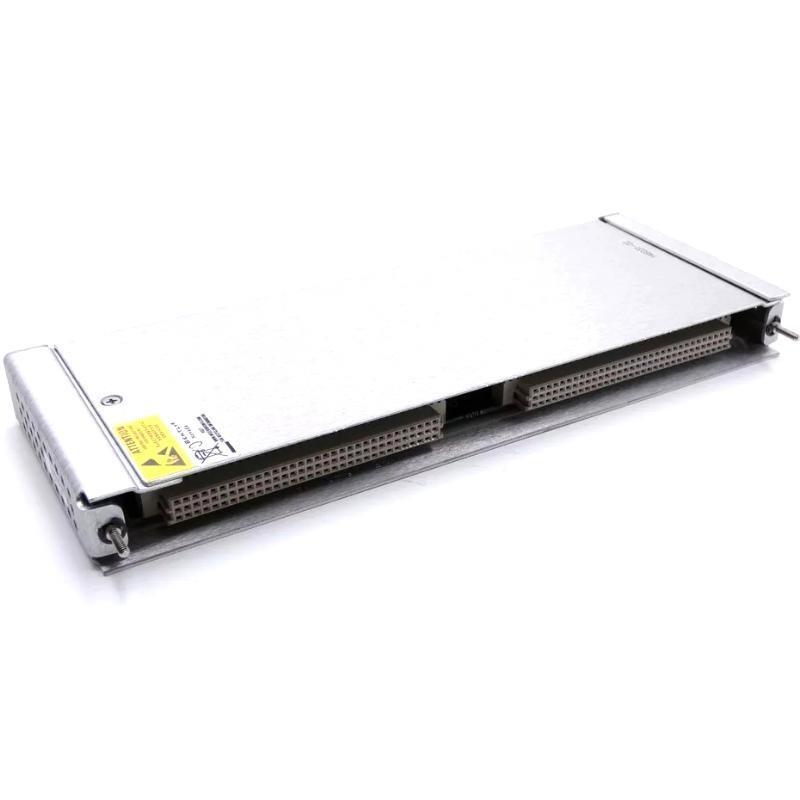

Bently Nevada 3500/22 146031-02 100Base-FX (Fiber Optic) I/O Module 100% New

Brand：Bently Nevada

Item No.：3500/22 146031-02

Product Type：100Base-FX (Fiber Optic) I/O Module

Product Origin：USA

Dimensions：241.3 x 24.4 x 241.8 m

Weight：0.91 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original overseas introduction, testing assistance and explanation support, stable and reliable service

Flexible stocking of various models, support for quick response, welcome to cooperate and communicate!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What type of data can the 3500/22 module collect?
It collects both steady-state vibration data and transient waveform data for comprehensive machinery monitoring.

What is the maximum supported fiber optic cable length?
The module supports a maximum multimode fiber optic cable length of 2000 meters (6560 feet).

Which connector type is used for fiber optic connections?
An MT-RJ male connector is used on the module; the fiber optic cable must have a compatible MT-RJ female connector.

What is the power consumption of the 3500/22 module?
The module consumes approximately 10.5 watts under normal operating conditions.

Is the module compatible with other 3500 Series monitoring modules?
Yes, it is compatible with Bently Nevada 3500 Series M Monitors such as 3500/40M and 3500/42M.

Can the module support both 10Base-T and 100Base-FX communication simultaneously?
It supports multiple Ethernet standards, but fiber optic 100Base-FX is used for transient data transfer, while 10/100Base-TX can be used for network connectivity.

How is the 3500/22 module integrated into the 3500 rack system?
It functions as a transient data interface (TDI), bridging the rack modules with monitoring software and enabling data collection.

What are the physical dimensions and weight of the module?
The dimensions are 241.3 × 24.4 × 241.8 mm, and it weighs 0.91 kg.
