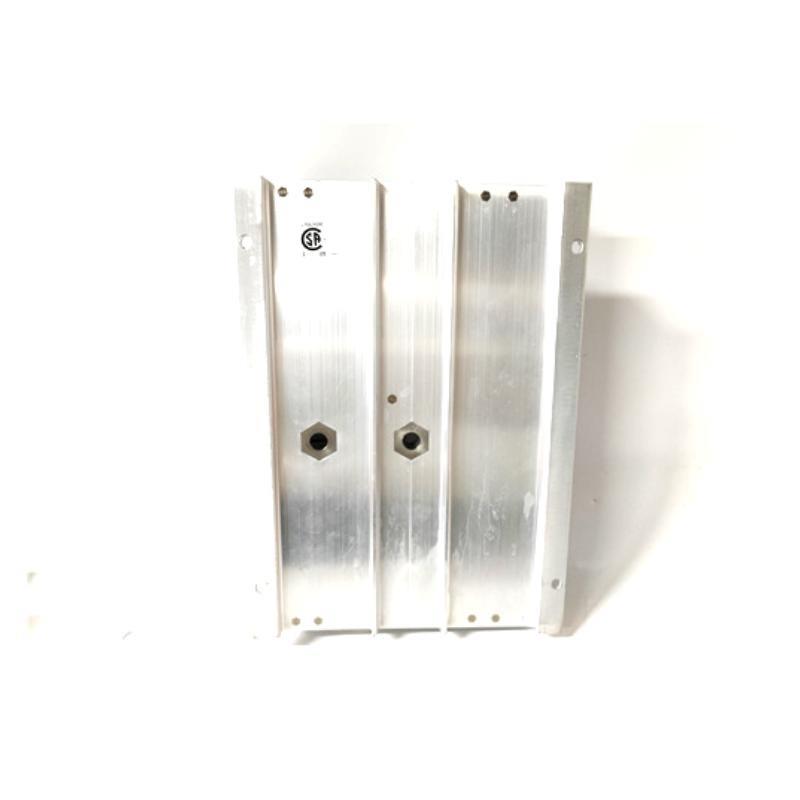

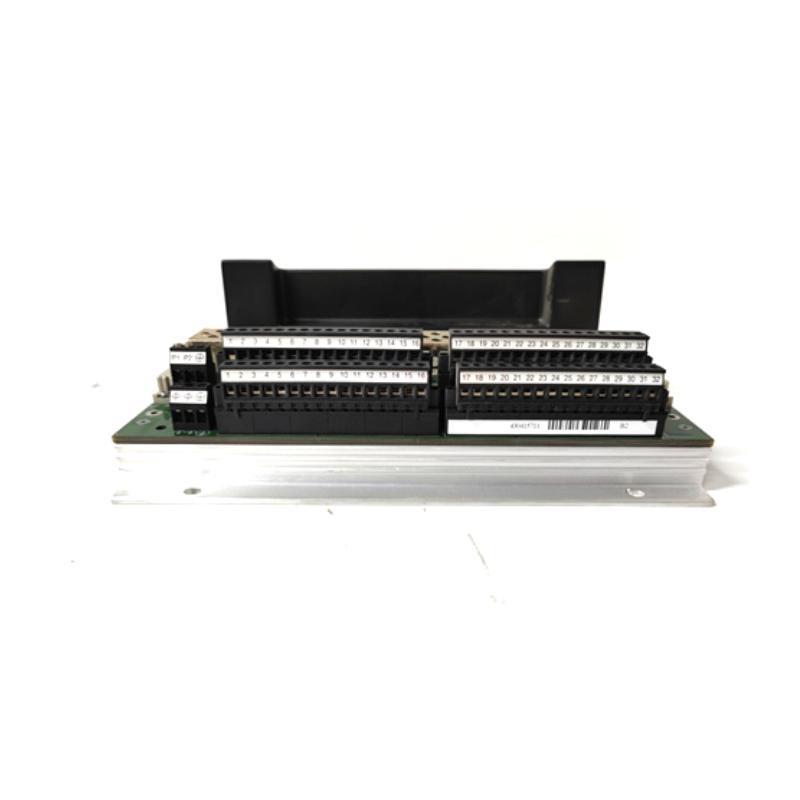

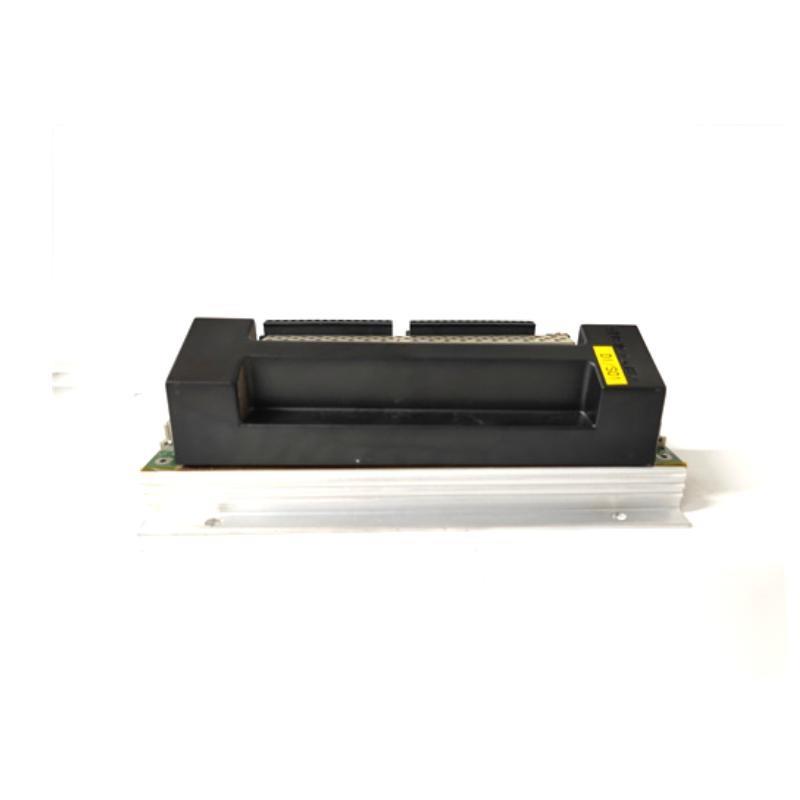

Name: Triconex DI2301 7400208B-020 Digital Input Baseplate Fast Shipping!
Brand: Invensys Triconex
SKU: 4024
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

The Triconex line allows clients to optimize their choice of safety system for their specific requirements. Our strong parts are Tricon Rack, Tricon Power Modules, Main Processor Module, Input Module, Output Module, Tricon Communication Module TCM.

Product Introduction

Triconex DI2301 7400208B-020 Digital Input Baseplate Fast Shipping!

Brand：Invensys Triconex

Item No.：DI2301 7400208B-020

Product Type：Digital Input Baseplate

Product Origin：USA

Dimensions：182 x 267 x 45 mm

Weight：1.5 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

The channel is formal, the test instructions are complete, and the service is responsive

Regular models are in stock for a long time, and the inventory is stable. Please inquire about the price!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What types of field devices can be connected to the DI2301 digital input baseplate?
The DI2301 can interface with various field devices such as limit switches, push buttons, proximity sensors, and other discrete digital signal sources.

How does the DI2301 handle redundancy in alarm contacts?
The module has two isolated and redundant alarm contact pairs, ensuring high reliability for safety-critical signal processing.

What is the maximum voltage and current the DI2301 can safely handle?
The maximum switch voltage is 33 V, and the maximum nominal current is 0.5 A per contact continuously, with short-term tolerance up to 0.7 A for 100 ms.

How does the DI2301 indicate a blown fuse?
Each fuse is equipped with a built-in indicator on the baseplate that provides visual confirmation of a blown fuse condition.

What is the operational voltage range for safe functioning of the DI2301?
The operational voltage range is from 0 to 30 V DC, allowing for minor fluctuations without affecting signal integrity.

What is the voltage drop across the baseplate under nominal load conditions?
The voltage drop is less than 0.25 V DC at 0.5 A per contact, ensuring minimal signal degradation.

Can the DI2301 be mounted in standard industrial racks?
Yes, it is designed for DIN rail mounting, compatible with standard industrial control panels.

What safety features does the DI2301 offer for digital input integration?
The module includes isolated and redundant alarm contacts, fast-acting fuses, blown-fuse indicators, and wide voltage tolerance to ensure safe and reliable integration into safety instrumented systems.
