Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

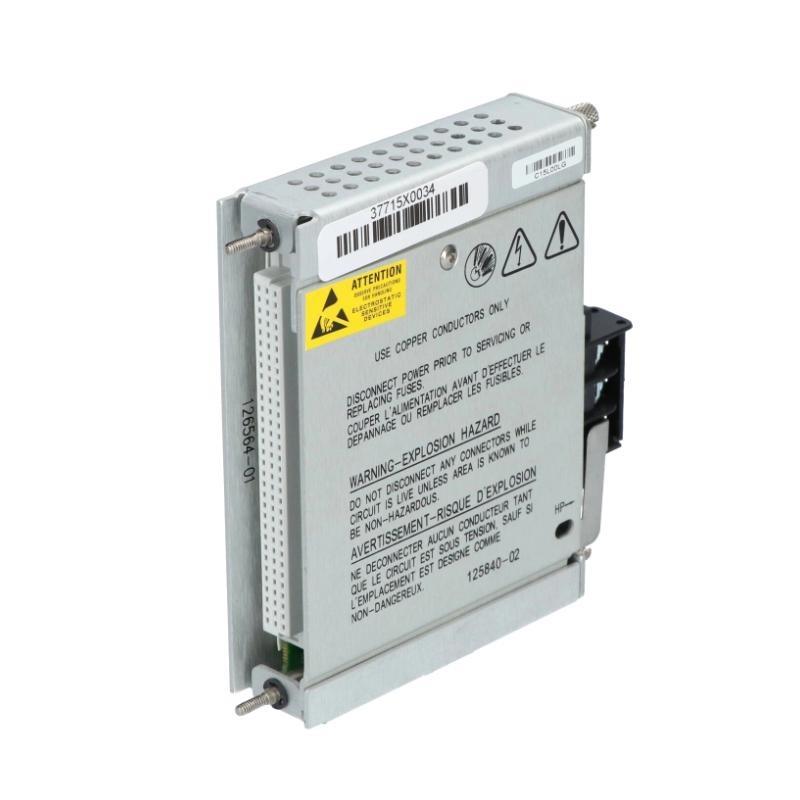

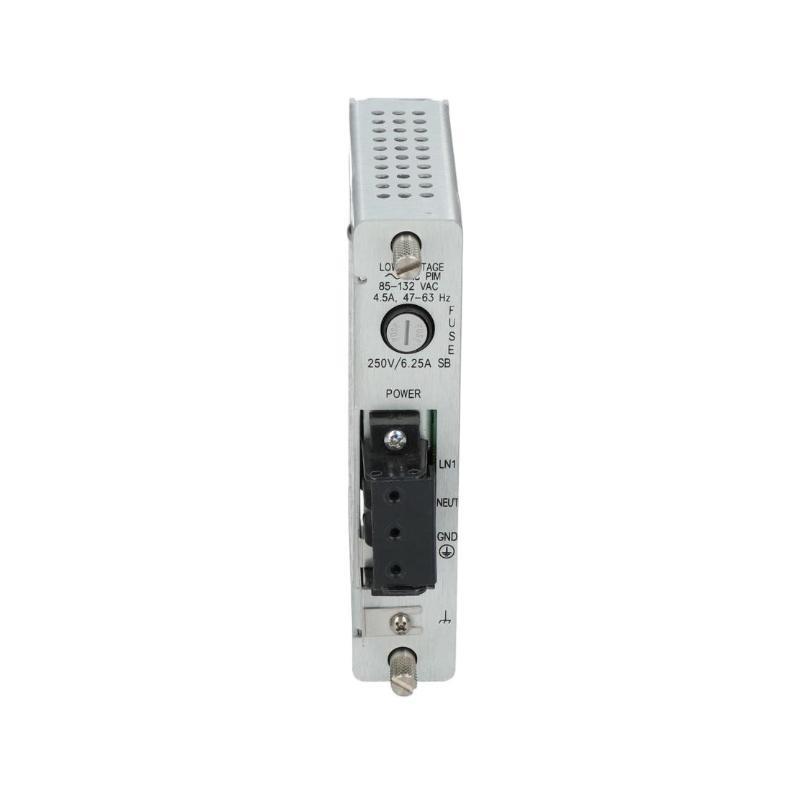

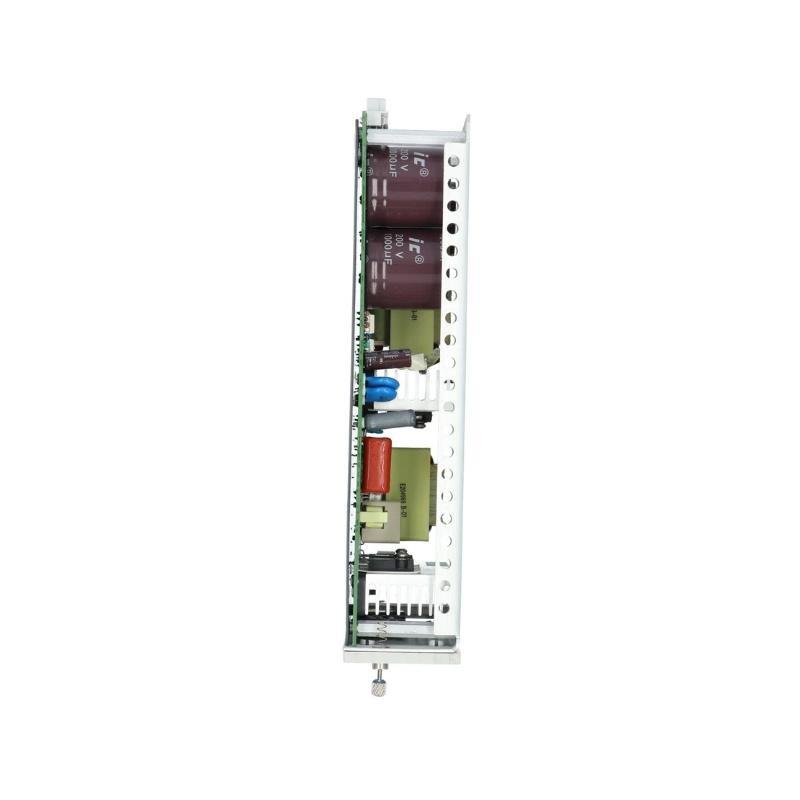

Bently Nevada 3500/15 133292-01+125840-02 AC/DC Power Supply Module Original

Brand：Bently Nevada

Item No.：3500/15 133292-01+125840-02

Product Type：AC/DC Power Supply Module

Product Origin：USA

Dimensions：120.7 x 50.8 x 251.5 mm

Weight：1.39 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

The import process is standardized, testing is supported, and after-sales service is guaranteed

The stock volume is large, the series is diverse, and it is suitable for different working conditions. Please consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

Does this module support hot swapping?
Yes, provided a second power supply is installed to maintain stable operation.

How does the module operate in a dual power configuration?
The lower slot module acts as the primary supply; the upper slot automatically switches as backup if the primary fails.

What is the module’s maximum output power and load capacity?
The module is designed to reliably supply all 3500 system monitoring modules, ensuring stable operation at full load over long periods.

Does the module provide over-voltage or over-current protection?
Yes, internal protections include over-voltage, over-current, and short-circuit safeguards.

What are the operational limits in high temperature or humidity conditions?
Operating temperature: -30°C to +65°C, humidity up to 95% non-condensing.

How can the output voltage of the module be verified?
Use the 3500 rack monitoring interface or a standard multimeter to measure the output voltage.

Are there installation orientation requirements for the module?
Must be installed in designated left-side slots to ensure proper ventilation and cooling.

Is this module compatible with all 3500 system versions?
Compatible with standard 3500/15 series racks, but firmware version and module type should be verified for compatibility.
