Honeywell Experion PKS ( C200, C300 ) is one of the most important DCS system. Original New Control processor, Control Interface, Redundancy Module, I/O Link Interface Module, PM I/O, FTA, FSC Module, UCN Board are provided

Product Introduction

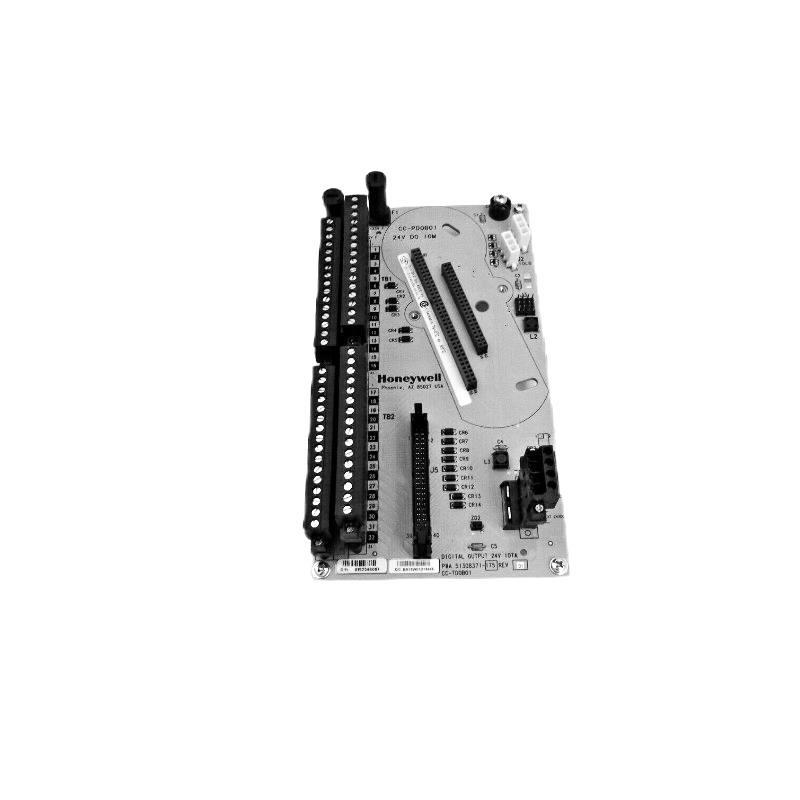

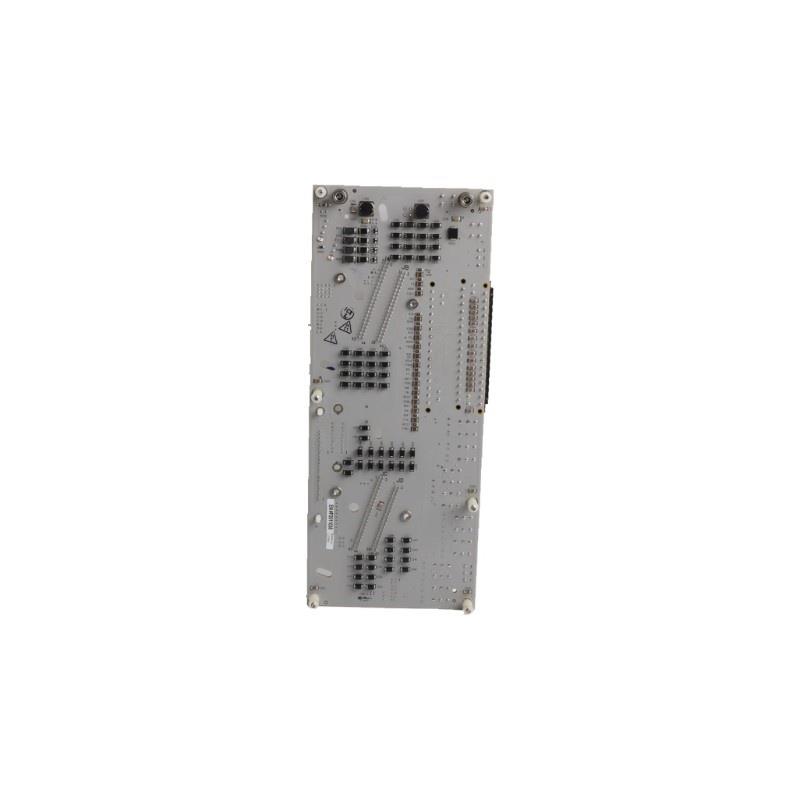

Honeywell CC-TD0B01 Digital Output Module Unbelievable Prices Unbelievable Prices!

Brand：Honeywell

Item No.：CC-TD0B01

Product Type：Digital Output Module

Product Origin：USA

Dimensions：86 x 32 x 16 mm

Weight：0.6 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

This product is imported from overseas, supports test report assistance, and smooth after-sales docking

The model covers a wide range and the delivery is efficient. Welcome to contact us for information!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What type of output signal does this module support?
A: It provides 8 independent sinking digital outputs for controlling field devices that receive 24V DC power.

What is the maximum load capacity per output channel?
A: The maximum rated load current per output channel is 0.5 Amps.

Does the module require an external power supply?
A: Yes, it requires two power sources: one is the 5V DC backplane power (provided by the base), and the other is a 24V DC field power supply used to power the output loads.

Are the output channels isolated from each other?
A: No, the 8 output points are not isolated from each other. However, they are isolated from the backplane logic circuitry.

Is this module suitable for use in safety-critical environments?
A: Yes, it carries certifications such as ATEX and IECEx, indicating its suitability for use in hazardous environments with potentially explosive atmospheres.

What are the module’s dimensions and weight?
The module dimensions are 86 x 32 x 16 mm, and it weighs 0.6 kg.

How is the module installed into a control system?
A: The module plugs into a dedicated Honeywell process control system base unit via a connector on its bottom side.

How are field wires connected?
Power and signal lines for field devices are connected to the field wiring terminal block on the front of the module via screw terminals.
