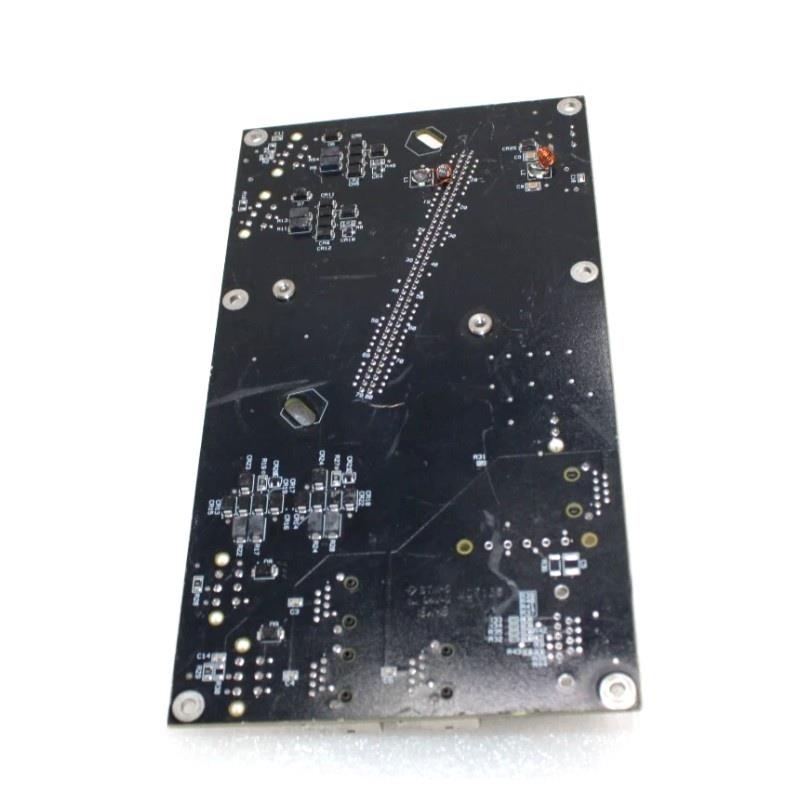

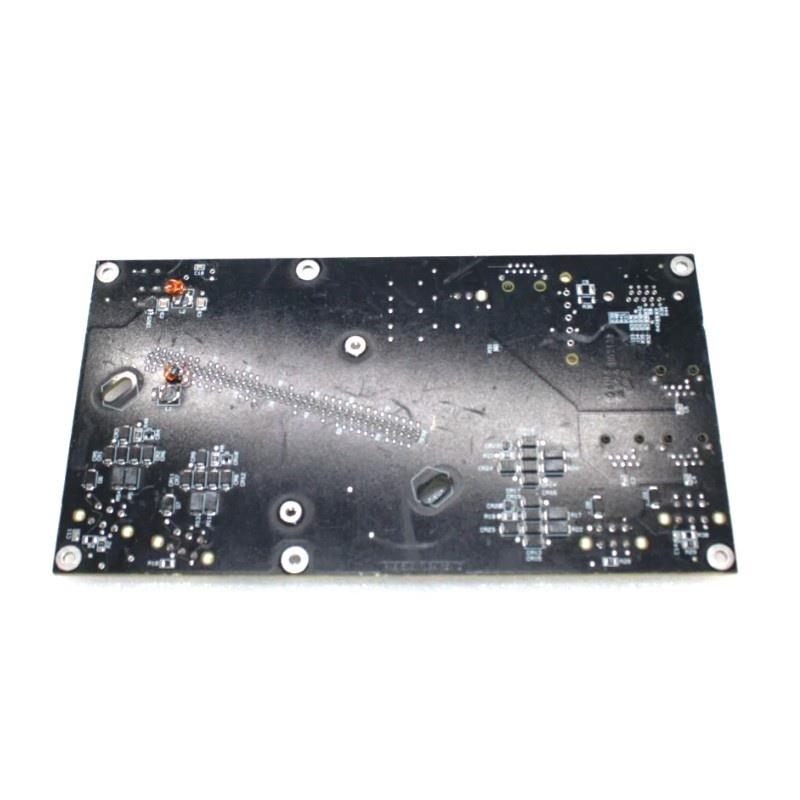

Honeywell 8U-TCNTA1 I/O Termination Assembly (IOTA) New In Stock Original

FAQ

What is the primary function of the 8U-TCNTA1 module?
A: It serves as a 16-channel analog I/O termination assembly, providing the interface for connecting field wiring (like sensors and transmitters) to an Experion controller, handling signal conditioning and conversion.

Which types of input signals are supported?
A: It supports a wide range of signals including Thermocouple (T/C), RTD, millivolt (mV), and standard process signals like voltage and current (0-5V, 1-5V, 0-20mA, 4-20mA).

Does this module provide intrinsic safety for hazardous areas?
A: Yes, when used with an approved intrinsic safety barrier, the module itself is certified for use in Class I, Division 2 hazardous locations and carries ATEX/IECEx certifications.

Where does the IOTA module get its power?
A: It is powered directly by the Experion controller (e.g., C300) it is connected to, via the backplane, typically using 24 VDC. It does not require a separate external power supply.

What is the channel-to-channel isolation rating?
A: The module provides channel-to-channel and field-to-system isolation, which prevents noise and ground loops from interfering with signal accuracy.

Can one module mix different input types (e.g., T/C and 4-20mA) on different channels?
A: Yes, the input channels are individually configurable via the control software (Experion PKS), allowing you to mix different signal types on a single module.

What is the maximum number of these modules that can be used in a single system?
A: The number is not limited by the module itself but by the capacity of the Experion controller and the available slots in its chassis or node.

How is the module configured and diagnosed?
A: Configuration, calibration, and diagnostics are performed entirely through the Experion PKS software. There are no physical switches or jumpers on the module for configuration.
