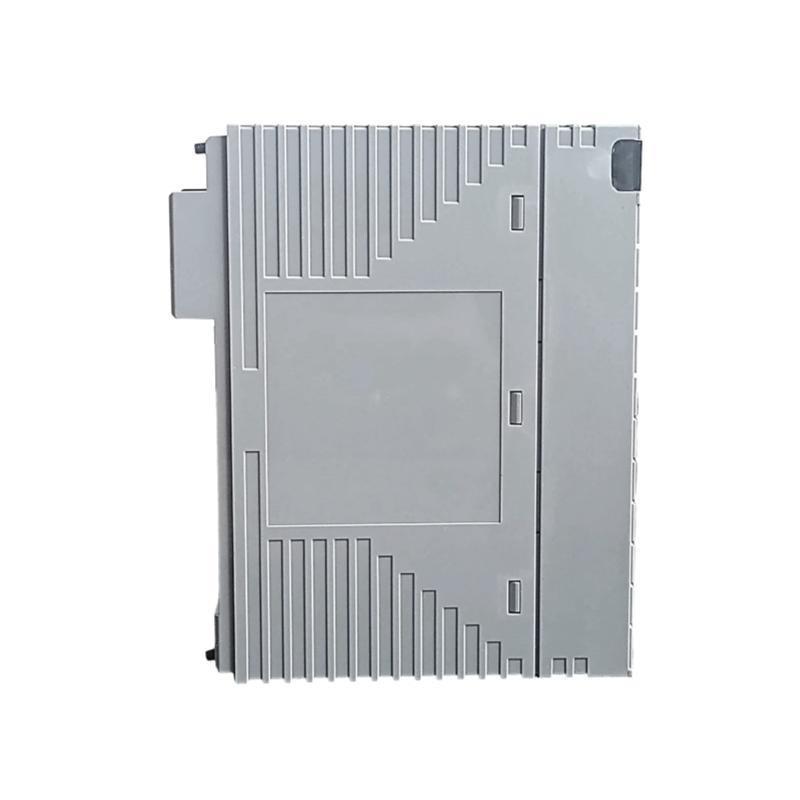

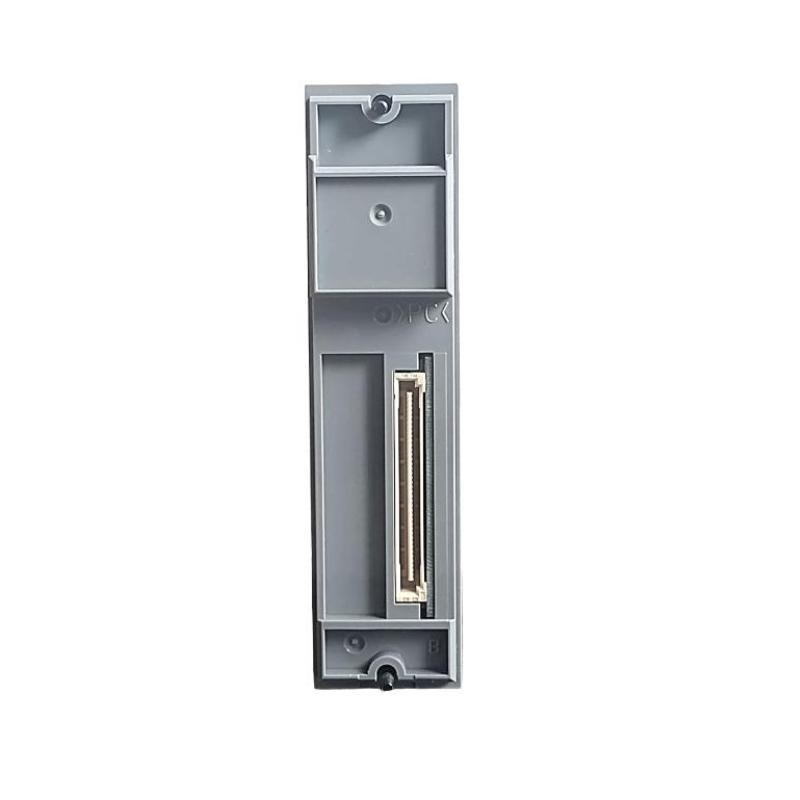

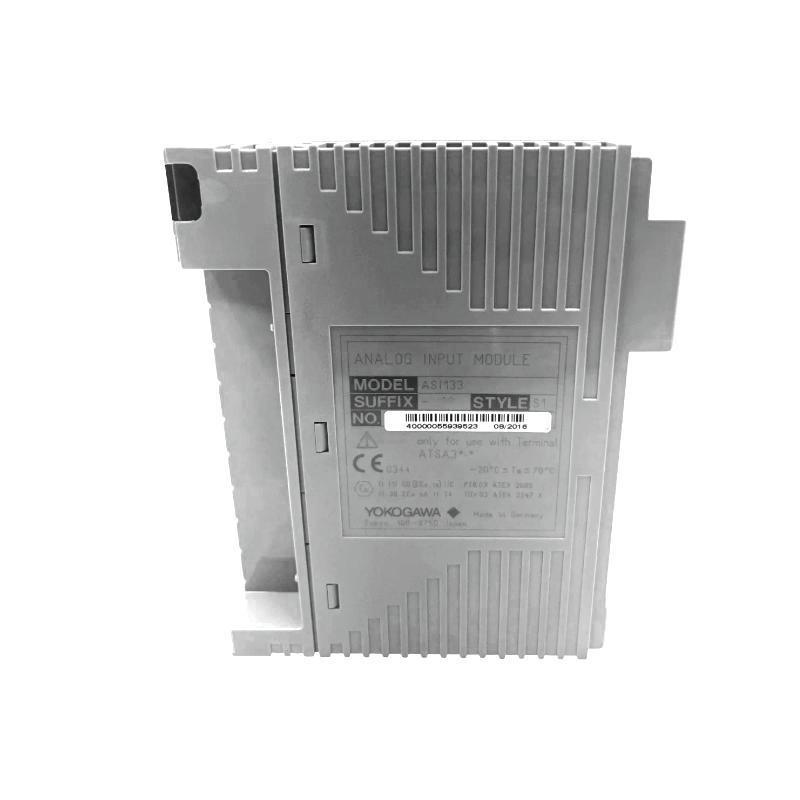

Yokogawa ASI133-S50/SA3S0 Current Input Module (Isolated) Original

Yokogawa ASI133-S50/SA3S0 Current Input Module (Isolated) Original

Name: Yokogawa ASI133-S50/SA3S0 Current Input Module (Isolated) Original
Brand: Yokogawa Electric
SKU: 4209
Availability: InStock
Rating: 5.0 (1 reviews)

0.0

Points

100% Original and Authentic.
100% Brand New, Ready to ship.
Support Refund, 7X24h Service.
1-Year Warranty on All Products.

Today's Discount: 90% 00 : 00 : 00

Low stock: 93 left

62%

Add to cart

Product Details

Yokogawa Electric has over 100 years experience in the measurement and control business,it produces the first DCS in the world. The main system is CENTUM CS 3000 R3.

Product Introduction

Yokogawa ASI133-S50/SA3S0 Current Input Module (Isolated) Original

Brand：Yokogawa

Item No.：ASI133-S50/SA3S0

Product Type：Current Input Module

Product Origin：Japan

Dimensions：130 x 107.5 x 32.8 mm

Weight：0.3 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Regular supply, testing instructions can be coordinated, and after-sales service continues to follow up

A wide range of spot models, support for quick docking of purchasing needs, welcome to inquire!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the isolation voltage rating of the ASI133-S50/SA3S0?
The module provides 1500 V AC isolation between input channels and power supply, ensuring protection against ground loops and voltage surges.

Can the module handle both 2-wire and 4-wire transmitters?
Yes, it supports both 2-wire and 4-wire 4–20 mA current transmitters with specified input resistance for each configuration.

What is the accuracy of current measurement for this module?
The module achieves an accuracy of ±16 µA, suitable for precise industrial signal acquisition.

What is the maximum input current the module can tolerate?
The module can safely accept input currents up to 22.5 mA without damage.

How fast is the module’s response to input signal changes?
The step response time is 100 ms, and the data update period is 10 ms.

Does the module provide power to 2-wire transmitters?
Yes, it supplies ≥16 V DC with a maximum output current of 20 mA.

What are the recommended environmental conditions for operation?
It is designed for industrial environments with standard temperature and humidity ranges; avoid excessive vibration or moisture.

What are the dimensions and weight of the module for installation planning?
The module measures 130 × 107.5 × 32.8 mm and weighs 0.3 kg, suitable for compact installation setups.
