Name: Yokogawa ASI133-H00 Current Input Modules (Isolated) 12-Month Warranty
Brand: Yokogawa Electric
SKU: 4212
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

Yokogawa Electric has over 100 years experience in the measurement and control business,it produces the first DCS in the world. The main system is CENTUM CS 3000 R3.

Product Introduction

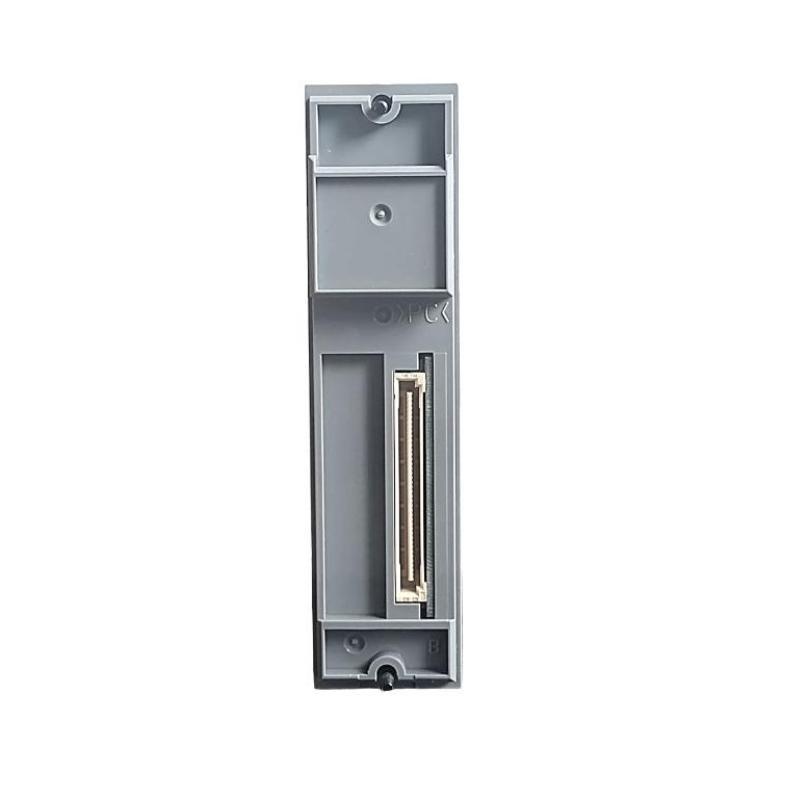

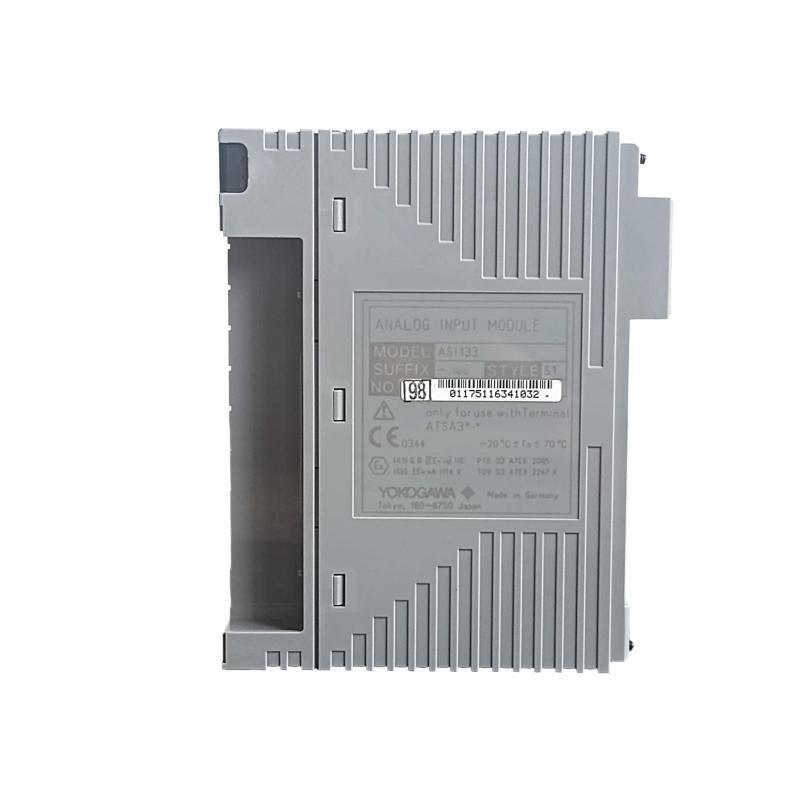

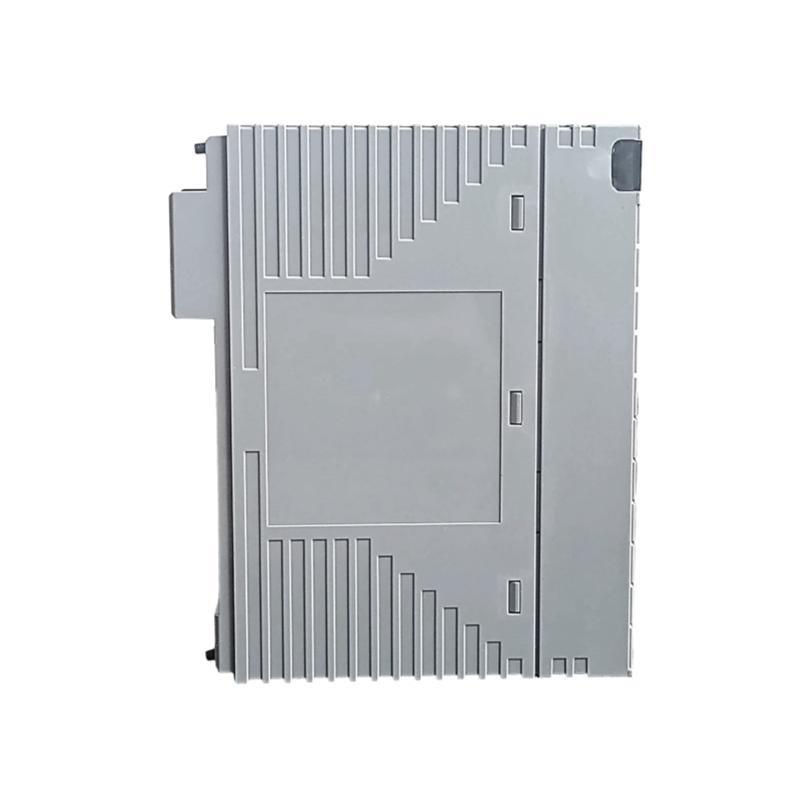

Yokogawa ASI133-H00 Current Input Modules (Isolated) 12-Month Warranty

Brand：Yokogawa

Item No.：ASI133-H00

Product Type：Current Input Modules

Product Origin：Japan

Dimensions：130 x 107.5 x 32.8 mm

Weight：0.3 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Compliant import, support for testing, and fast response to after-sales service

Flexible stock of multiple models, support for fast response, welcome to cooperate and communicate!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the isolation performance of this module?
Each channel of the ASI133-H00 is independently isolated and can withstand AC 1500 V, ensuring secure signal transmission and strong interference immunity.

What input signal types are supported?
The module supports standard 4–20 mA current input only; voltage input is not supported.

Is the response time suitable for high-dynamic control systems?
The module has a step response time of 100 ms, suitable for most process control applications. Ultra-fast control loops should be evaluated according to system requirements.

What are the applications of HART communication?
Supports HART for transmitter diagnostics, parameter configuration, and status monitoring, enhancing maintenance efficiency.

Will accuracy degrade in high-temperature environments?
Temperature drift is ±16 µA/10°C, maintaining stable accuracy within the -20°C to +70°C range.

How to prevent signal interference among multiple channels?
Independent channel isolation and shielded wiring effectively prevent cross-channel interference.

Does the module’s power consumption affect system load?
Maximum current consumption is 5 V DC: 150 mA, 24 V DC: 450 mA; ensure sufficient system power supply.

Are the module’s dimensions and weight suitable for compact control cabinets?
Dimensions are 130 × 107.5 × 32.8 mm, weight 0.3 kg, compatible with most compact control cabinets.
