Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

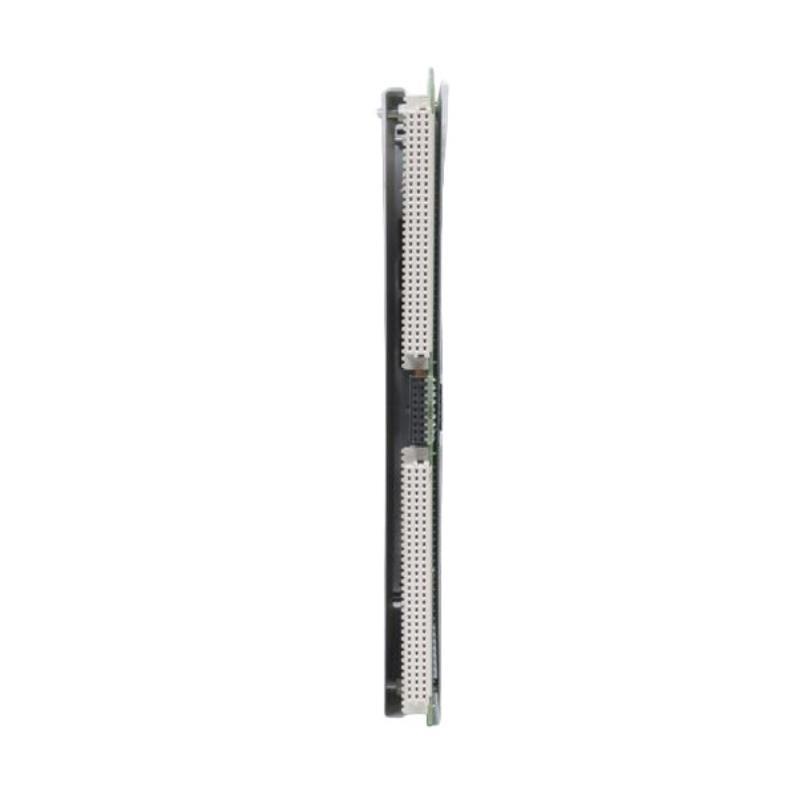

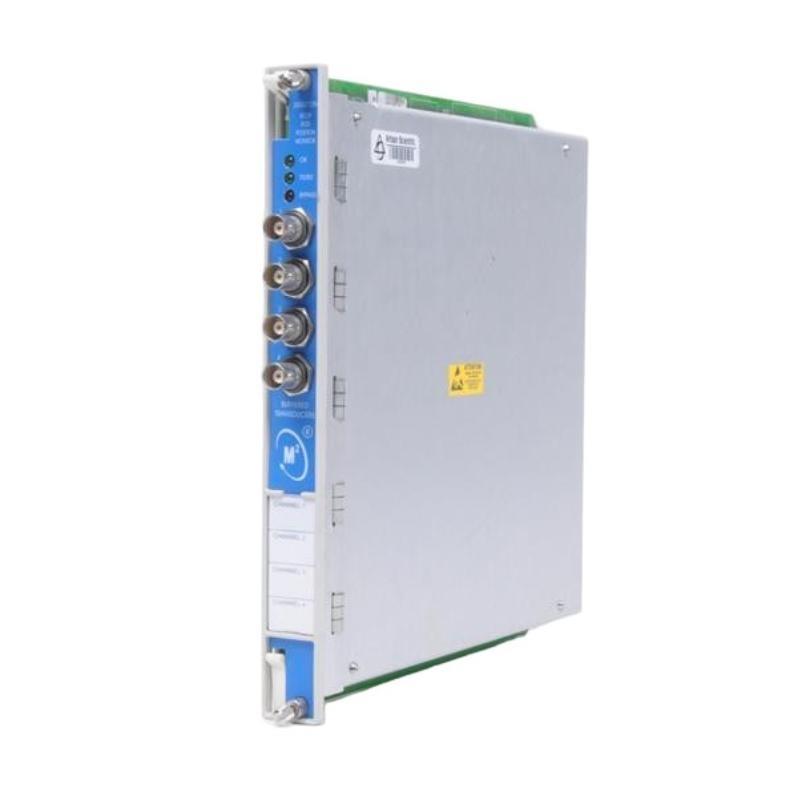

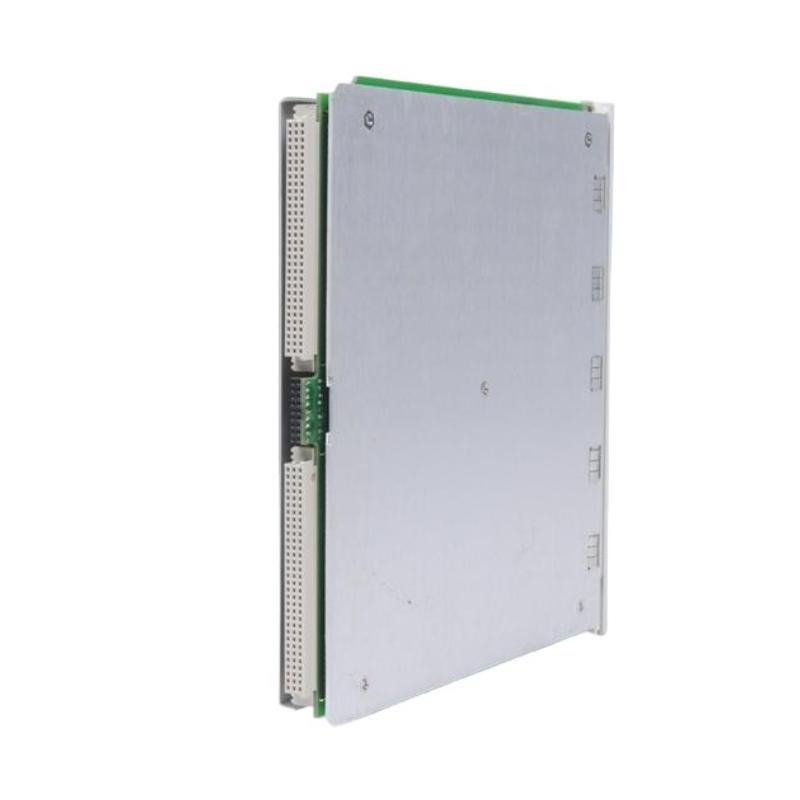

Bently Nevada 3500/72 140734-08 3500 Series Recip Rod Position Monitor 12-Month Warranty

Brand：Bently Nevada

Item No.：3500/72 140734-08

Product Type：Recip Rod Position Monitor

Product Origin：USA

Dimensions：241.3 x 24.4 x 241.8 mm

Weight：0.91 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Compliant import, support for testing, and fast response to after-sales service

Product inventory is continuously updated, and order needs are quickly responded to. Welcome to call for consultation!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What types of measurements can the 3500/72M provide?
The module provides rod position magnitude, rod angle, crank angle, peak-to-peak amplitude, gap, 1X and 2X amplitudes, instantaneous piston position, and hyper-compressor displacement.

How is the module configured for a specific compressor application?
Configuration is performed using the 3500 Rack Configuration Software, allowing selection of channel type, alarm setpoints, and measurement parameters.

What is the recommended maintenance routine for this module?
It is recommended to perform periodic channel verification and check LED indicators; modules are not field-repairable.

What input transducers are compatible with this monitor?
The monitor is compatible with Bently Nevada proximity probes, including the 3300 XL series, which provide linear displacement signals.

How accurate are the rod position measurements?
The system provides accuracy of ±0.1% of full scale across its configured measurement range.

Can the 3500/72M detect hyper-compressor operation anomalies?
Yes, the module can measure hyper-compressor displacement and provide early warning for abnormal operation.

What are the power requirements for the 3500/72M?
The module operates on -24 VDC with a nominal power consumption of 7.7 watts.

What environmental conditions must be considered for installation?
Standard 3500 series rack environmental conditions apply, including ambient temperature, humidity, and vibration limitations.
