Yokogawa SAI143-H53/STA4D-00 16-Channel Analog Input Module Fast Shipping!

Yokogawa SAI143-H53/STA4D-00 16-Channel Analog Input Module Fast Shipping!

Name: Yokogawa SAI143-H53/STA4D-00 16-Channel Analog Input Module Fast Shipping!
Brand: Yokogawa Electric
SKU: 4273
Availability: InStock
Rating: 5.0 (1 reviews)

0.0

Points

100% Original and Authentic.
100% Brand New, Ready to ship.
Support Refund, 7X24h Service.
1-Year Warranty on All Products.

Today's Discount: 90% 00 : 00 : 00

Low stock: 61 left

41%

Add to cart

Product Details

Yokogawa Electric has over 100 years experience in the measurement and control business,it produces the first DCS in the world. The main system is CENTUM CS 3000 R3.

Product Introduction

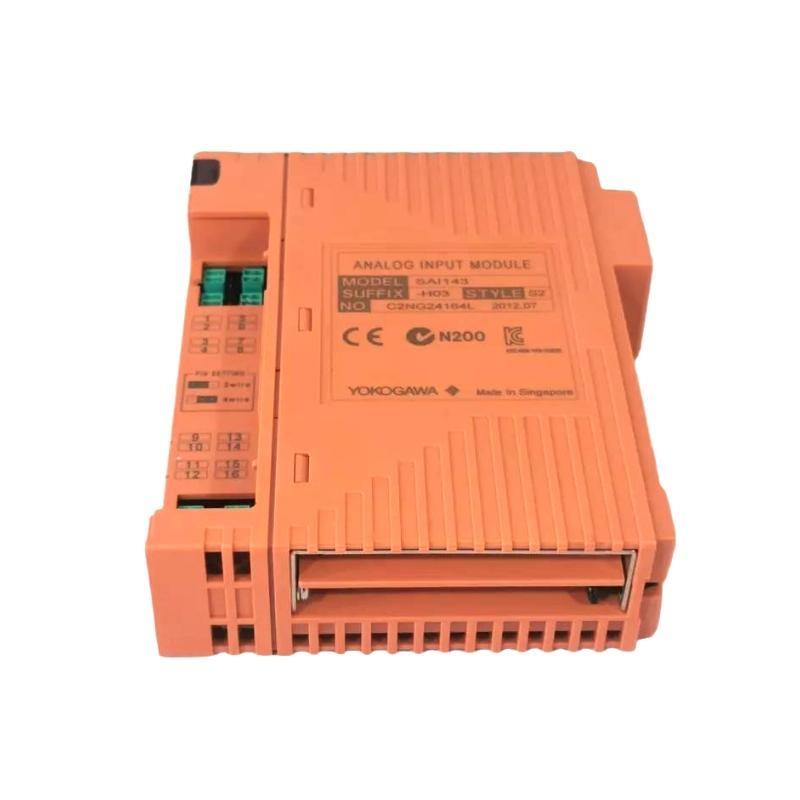

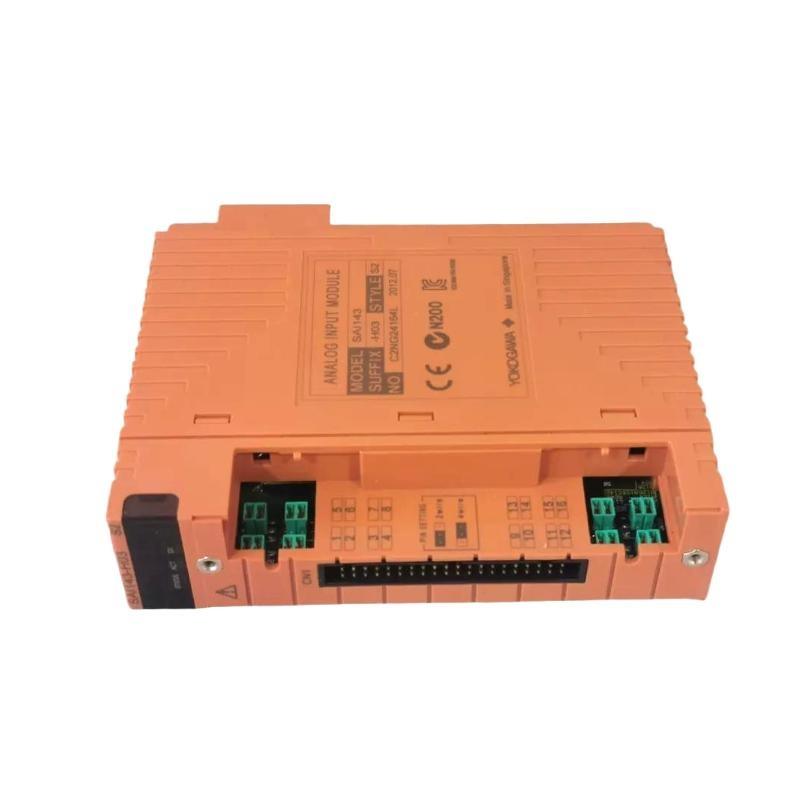

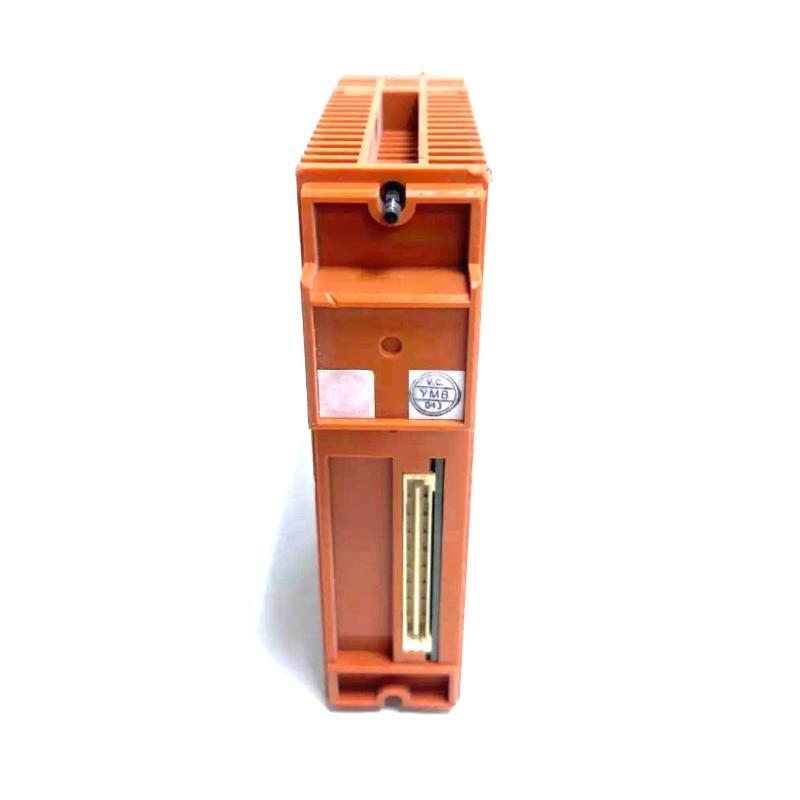

Yokogawa SAI143-H53/STA4D-00 16-Channel Analog Input Module Fast Shipping!

Brand：Yokogawa

Item No.：SAI143-H53/STA4D-00

Product Type：Analog Input Module

Product Origin：Japan

Dimensions：130 x 107.5 x 32.8 mm

Weight：0.34 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original import channel supply, support testing instructions, worry-free after-sales

A wide range of spot models, support quick docking of procurement needs, welcome to inquire!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the maximum number of input channels supported by the SAI143-H53 module?
The SAI143-H53 supports 16 analog input channels with individual channel isolation.

Can the SAI143-H53 module be used in dual-redundant configuration?
Yes, it can be made dual-redundant using the STA4D-00 pressure clamp terminal block. An additional module of the same specification is required without option codes.

What is the rated accuracy of the SAI143-H53 module?
The rated accuracy is ±16 µA for an input range of 0.05 to 23 mA.

How is the transmitter power supplied and controlled?
The module supplies 16.15 V minimum to 26.4 V maximum with a 25 mA current limit. Transmitter power can be turned ON/OFF simultaneously for all 16 channels in 2-wire setting.

What type of HART communication does this module support?
The module supports one HART device per channel with serial half-duplex communication at 1200 ±2 bps, using FSK modulation and HART Protocol Revision 5.7.

How is the module connected to field devices?
Connection is via pressure clamp terminal, MIL cable, or dedicated signal cable.

What are the environmental restrictions for high-density installations?
For SAI143-HC modules used at ambient temperatures above 60°C, the number of usable input channels may be restricted. Refer to the ProSafe-RS I/O module outline documentation.

What is the maximum voltage the module can withstand between input and system?
The module can withstand 1.5 kV AC for 1 minute between input signal and system, or 500 V AC when using the dedicated signal cable.
