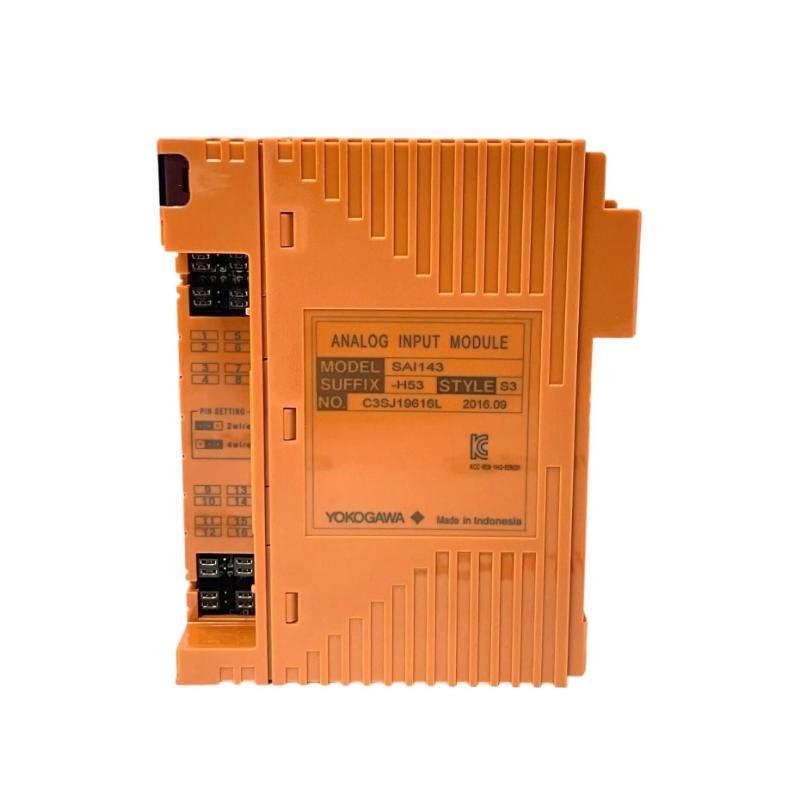

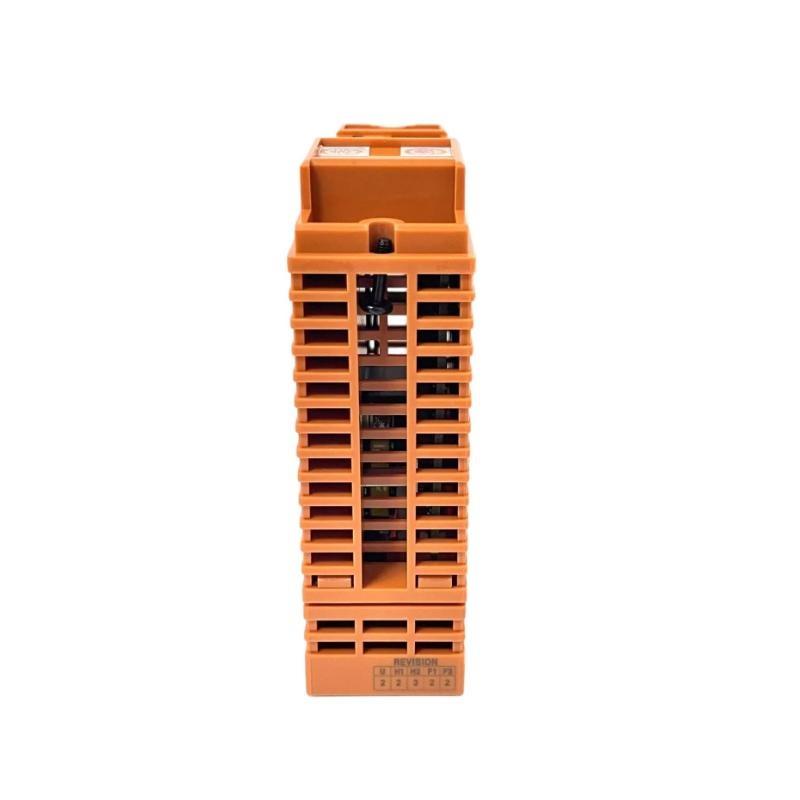

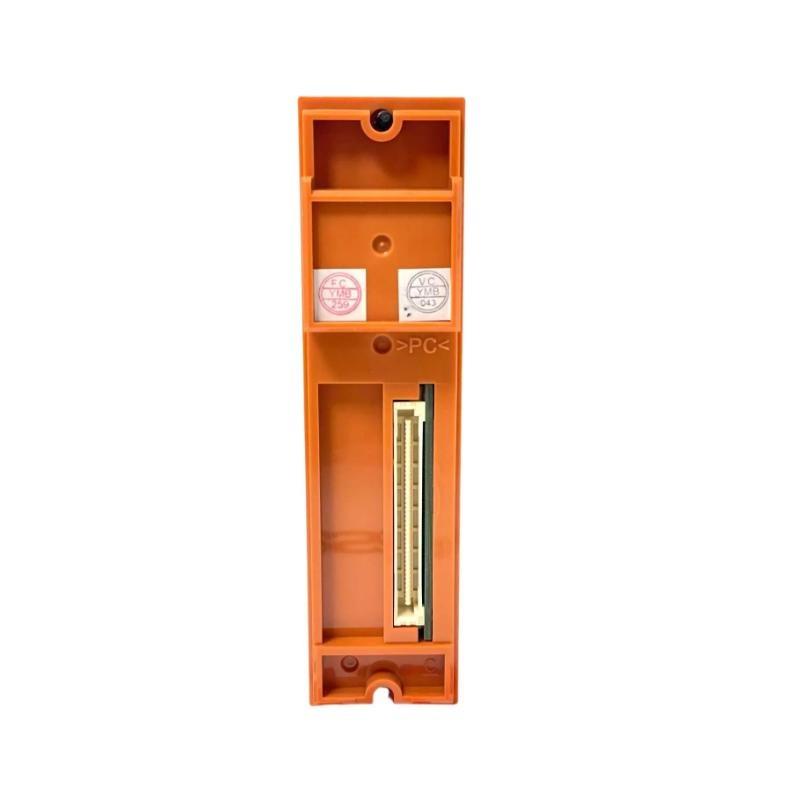

Name: Yokogawa SAI143-H53 S3 16-Channel Analog Input Module 12-Month Warranty
Brand: Yokogawa Electric
SKU: 4277
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

Yokogawa Electric has over 100 years experience in the measurement and control business,it produces the first DCS in the world. The main system is CENTUM CS 3000 R3.

Product Introduction

Yokogawa SAI143-H53 S3 16-Channel Analog Input Module 12-Month Warranty

Brand：Yokogawa

Item No.：SAI143-H53 S3

Product Type：Analog Input Module

Product Origin：Japan

Dimensions：130 x 107.5 x 32.8 mm

Weight：0.34 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

The source of goods is regular, the test instructions can be coordinated, and the after-sales service continues to follow up

Tens of thousands of models are in stock, and the spot is shipped quickly. Welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the maximum number of input channels for the SAI143-H53 S3?
The module supports 16 isolated input channels.

Can the SAI143-H53 S3 module operate in dual-redundant configurations?
Yes, dual redundancy is available but requires an additional module with the same specifications.

What is the rated accuracy of the module for low current inputs?
The rated accuracy is ±16 µA for input range 0.05 to 23 mA.

How is the transmitter power supplied and controlled?
The module provides 16.15–26.4 V supply with a 25 mA limit and allows ON/OFF control for all channels in 2-wire mode.

What is the input impedance of the module during normal operation?
During Power-ON, it is 250 Ω plus the voltage drop in the internal protection circuit (max 0.45 V).

What communication protocol does the module support for HART devices?
It supports HART Protocol Revision 5.7 with one HART device connectable per channel.

What are the temperature and environmental limitations of the module?
Style code S3 supports -20 to 70 °C; note input channel restrictions may apply above 60 °C.

Which connection methods are supported for the module?
Pressure clamp terminal, MIL cable, and dedicated signal cable are supported.
