Product Details

Honeywell Experion PKS ( C200, C300 ) is one of the most important DCS system. Original New Control processor, Control Interface, Redundancy Module, I/O Link Interface Module, PM I/O, FTA, FSC Module, UCN Board are provided

Product Introduction

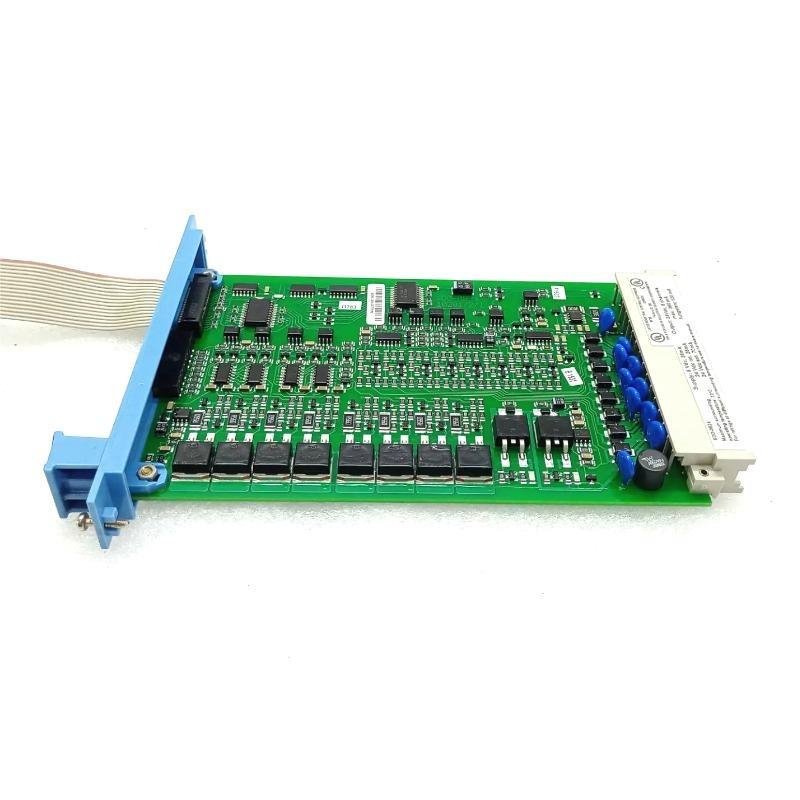

Honeywell FS-SDO-0824 Safe Digital Output Module Unbelievable Prices!

Brand：Honeywell

Item No.：FS-SDO-0824

Product Type：Safe Digital Output Module

Product Origin：USA

Dimensions：20.32 x 133.35 x 156 mm

Weight：0.7 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

The source of goods is regular, the test instructions can be coordinated, and the after-sales service continues to follow up

The product inventory is continuously updated, and the order needs are quickly responded to. Welcome to call for consultation!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What types of loads can the FS-SDO-0824 safely drive?
It can drive resistive loads like lamps and inductive loads such as solenoids up to 13 W per channel, with suppression diodes included for inductive loads.

How does the module ensure safe operation for each output?
Each output, including its suppression diode, is fully tested. The module also features secondary means of de-energizing to maintain safety even if the primary function fails.

What is the purpose of the secondary means of de-energizing (SMOD)?
SMOD allows the watchdog and processor to de-energize outputs independently of the application logic, enhancing functional safety.

How are the outputs organized for diagnostic purposes?
The eight outputs are split into two groups of four, and each group is independently monitored during the configured Diagnostic Test Interval.

What tests are performed during the Diagnostic Test Interval?
The module tests the ability to de-energize each output, de-energize the group, detect crosstalk, and verify suppression diode function.

What is the maximum current each output can handle?
Each output can handle up to 0.55 A safely, corresponding to a maximum load of 13 W.

Can this module be used in SIL-rated safety systems?
Yes, the fully tested outputs and secondary de-energizing features make it suitable for SIL-compliant applications.

What are the physical dimensions and weight of the FS-SDO-0824?
The module measures 20.32 × 133.35 × 156 mm and weighs 0.7 kg.
