Honeywell Experion PKS ( C200, C300 ) is one of the most important DCS system. Original New Control processor, Control Interface, Redundancy Module, I/O Link Interface Module, PM I/O, FTA, FSC Module, UCN Board are provided

Product Introduction

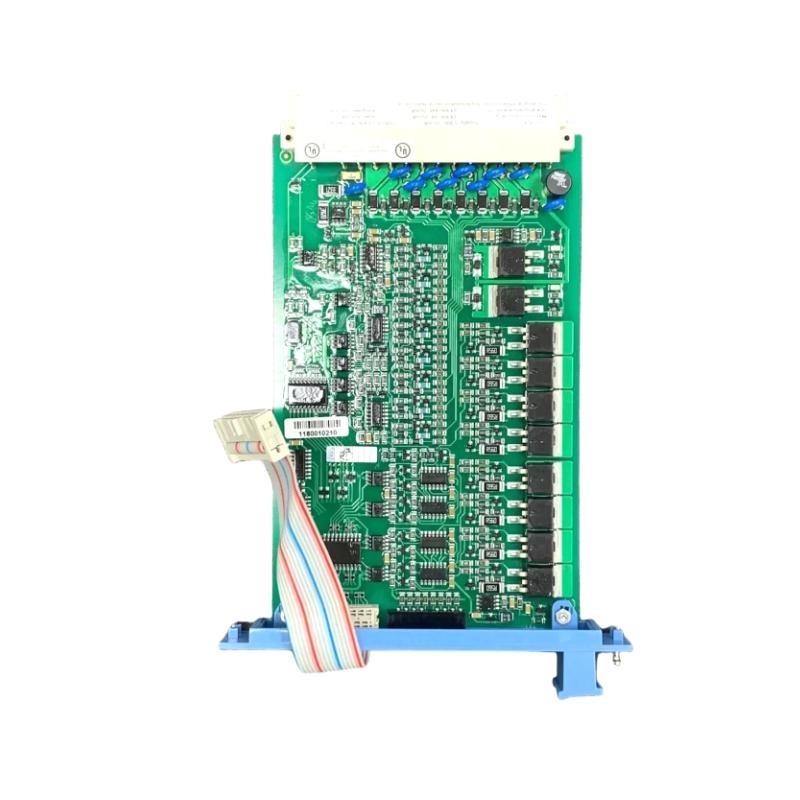

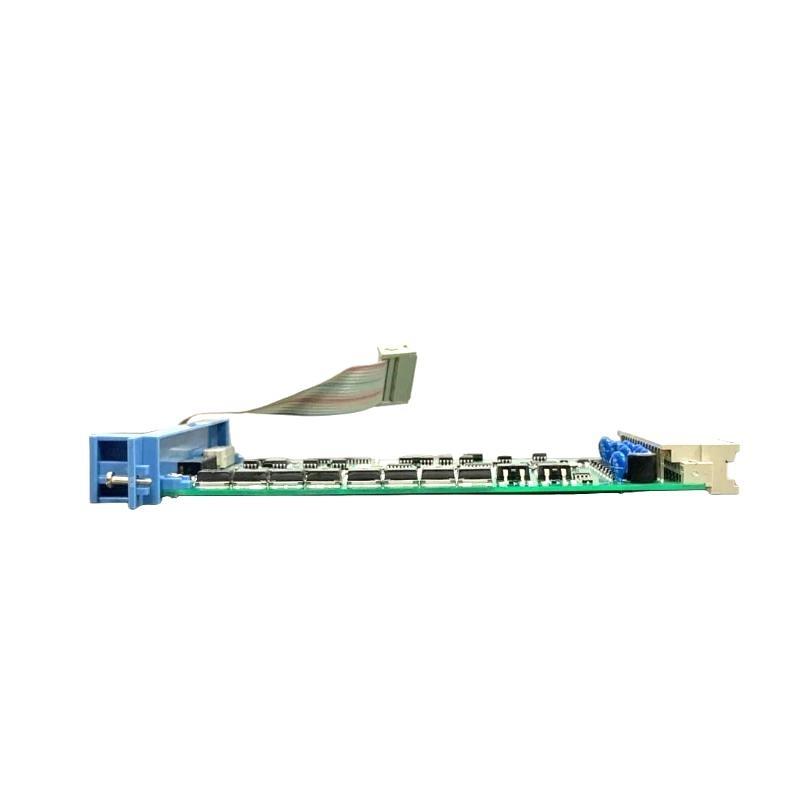

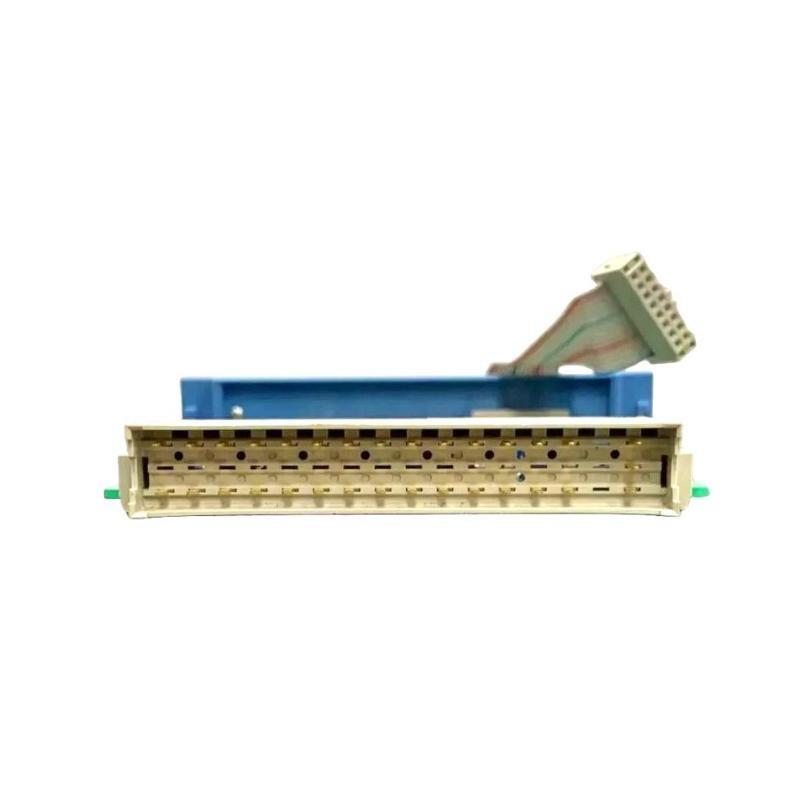

Honeywell FS-SDO-0424 Safe Digital Output Module 12-Month Warranty

Brand：Honeywell

Item No.：FS-SDO-0424

Product Type：Safe Digital Output Module

Product Origin：USA

Dimensions：20.32 x 133.35 x 156 mm

Weight：0.7 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

This product is imported from overseas, supports test report assistance, and smooth after-sales docking

The model covers a wide range and the delivery is efficient. Welcome to contact us for information!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What types of loads can the FS-SDO-0424 safely drive?
The module can drive resistive loads such as lamps and inductive loads such as solenoids. Suppression diodes are included for inductive loads.

How does the module ensure safe operation during diagnostic tests?
During the configured Diagnostic Test Interval, the module checks output de-energization, group de-energization via SMOD, crosstalk, and suppression diode functionality.

What is the purpose of the Secondary Means of De-energizing (SMOD)?
SMOD allows the watchdog and processor to de-energize outputs independently of the application function, providing an additional safety layer.

What is the maximum total load for the FS-SDO-0424?
The maximum module load is 6 A across all channels.

Can the module be used in SIL-rated safety applications?
Yes, the outputs are fully tested including suppression diodes, making it suitable for safe applications.

How are the output channels grouped?
The four output channels are split into two groups, with each group having its own secondary de-energizing mechanism.

What happens if an output fails during operation?
The module’s diagnostic checks will detect output failures, crosstalk, or diode issues, allowing the SMOD to safely de-energize the affected outputs.

What is the physical size and weight of the module?
The module dimensions are 20.32 x 133.35 x 156 mm, and it weighs 0.7 kg.
