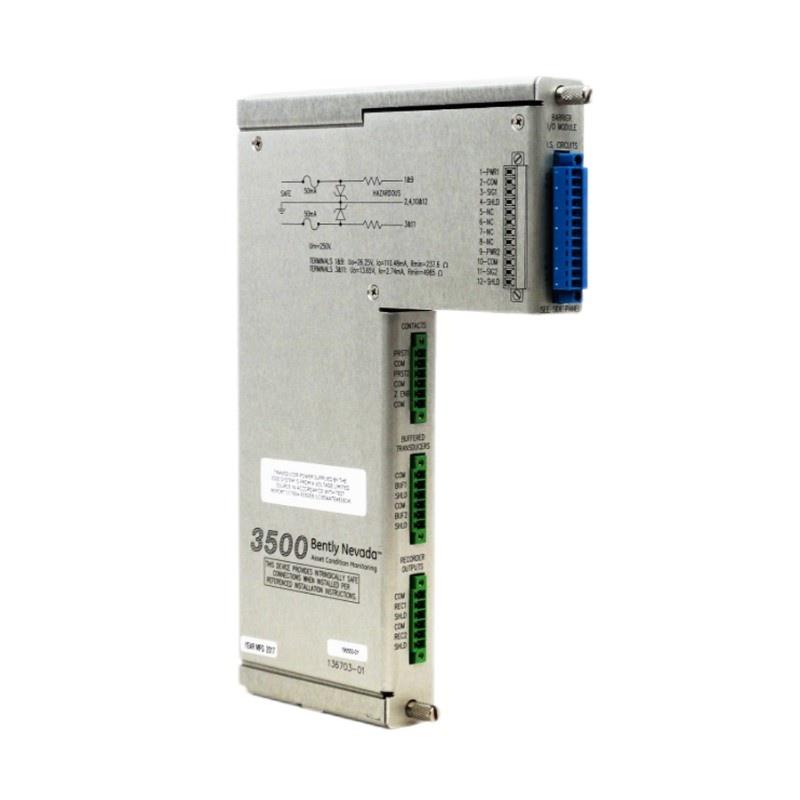

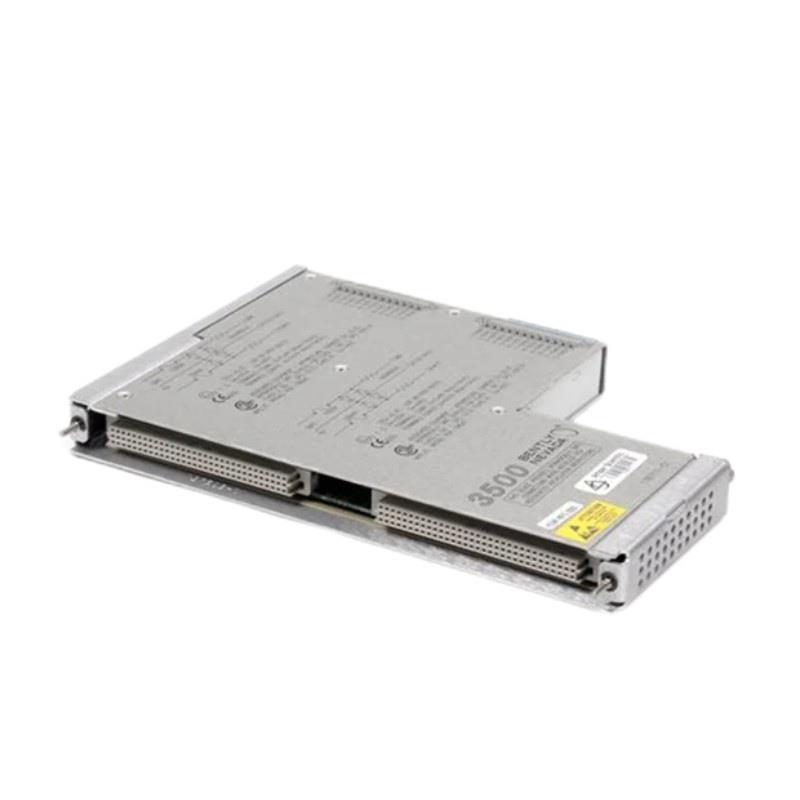

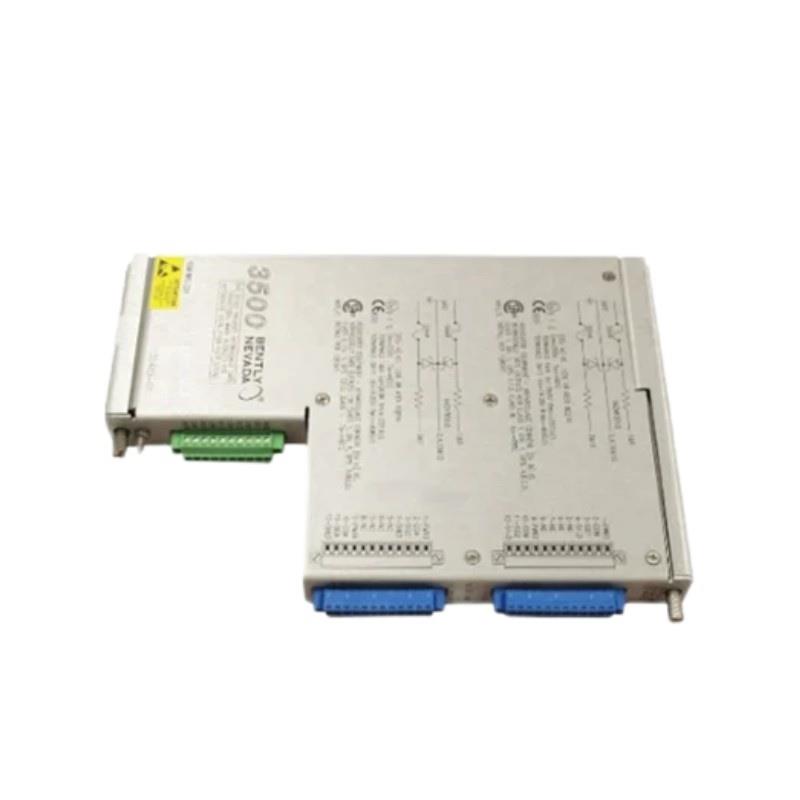

Bently Nevada 3500/61 136711-02 3500 Series RTD/TC I/O Module 12-Month Warranty

FAQ

What types of temperature sensors are compatible with the 3500/61 136711-02 module?
The module supports both RTD (2-wire, 3-wire, and 4-wire) and a variety of thermocouple types including Type J, K, T, E, R, S, and B.

How does the module ensure measurement accuracy in industrial environments?
It utilizes high-resolution 16-bit A/D conversion, internal cold junction compensation, and channel-to-channel isolation to minimize measurement error.

Can this module be hot-swapped within the 3500 rack?
Yes, the module is designed for hot-swappable installation, allowing replacement without shutting down the rack system.

What is the primary industrial application of this module?
It is mainly used for continuous temperature monitoring in turbines, compressors, and other rotating machinery where precise thermal condition tracking is critical.

How is the data from the module transmitted to the control system?
Data is transferred via the internal 3500 rack backplane to the associated communication gateway modules for integration into plant control systems.

What measures are taken for electrical isolation in this module?
The module provides 250 Vrms isolation between channels and between channels and ground, preventing interference from ground loops.

Does the module require external signal conditioning?
No, it includes built-in signal conditioning for both RTD and thermocouple inputs, eliminating the need for external hardware.

What certifications does the module carry for hazardous area use?
It complies with CE, CSA, and ATEX Zone 2 standards, making it suitable for hazardous industrial environments.
