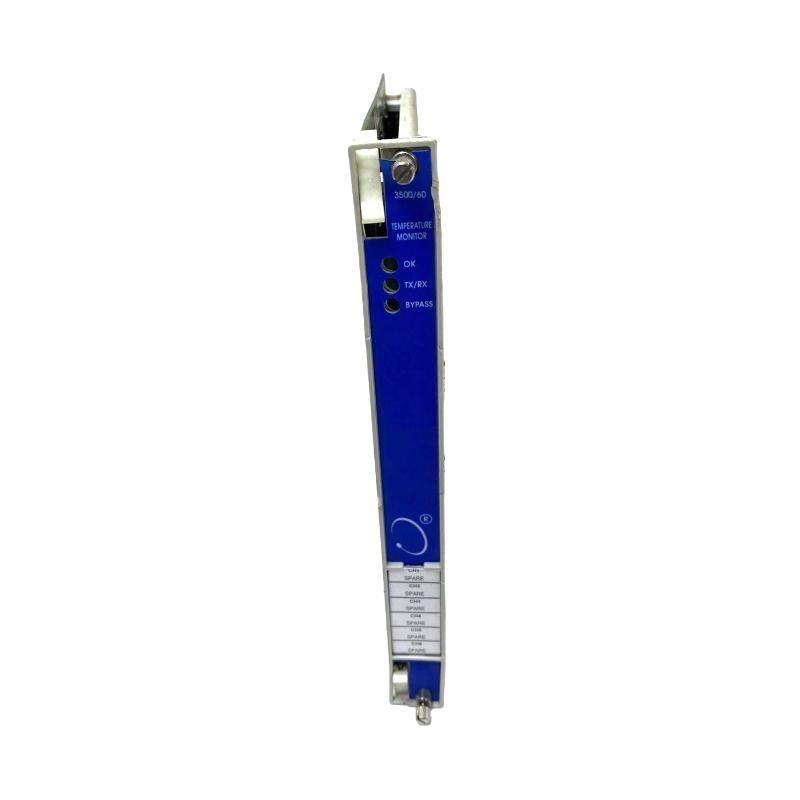

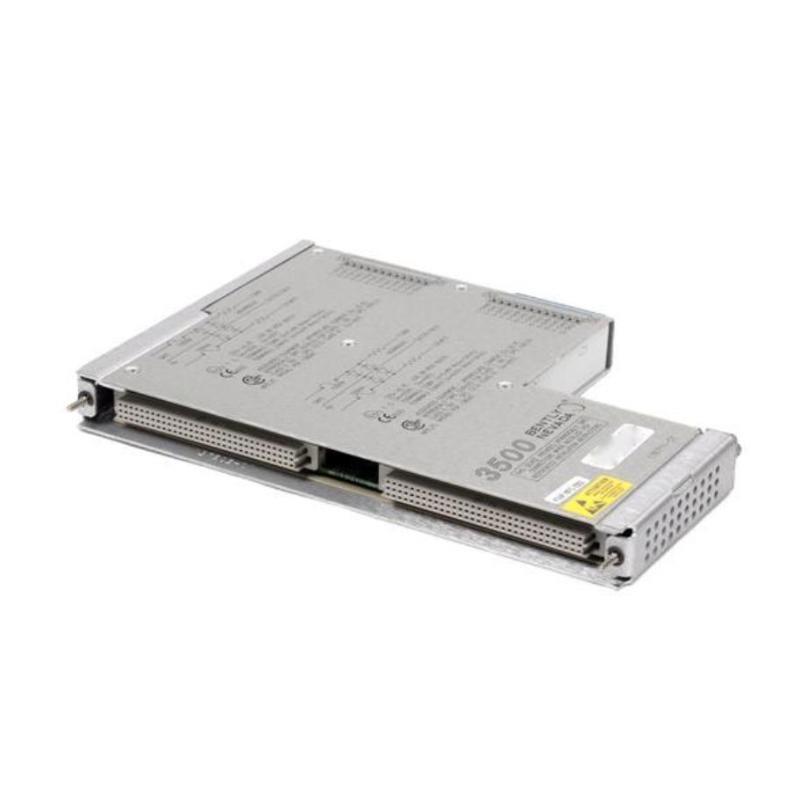

Bently Nevada 3500/60 163179-01+136711-01 3500 Series Temperature Module 30-Day Returns！

FAQ

What is the primary function of the Bently Nevada 3500/60 Temperature Module?
It provides continuous temperature monitoring for rotating machinery and other critical equipment, integrating with the 3500 Series system for alarm and shutdown functions.

Which sensor types are compatible with this module?
It supports multiple thermocouple types (E, J, K, T, B, R, S) and RTDs in 2-, 3-, and 4-wire configurations.

How many channels does the module provide, and are they independent?
The module offers 4 fully independent input channels, each configurable for specific sensor types.

What is the measurement accuracy for temperature inputs?
The accuracy is ±0.1% of full scale, ensuring high reliability in industrial monitoring applications.

How are alarms configured in the module?
Each channel supports high, low, and rate-of-change alarm settings, programmable via the 3500 Configuration Software.

Is the module hot-swappable within the 3500 rack?
Yes, it is designed for hot-swapping without interrupting other rack operations, minimizing downtime.

What environmental conditions can the module withstand?
It operates in temperatures from -30°C to +65°C and can be stored between -40°C and +85°C.

Does the module require external power?
No, it draws power directly from the 3500 rack backplane, with consumption below 5 W.
